Component Inspection

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "OFF". (Stay for at least 5 seconds.)
  2. Disconnect transfer terminal cord assembly harness connector.
  3. Check resistance between transfer terminal cord assembly terminals 4 and 5.
    1. 4 - 5: Approx. 22.8 - 25.2 Ω
  4. If NG, replace the 2-4WD solenoid. Refer to "LOCATION OF ELECTRICAL PARTS ".

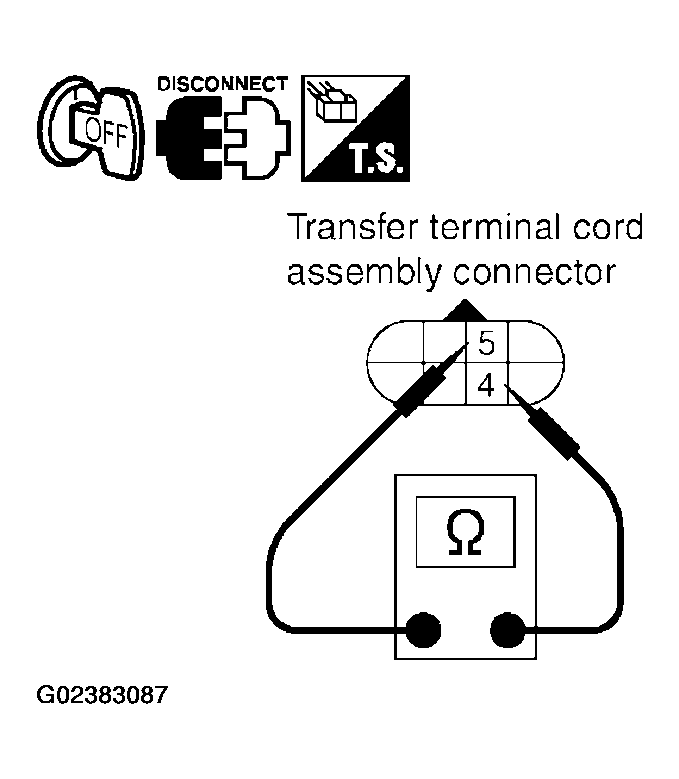

    Fig 1: Checking Resistance Between Transfer Terminal Cord Assembly Terminals 4 And 5
    G02383087Courtesy of NISSAN MOTOR CO., U.S.A.
