Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply ATF to the O-ring and install it to the transfer motor.
    CAUTION: Do not reuse O-rings.
  2. Fit the double-flat end of the transfer motor shaft into the slot of the sub-oil pump assembly. Then tighten to the specified torque. Refer to "COMPONENTS ".
    CAUTION: Be sure to install connector bracket.
  3. Install the air breather hose to the transfer motor. Refer to "REMOVAL AND INSTALLATION ".
  4. Connect the transfer motor connector.
  5. Check the transfer fluid. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".
  6. Start the engine for one minute. Then stop the engine and recheck the transfer fluid. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".

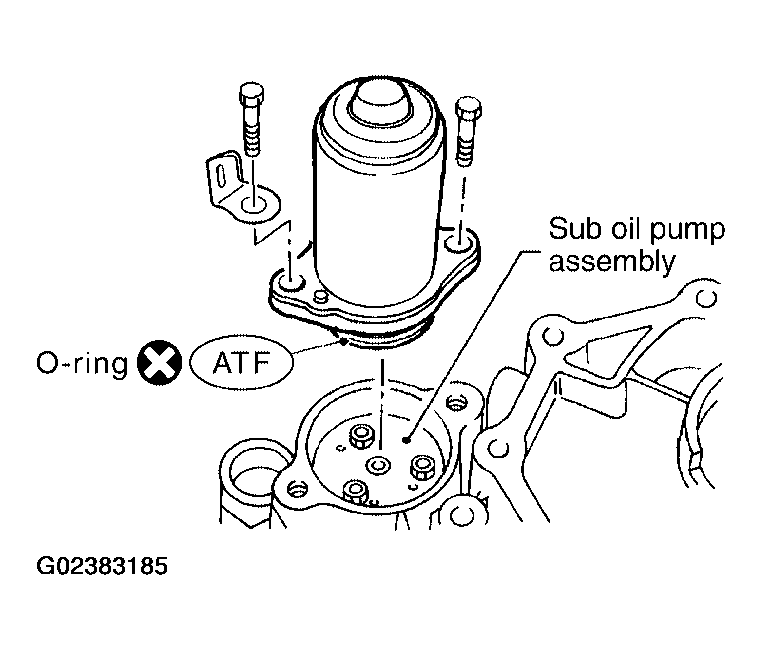

    Fig 1: Applying ATF To O-Ring And Fitting Transfer Motor Shaft Into The Slot Of Sub-Oil Pump Assembly
    G02383185Courtesy of NISSAN MOTOR CO., U.S.A.
