Rear Case

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear case bolts.

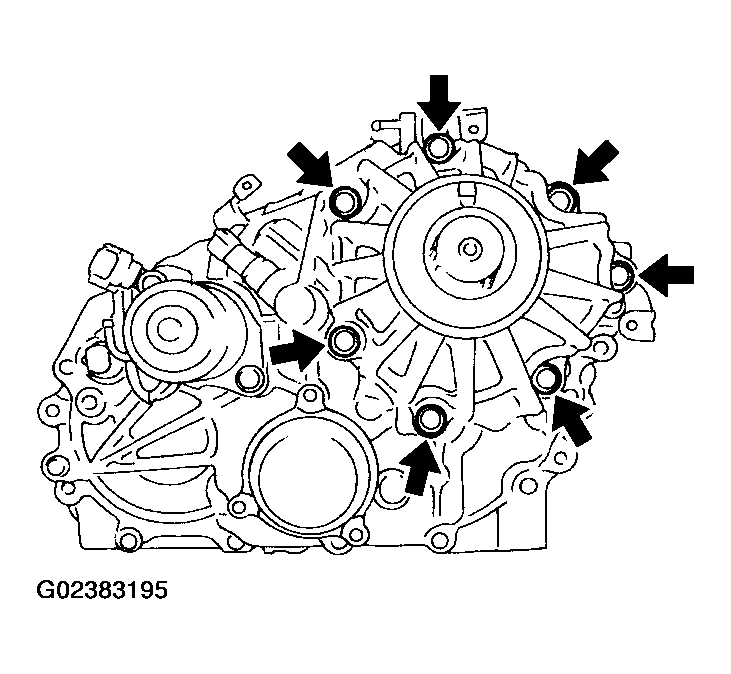

Fig 1: Identifying Rear Case Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear case from the center case.

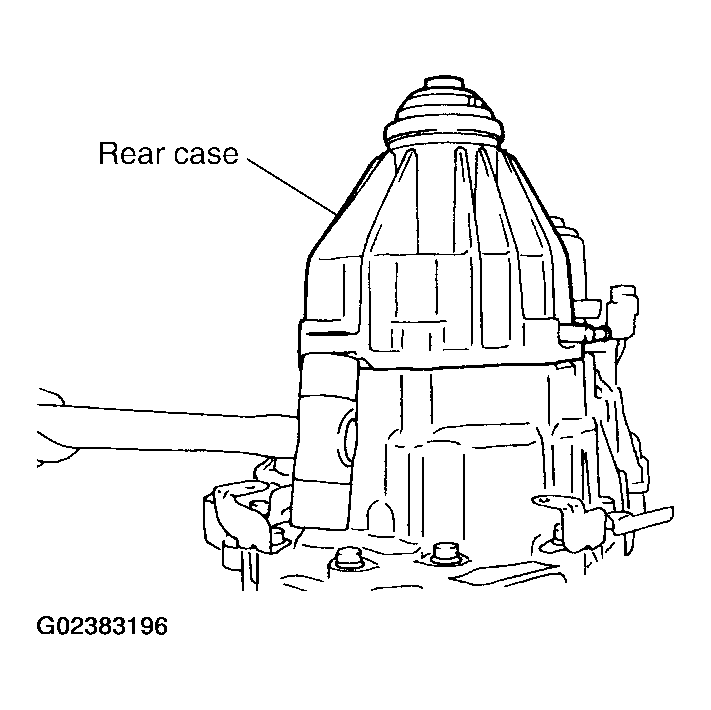

Fig 2: Identifying Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the dust cover, using suitable tool.

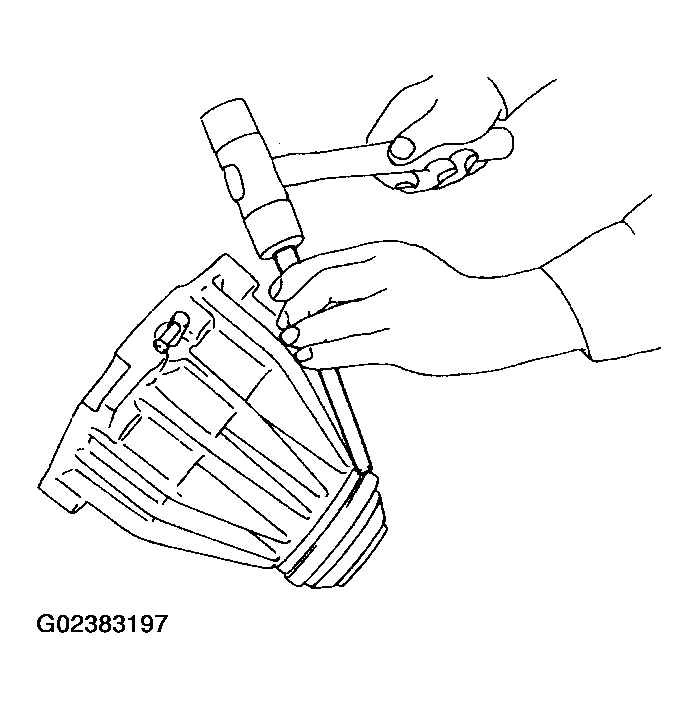

Fig 3: Removing Dust Cover Using Suitable Tool
Courtesy of NISSAN MOTOR CO., U.S.A.

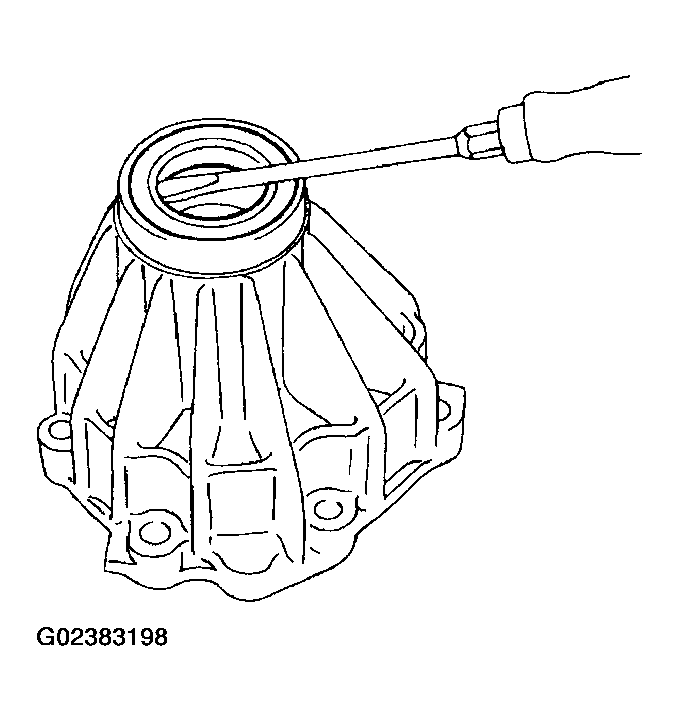

Remove the oil seal, using suitable tool.
CAUTION: Do not damage rear case.
Remove the air breather.

Fig 4: Removing Air Breather
Courtesy of NISSAN MOTOR CO., U.S.A.
