Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the companion flange. Refer to "REMOVAL AND INSTALLATION ".
  3. Remove the transfer control device from the transfer assembly. Refer to "REMOVAL AND INSTALLATION ".
  4. Remove the side oil seal.
    CAUTION: Do not damage shift cross.

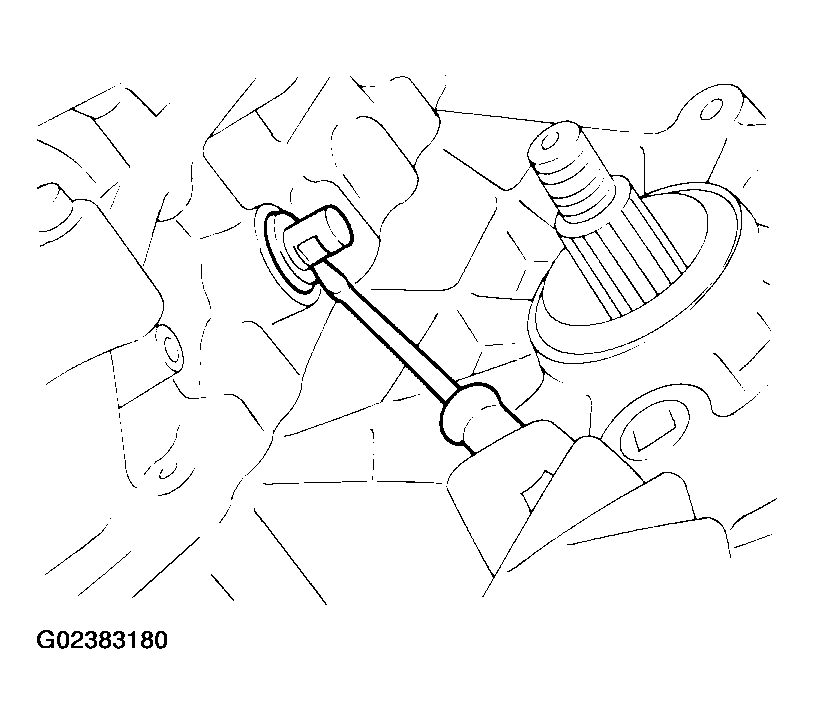

    Fig 1: Removing Side Oil Seal
    G02383180Courtesy of NISSAN MOTOR CO., U.S.A.
