Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the side oil seal until it is flush with the end face of case, using Tool.
    1. Tool number: ST22360002 (J-25679-01)
    CAUTION:
    • Do not reuse oil seal.
    • Apply petroleum jelly to oil seal.
  2. Install the transfer control device to the transfer assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Install the companion flange. Refer to "REMOVAL AND INSTALLATION ".
  4. Install the front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".

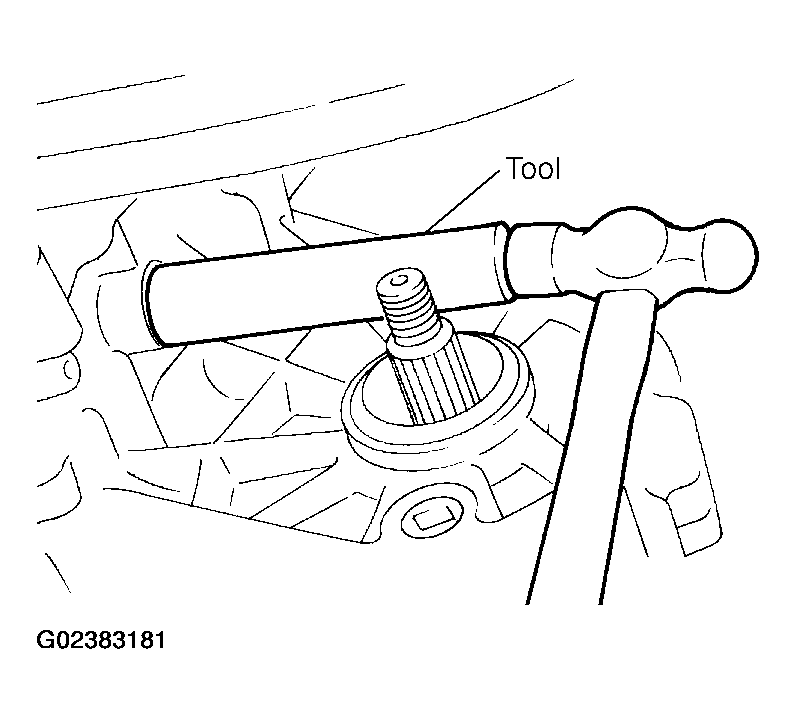

    Fig 1: Installing Side Oil Seal Using Tool (ST22360002)
    G02383181Courtesy of NISSAN MOTOR CO., U.S.A.
