Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Partially drain the transfer fluid. Refer to "DRAINING ".
Remove the rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Remove the dust cover from the rear case.
CAUTION: Do not damage the rear case.

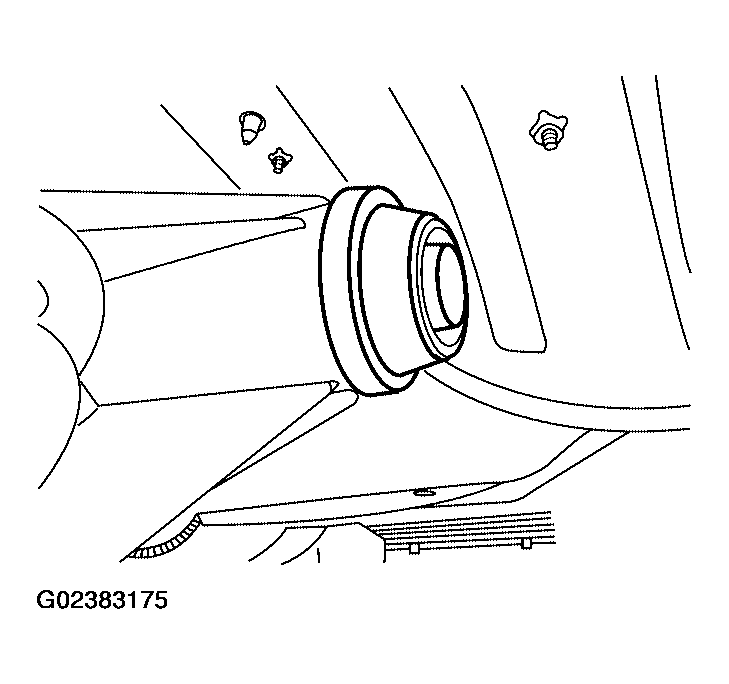

Fig 1: Removing Dust Cover From Rear Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the rear oil seal from the rear case, using Tool.
CAUTION: Do not damage the rear case.
1. Tool number: ST33290001 (J-34286)

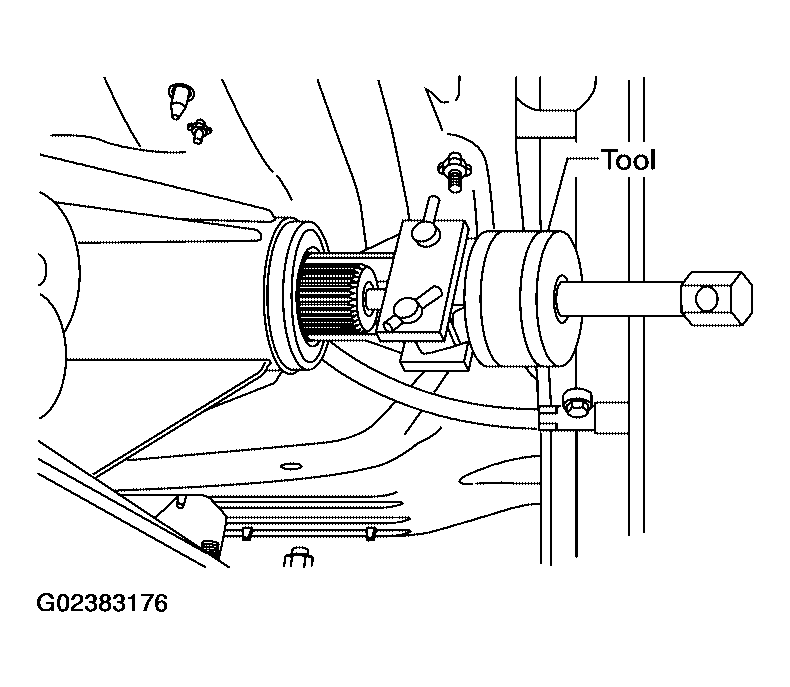

Fig 2: Removing Rear Oil Seal From Rear Case Using Tool (ST33290001)
Courtesy of NISSAN MOTOR CO., U.S.A.
