Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil seal until it is flush with the end face of the rear case, using Tool.
1. Tool number: ST30720000 (J-25405)
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.

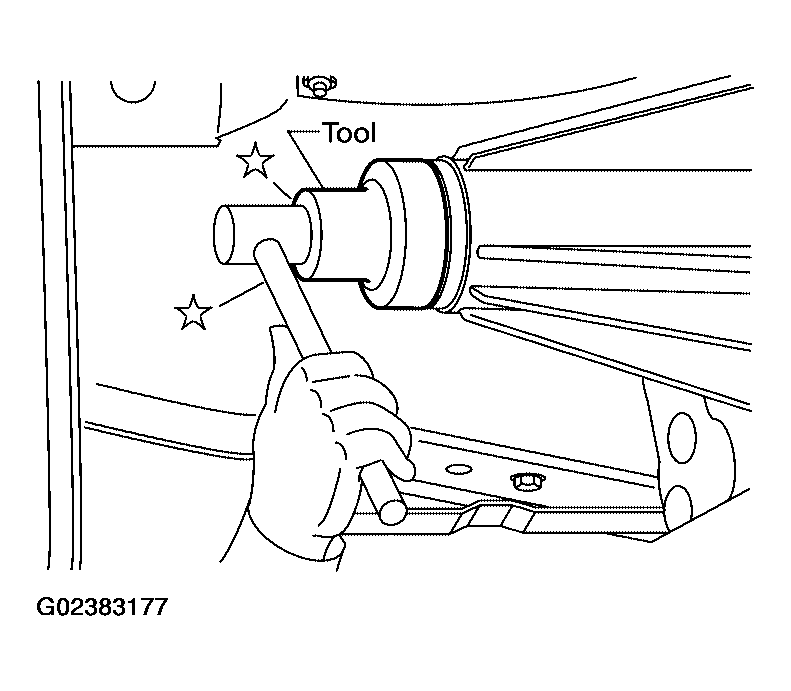

Fig 1: Installing Oil Seal Using Tool (ST30720000)
Courtesy of NISSAN MOTOR CO., U.S.A.
Apply petroleum jelly to the circumference of the new dust cover. Position the dust cover using the identification mark as shown.
CAUTION:
- Do not reuse dust cover.
- Position the identification mark at the position shown.

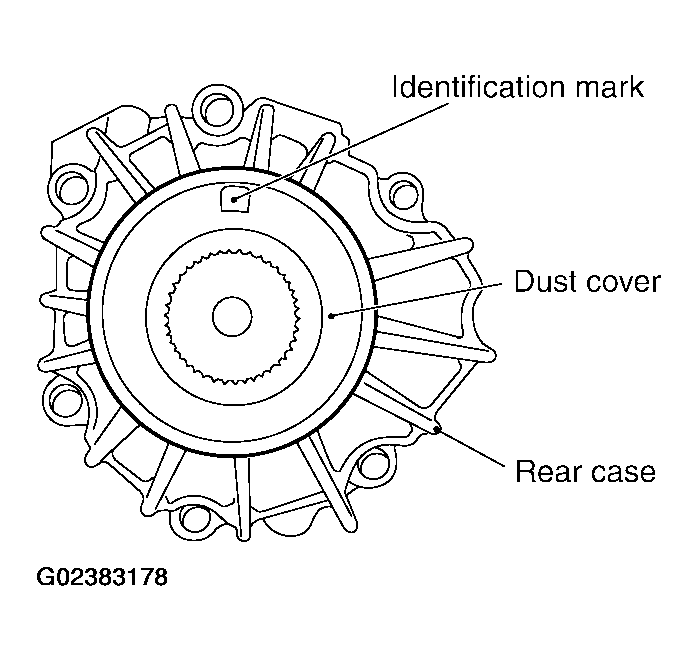

Fig 2: Locating Identification Mark Position
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the dust cover to the rear case, using Tool.
1. Tool number: KV40105310( - )
CAUTION:
- Do not reuse dust cover.
- Apply petroleum jelly to dust cover.
Install the rear propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Refill the transfer with fluid and check fluid level. Refer to "FILLING ".
Check the transfer for fluid leakage. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".

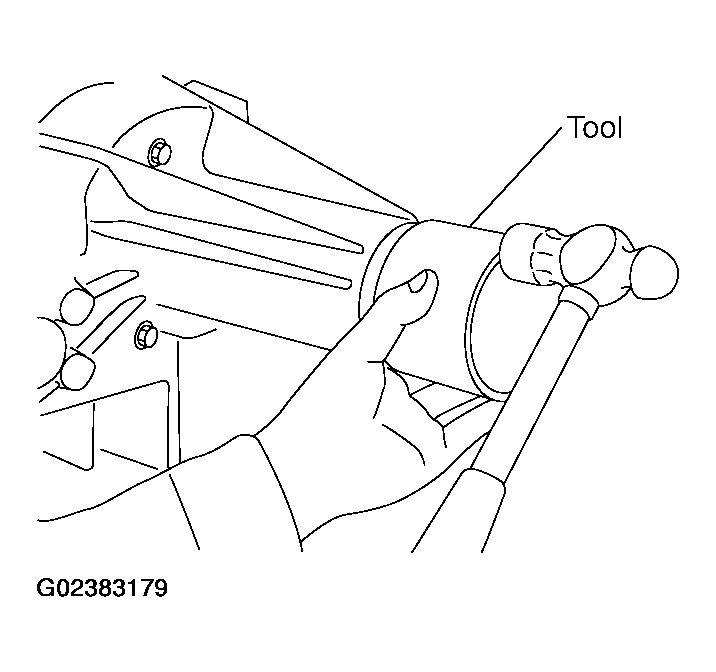

Fig 3: Installing Dust Cover To Rear Case Using Tool (KV40105310)
Courtesy of NISSAN MOTOR CO., U.S.A.
