Removal and Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil seal until it is flush with the end face of the front case, using Tool.
1. Tool number: KV38100500 ( - )
CAUTION:
- Do not reuse oil seal.
- Apply petroleum jelly to oil seal.

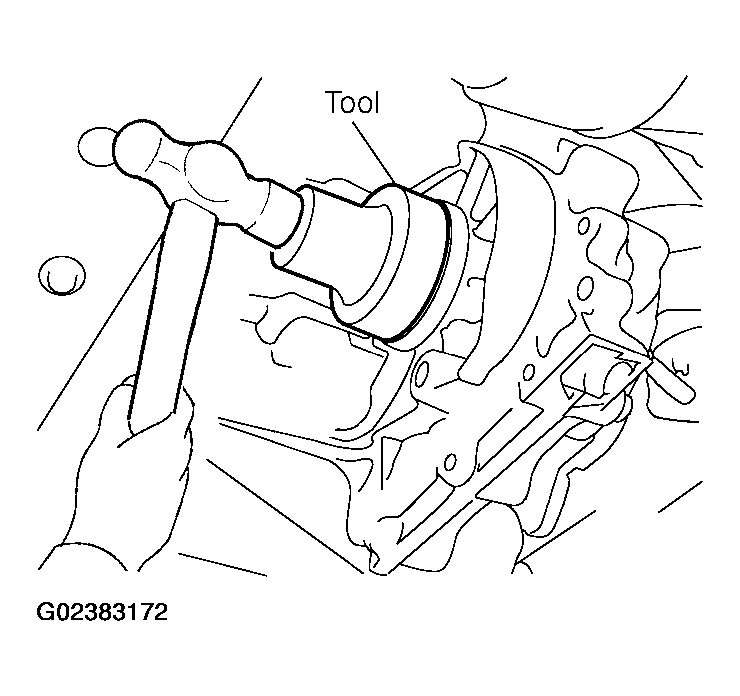

Fig 1: Installing Oil Seal Using Tool (KV38100500)
Courtesy of NISSAN MOTOR CO., U.S.A.
Align the matching mark of the front drive shaft with the matching mark of the companion flange, then install the companion flange.

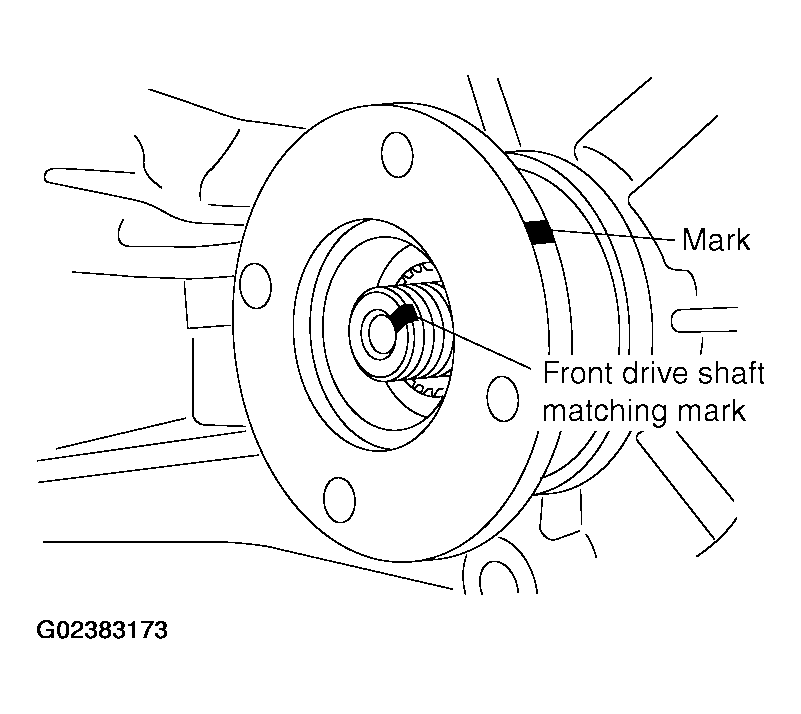

Fig 2: Aligning Matching Mark Of Front Drive Shaft With Matching Mark Of The Companion Flange
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the self-lock nut. Tighten to the specified torque, using Tool. Refer to "COMPONENTS ".
1. Tool number: KV40104000 ( - )
CAUTION: Do not reuse self-lock nut.
Install the front propeller shaft. Refer to "REMOVAL AND INSTALLATION ".
Refill the transfer with fluid and check fluid level. Refer to "FILLING ".
Check the transfer for fluid leakage. Refer to "FLUID LEAKAGE AND FLUID LEVEL ".

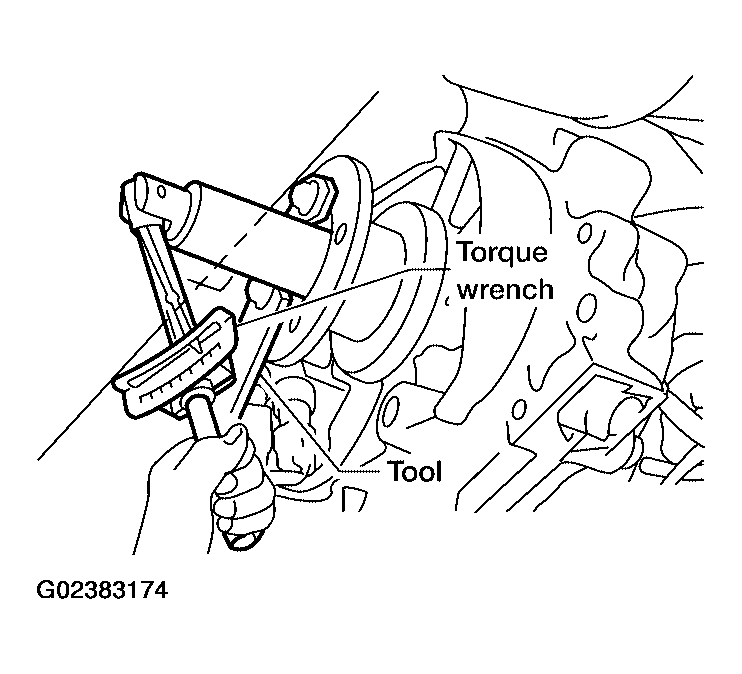

Fig 3: Tightening Self-Lock Nut To Specified Torque Using Tool (KV40104000)
Courtesy of NISSAN MOTOR CO., U.S.A.
