Stall Test Procedure

1. Inspect the amount of engine oil. Replenish the engine oil if necessary.
2. Drive for about 10 minutes to warm up the vehicle so that the A/T fluid temperature is 50 to 80°C (122 to 176°F). Inspect the amount of ATF. Replenish if necessary.

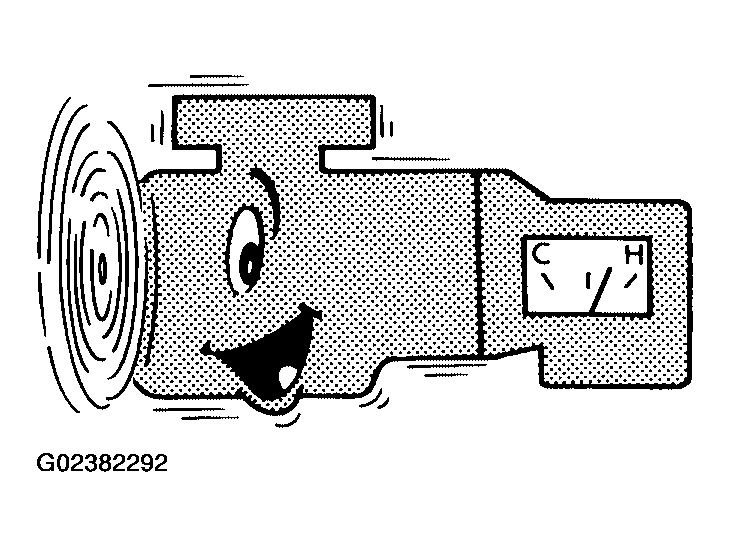

   Fig 1: Warming Engine Oil & A/T Fluid To Normal Temperature

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Securely engage the parking brake so that the tires do not turn.

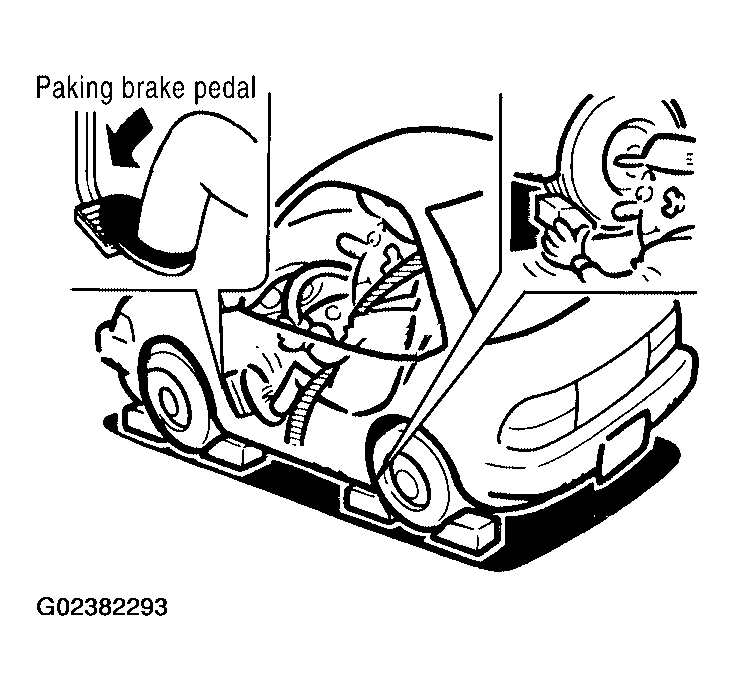

   Fig 2: Engaging Parking Brake

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Engine start, apply foot brake, and place selector lever in "D" position.
5. While holding down the foot brake, gradually press down the accelerator pedal.

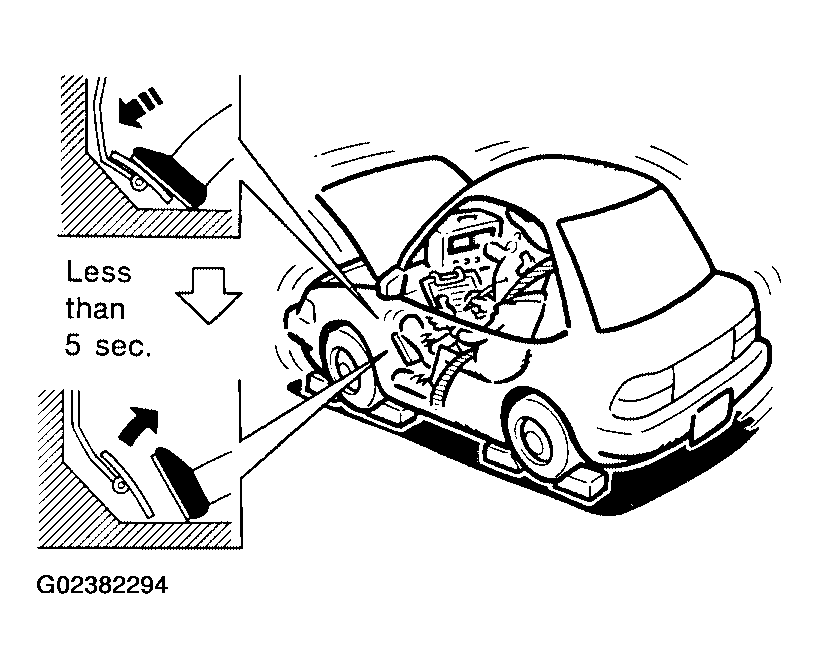

   Fig 3: Pressing Down On Accelerator Pedal

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Quickly read off the stall speed, then quickly remove your foot from the accelerator pedal.
   CAUTION: Do not hold down the accelerator pedal for more than 5 seconds during this test.
7. Move the selector lever to the "N" position.
8. Cool down the ATF.
   CAUTION: Run the engine at idle for at least one minute.


   1. Stall speed: 2,500 - 2,800 RPM

Judgement of Stall Test

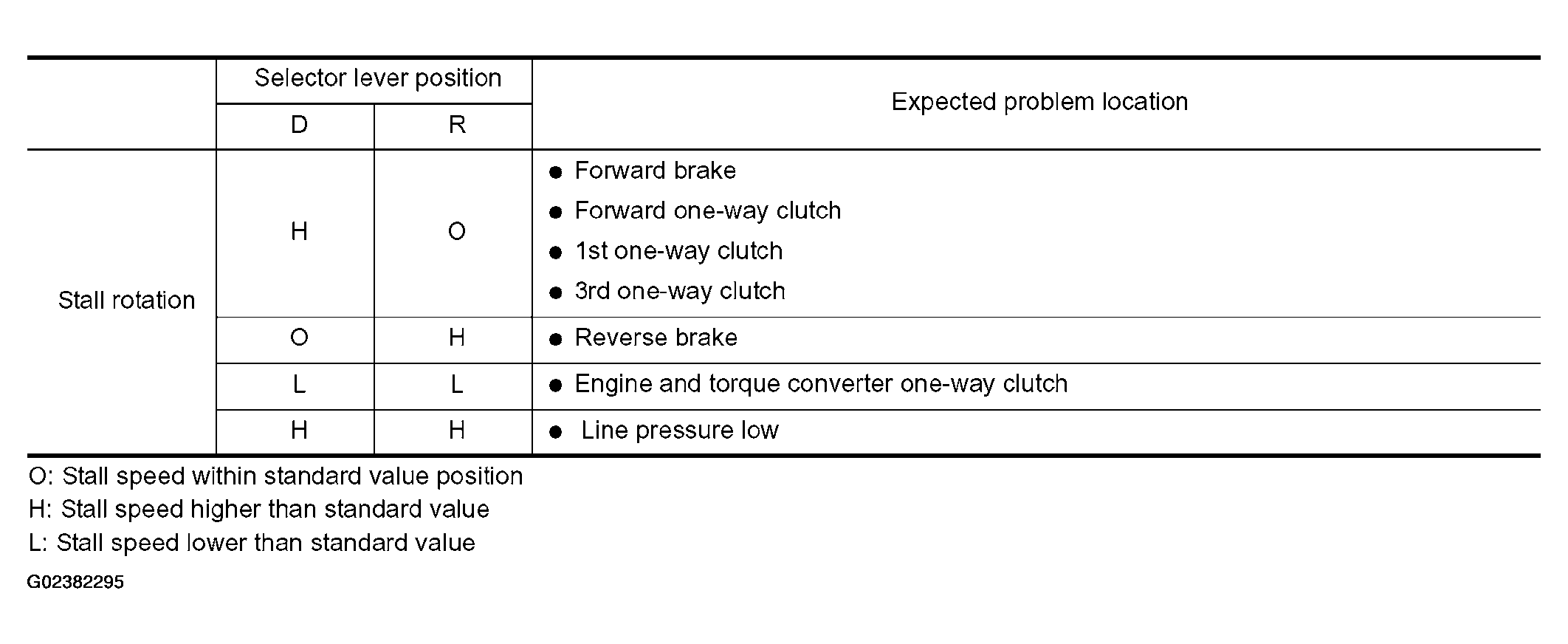

Fig 4: Stall Test Judgement Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Stall test standard value position
