Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

After performing "SELF-DIAGNOSTIC RESULT MODE ", place check marks for results on the "DIAGNOSTIC WORKSHEET ". Reference pages are provided following the items.

  1. Perform "CONSULT-II SETTING PROCEDURE" Refer to "CONSULT-II SETTING PROCEDURE ".
  2. Touch "SELF-DIAG RESULTS".

    Display shows malfunction experienced since the last erasing operation.

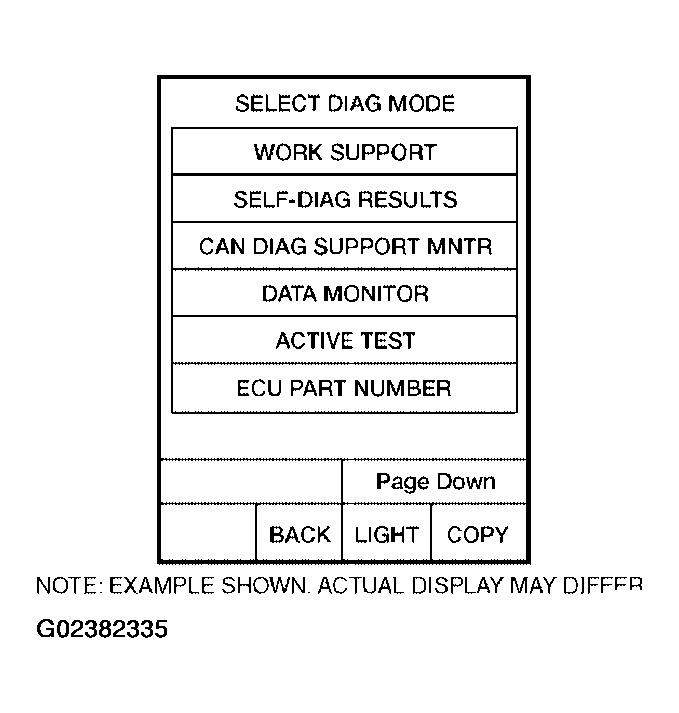

    Fig 1: Display SELECT DIAG MODE Screen
    G02382335Courtesy of NISSAN MOTOR CO., U.S.A.
