How to Erase Self-diagnostic Results

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform "CONSULT-II SETTING PROCEDURE" Refer to "CONSULT-II SETTING PROCEDURE ".
  2. Touch "SELF-DIAG RESULTS".

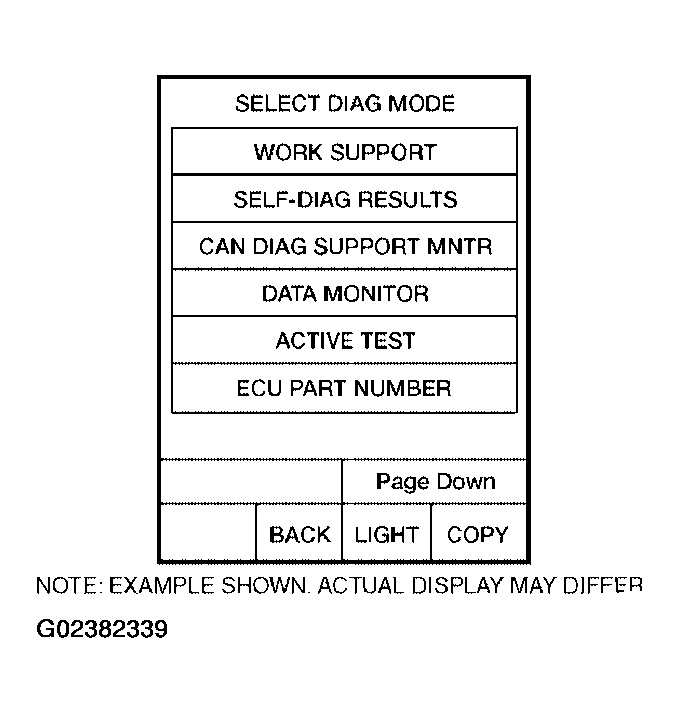

    Fig 1: Display SELECT DIAG MODE Screen
    G02382339Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "ERASE". (The self-diagnostic results will be erased.)

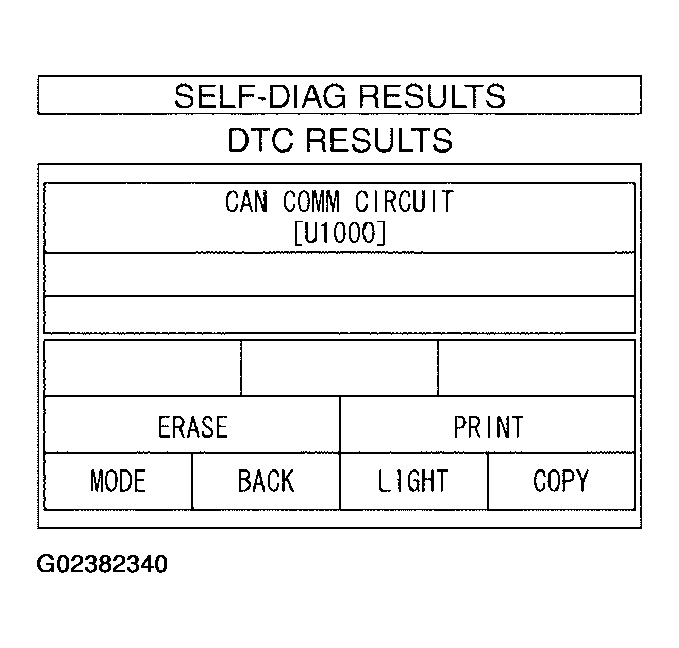

    Fig 2: Display SELECT DIAG RESULTS Screen
    G02382340Courtesy of NISSAN MOTOR CO., U.S.A.
