Display Items List

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

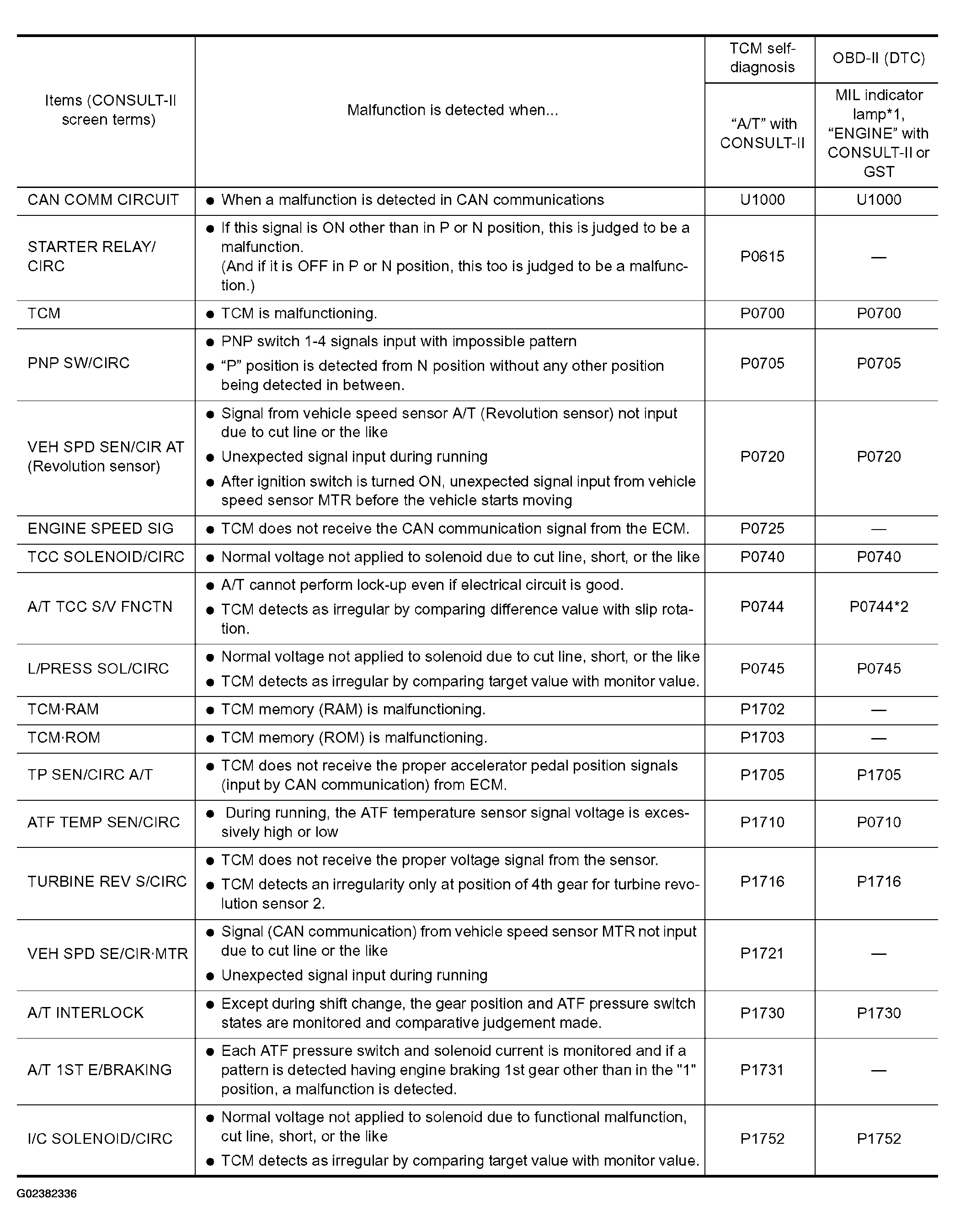

Fig 1: Display Items List (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Display Items List (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Display Items List (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

*1: Refer to "MALFUNCTION INDICATOR LAMP (MIL) ".

*2: These malfunctions cannot be displayed MIL if another malfunction is assigned to MIL.
