Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

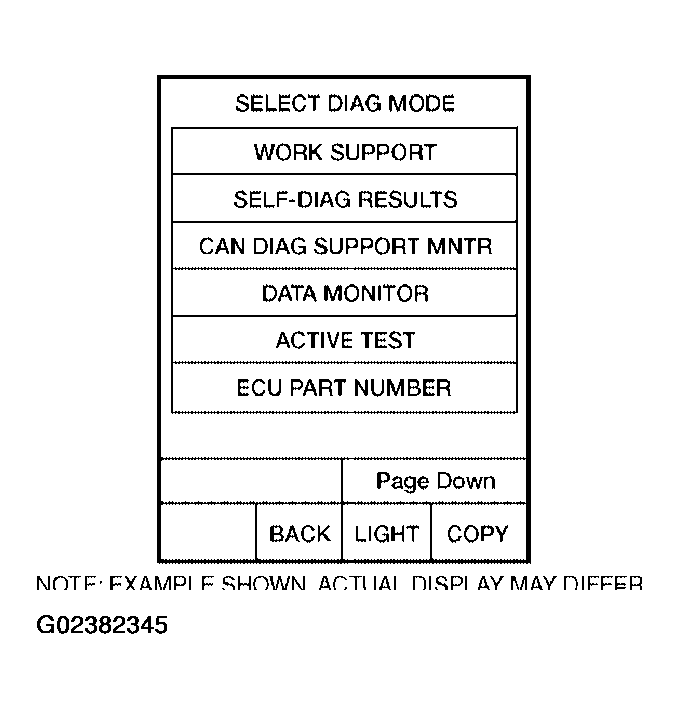

Fig 1: Display SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

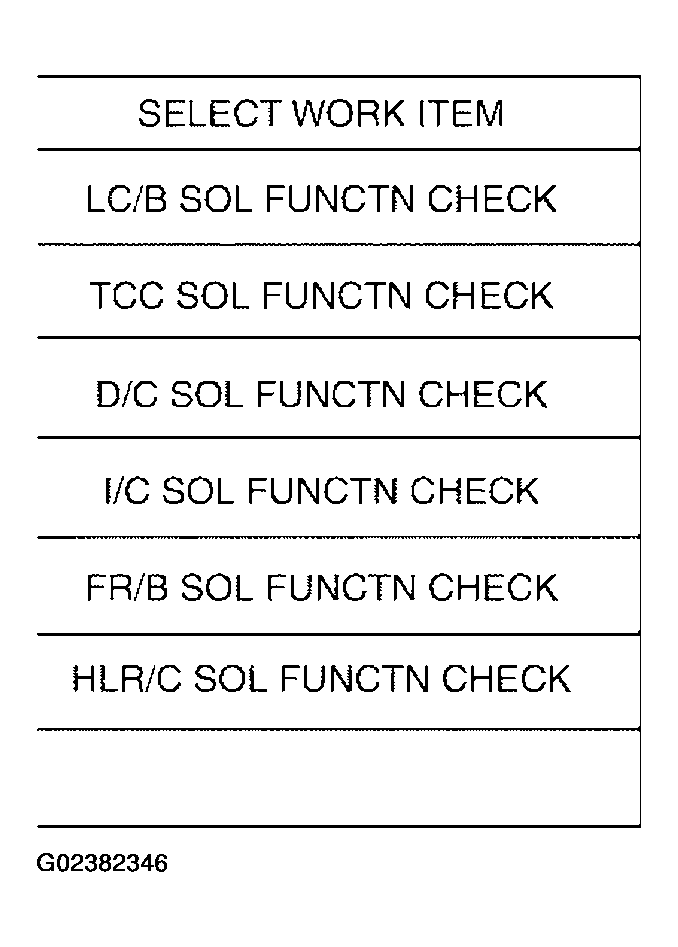

Fig 2: Display SELECT WORK ITEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

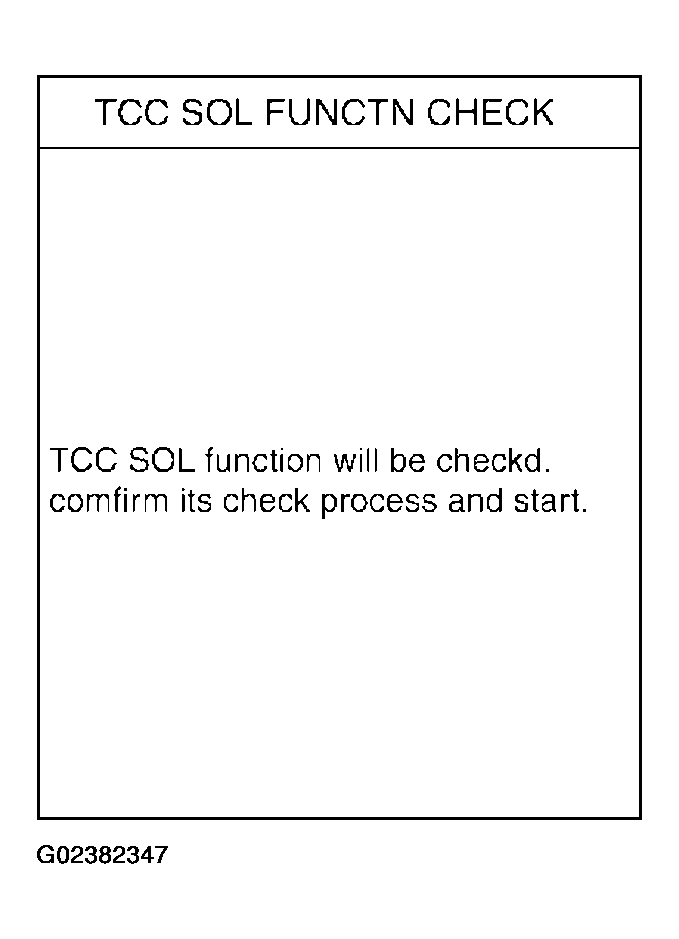

Fig 3: Display TCC SOL FUNCTION CHECK Screen (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

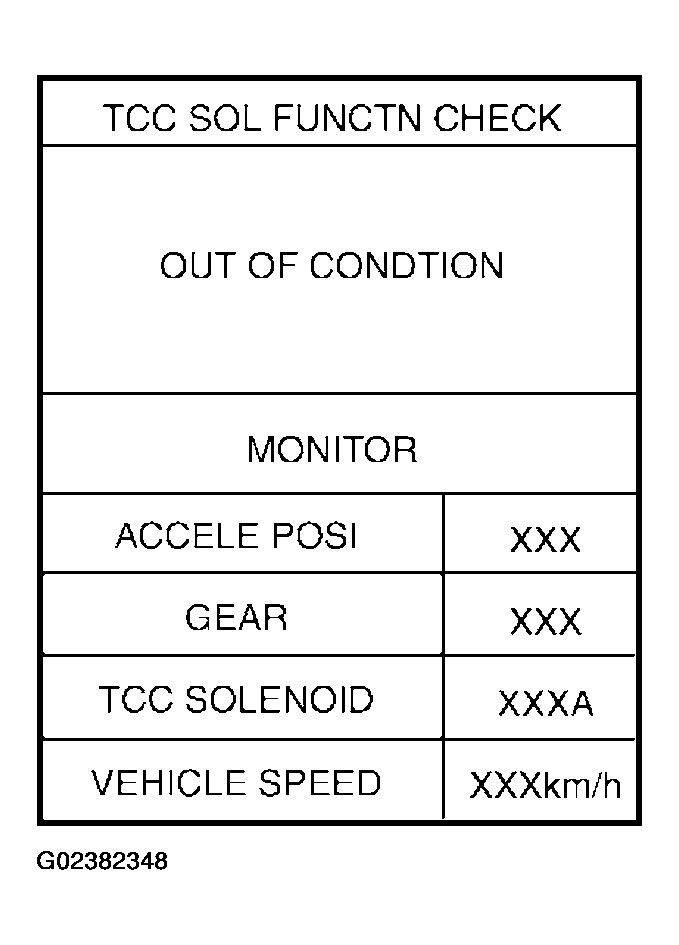

Fig 4: Display TCC SOL FUNCTION CHECK Screen (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

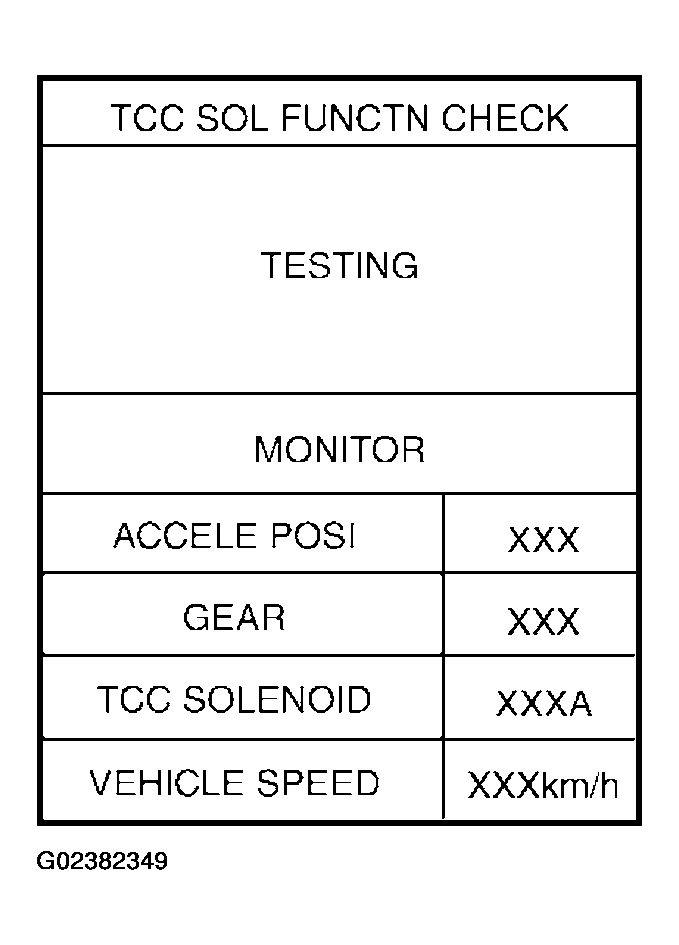

Fig 5: Display TCC SOL FUNCTION CHECK Screen (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

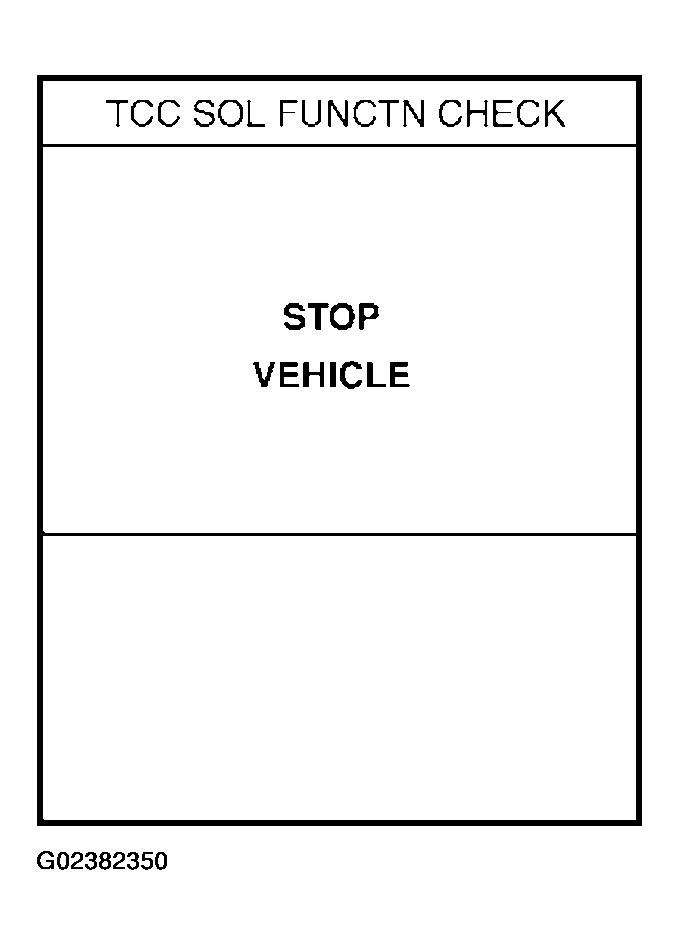

Fig 6: Display TCC SOL FUNCTION CHECK SCREEN (STOP VEHICLE)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".
Fig 7: Display TCC SOL FUNCTION CHECK SCREEN (NG)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

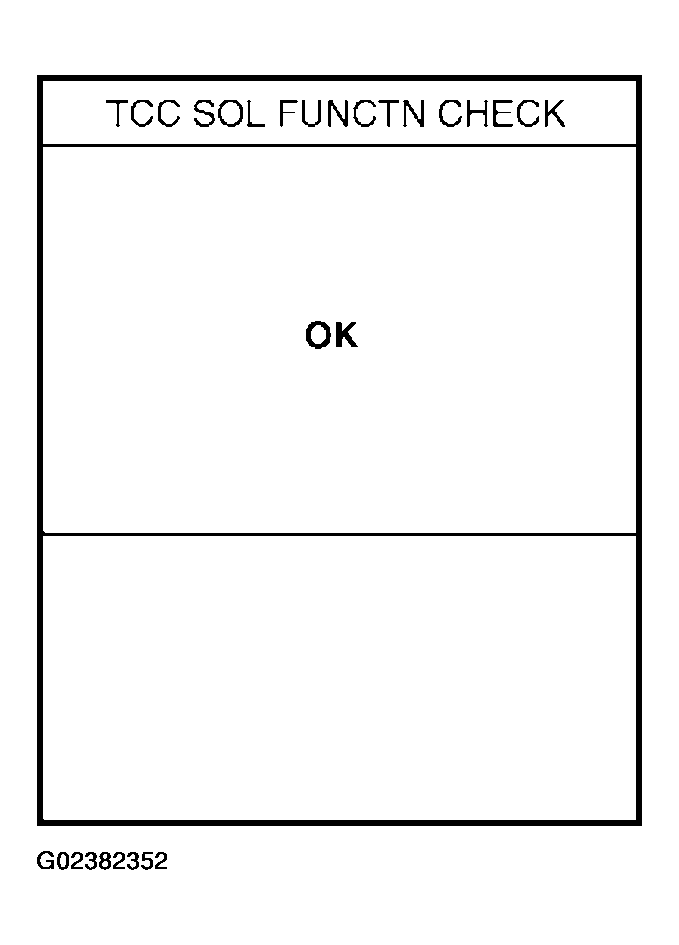

Fig 8: Display TCC SOL FUNCTION CHECK SCREEN (OK)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE ".

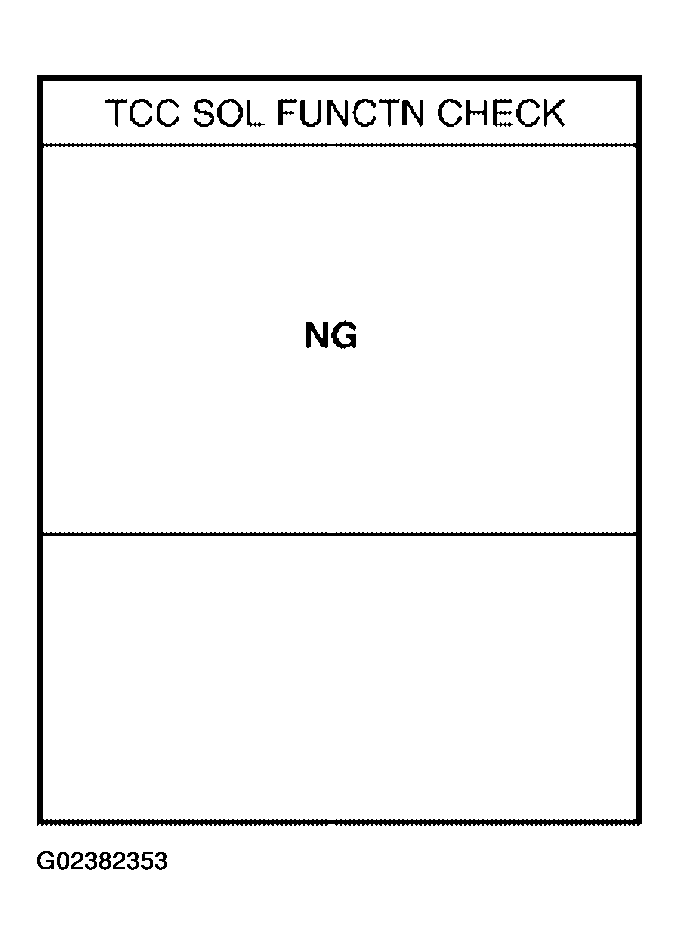

Fig 9: Display TCC SOL FUNCTION CHECK SCREEN (NG)
Courtesy of NISSAN MOTOR CO., U.S.A.
