Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
  2. Touch "DATA MONITOR".
    NOTE: When malfunction is detected, CONSULT-II performs "REAL-TIME DIAGNOSIS". Also, any malfunction detected while in this mode will be displayed at real time.

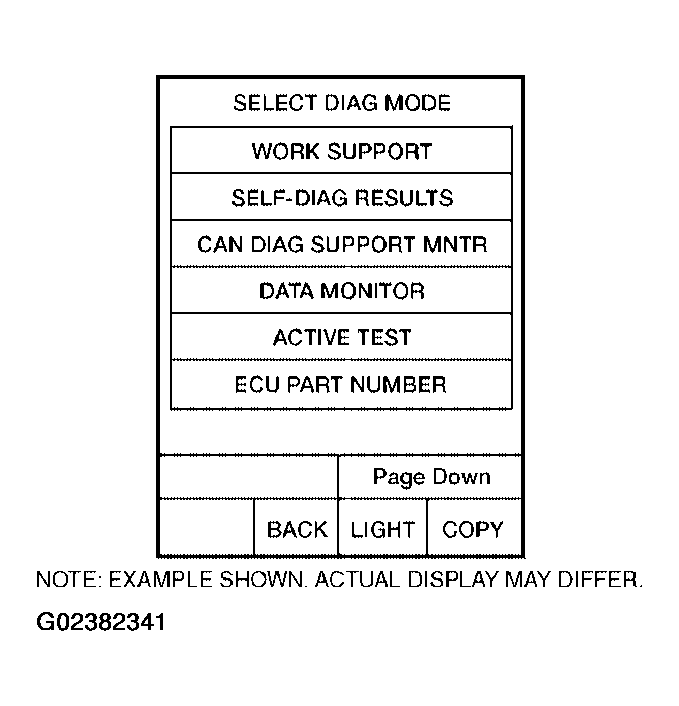

    Fig 1: Display SELECT DIAG MODE Screen
    G02382341Courtesy of NISSAN MOTOR CO., U.S.A.
