Display Items List

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

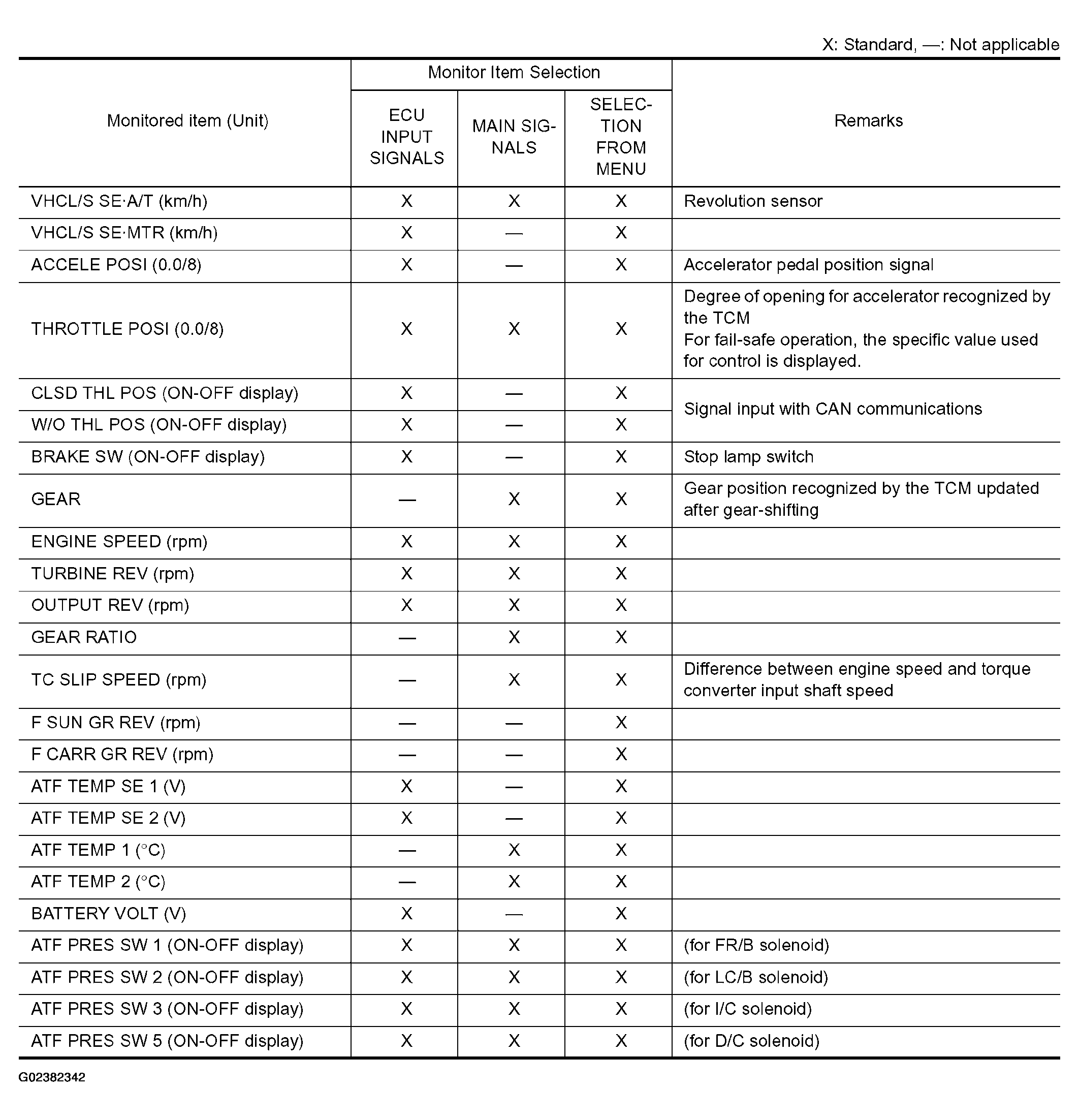

Fig 1: Display Items List (1 Of 3)
G02382342Courtesy of NISSAN MOTOR CO., U.S.A.

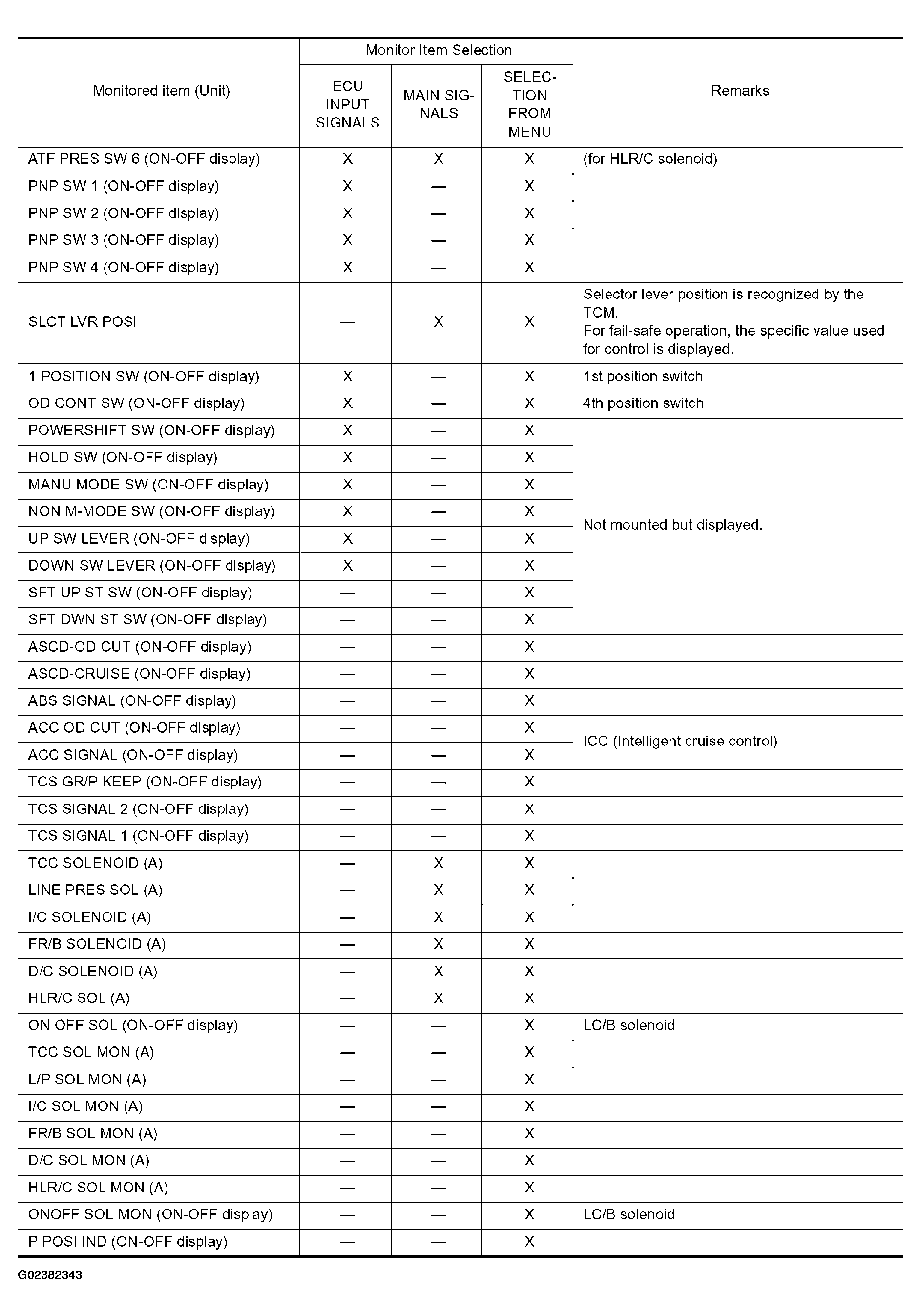

Fig 2: Display Items List (2 Of 3)
G02382343Courtesy of NISSAN MOTOR CO., U.S.A.

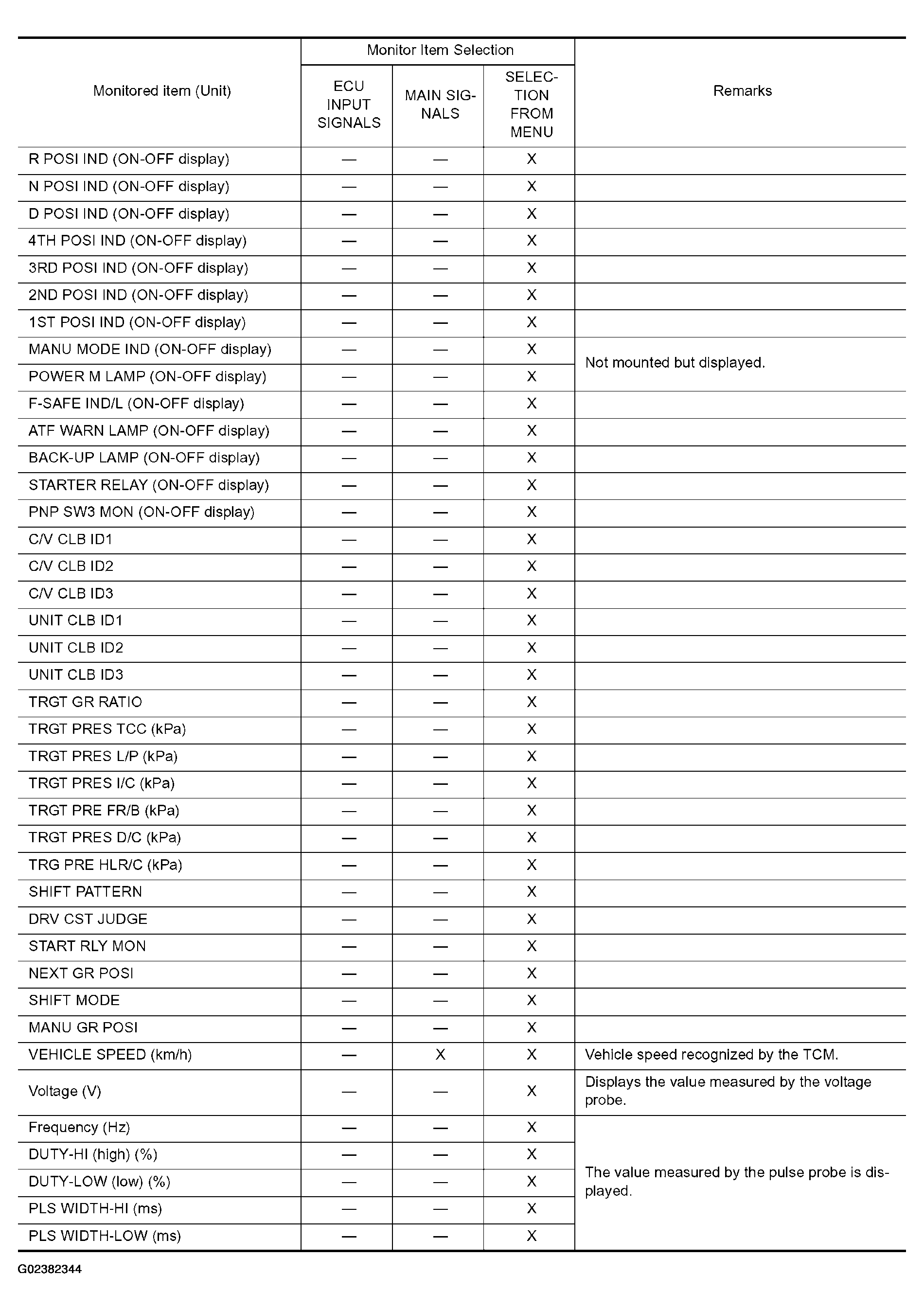

Fig 3: Display Items List (3 Of 3)
G02382344Courtesy of NISSAN MOTOR CO., U.S.A.
