Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnosis. Refer to "SELF-DIAGNOSTIC RESULT MODE ".

Do the self-diagnosis results indicate PNP switch?
1. YES: Check the malfunctioning system. Refer to "DTC P0705 PARK/NEUTRAL POSITION SWITCH ".
2. NO: GO TO 2.
CHECK CONTROL CABLE
Check the control cable.

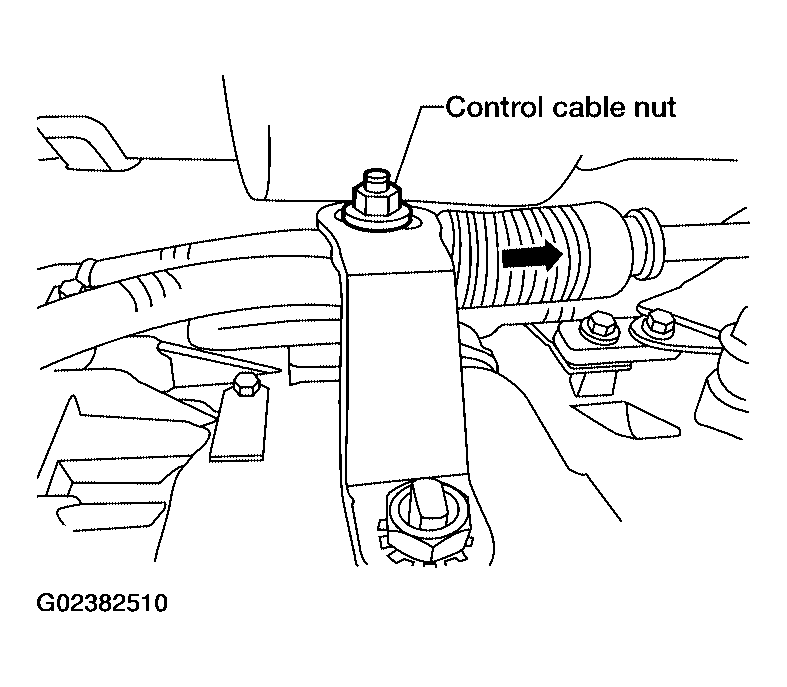

Fig 1: Checking Control Cable
Courtesy of NISSAN MOTOR CO., U.S.A.
- Refer to "CHECKING OF A/T POSITION ".
OK or NG
1. OK: GO TO 3.
2. NG: Adjust control cable. Refer to "ADJUSTMENT OF A/T POSITION ".
CHECK STARTING SYSTEM
Check the starting system. Refer to "STARTING SYSTEM ".

OK or NG
1. OK: INSPECTION END
2. NG: Repair or replace damaged parts.
