Installation and Inspection of Torque Converter
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

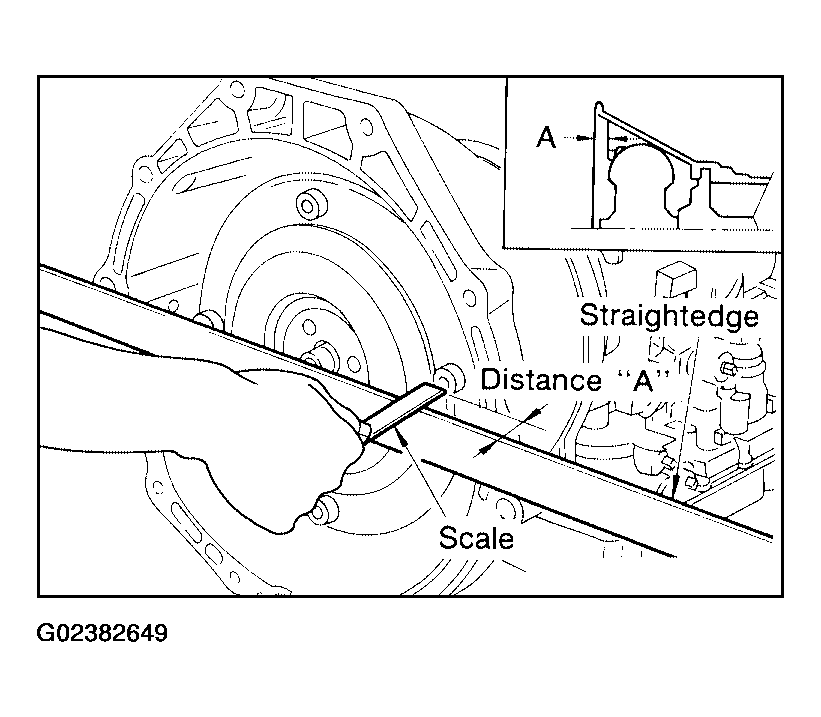

- After inserting a torque converter to a transmission, be sure to check dimension A to ensure it is within the reference value limit.
- Dimension A: 24.0 mm (0.94 in) or more
Courtesy of NISSAN MOTOR CO., U.S.A.
