Removal and Installation (4X2): Components

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

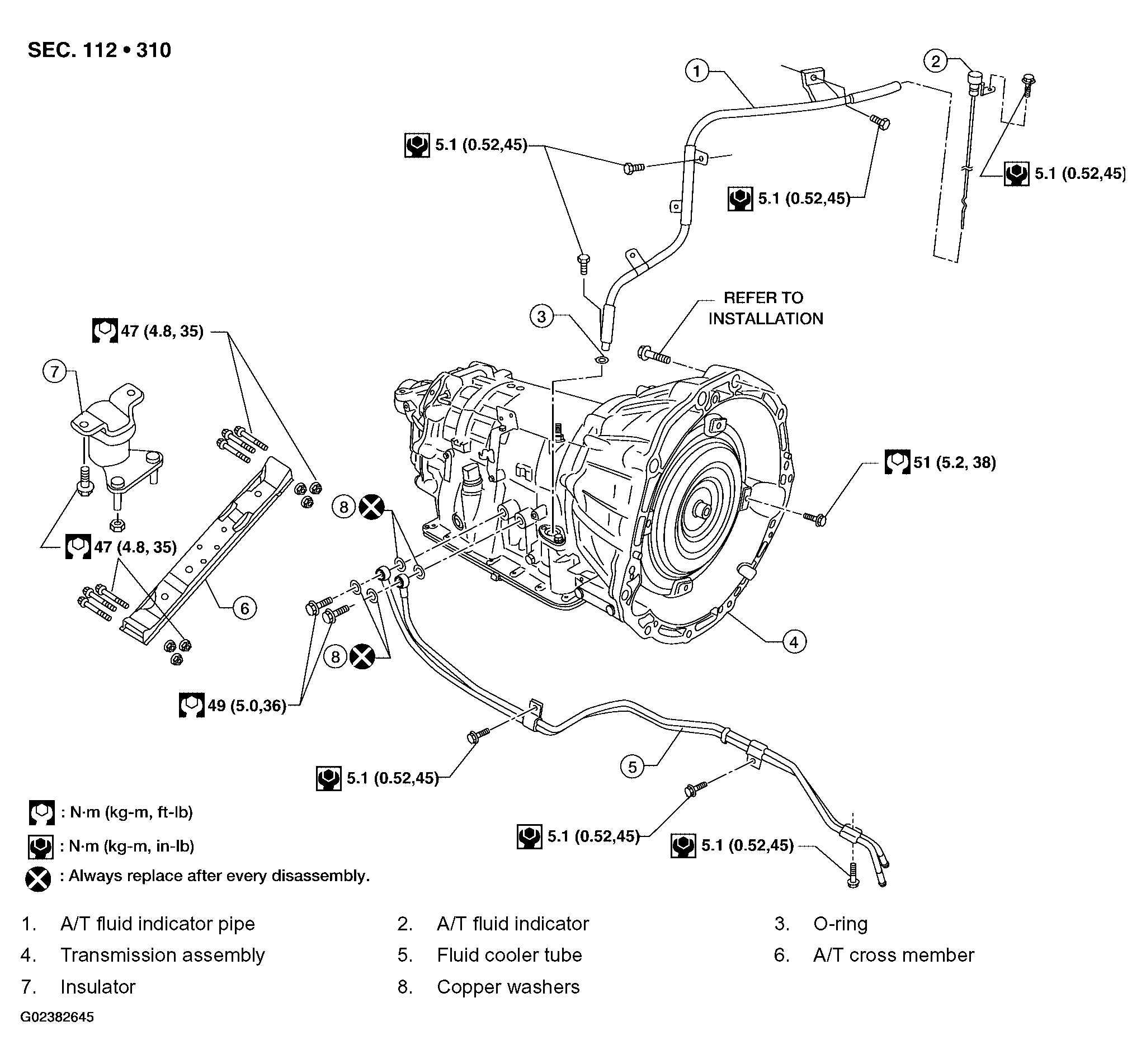

Fig 1: Removing/Installing Transmission Assembly Components (4X2) - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
