Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch Hub: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove needle bearing and bearing races from high and low reverse clutch hub.

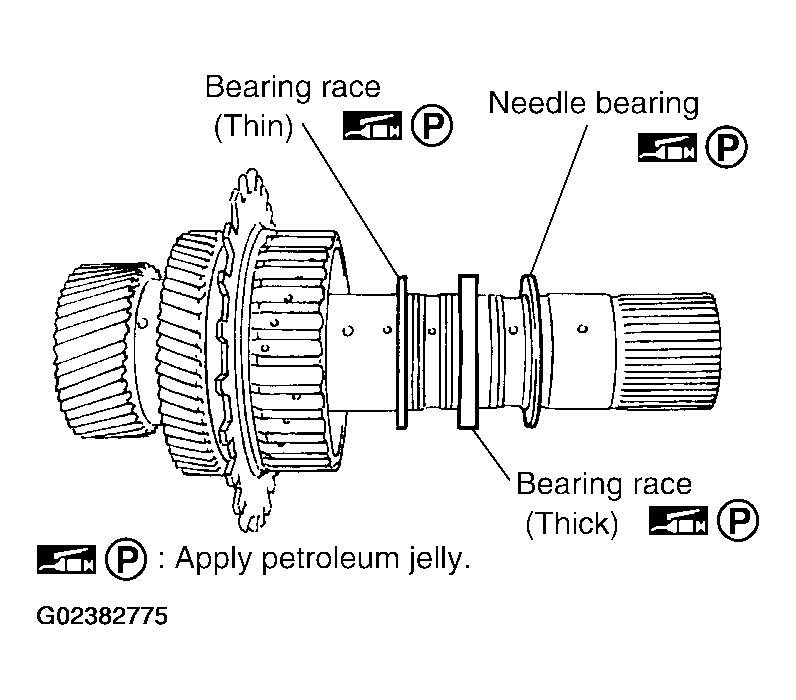

Fig 1: Removing Needle Bearing, Bearing Race From High & Low Reverse Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from mid sun gear assembly, using suitable tool.
CAUTION: Do not expand snap ring excessively.

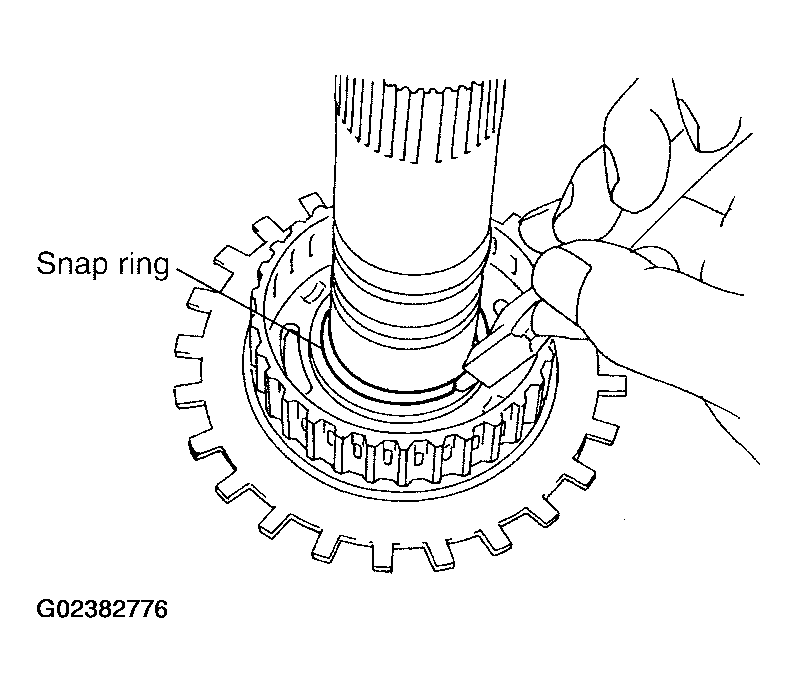

Fig 2: Removing Snap Ring From Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove high and low reverse clutch hub from mid sun gear assembly.

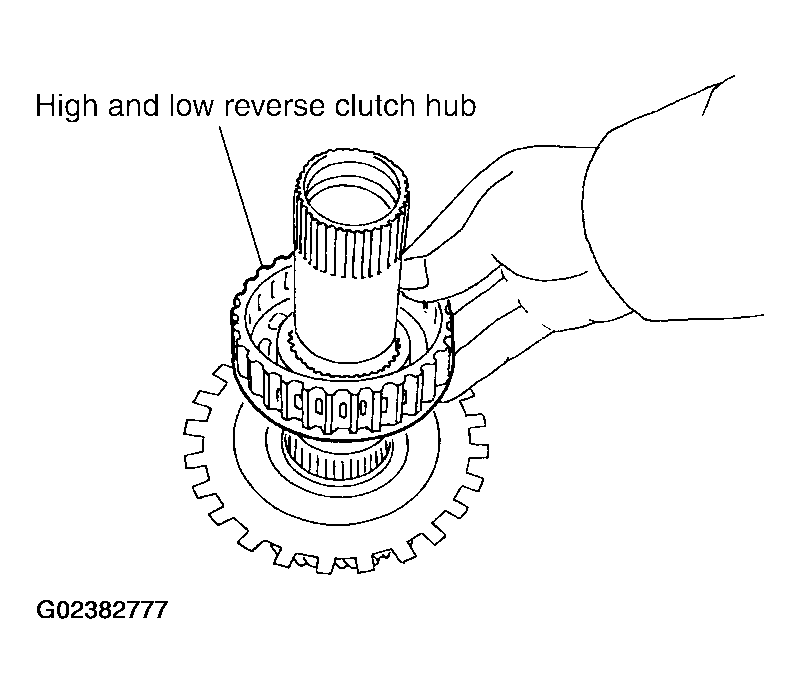

Fig 3: Removing High & Low Reverse Clutch Hub From Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Remove needle bearing from high and low reverse clutch hub.

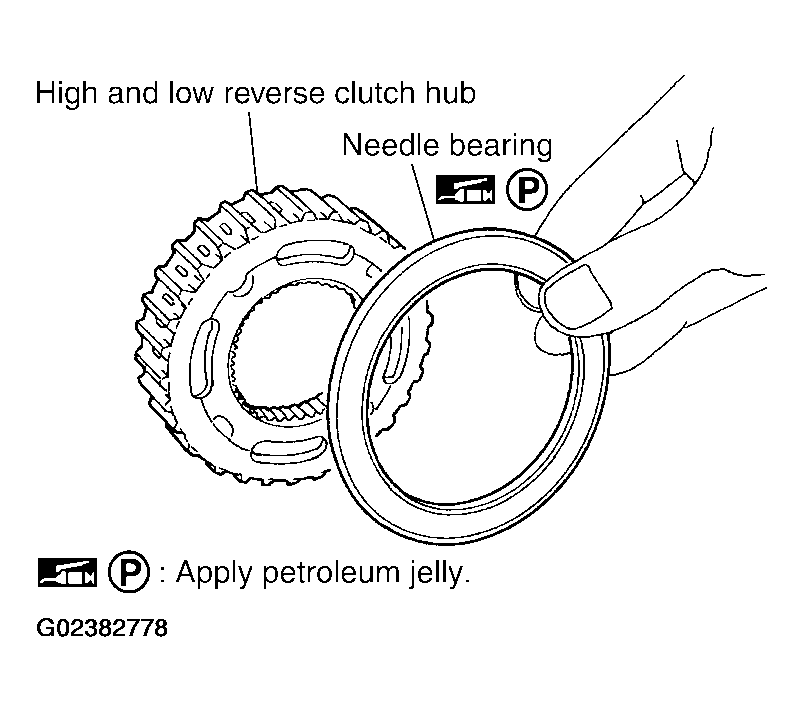

  Fig 4: Removing Needle Bearing From High & Low Reverse Clutch Hub
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove rear sun gear assembly from mid sun gear assembly.

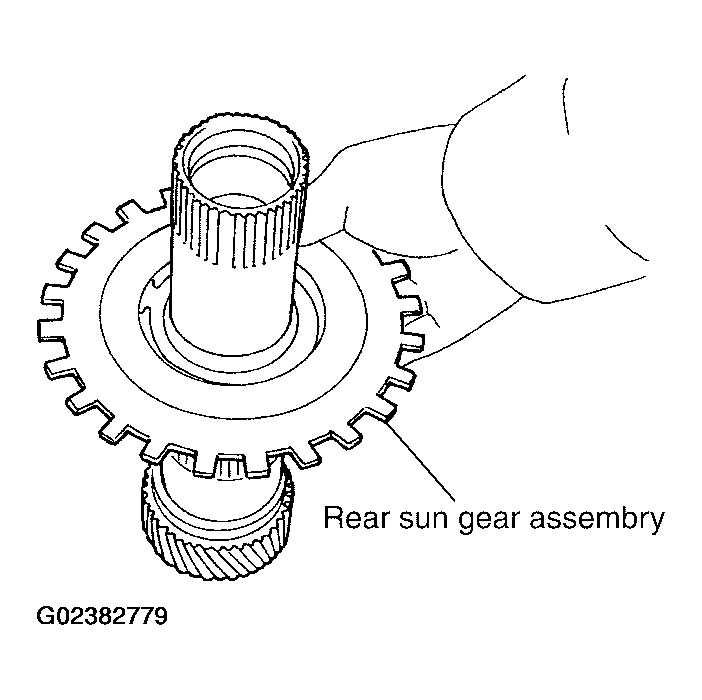

Fig 5: Removing Rear Sun Gear Assembly From Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
1. Remove snap ring from rear sun gear, using suitable tool.

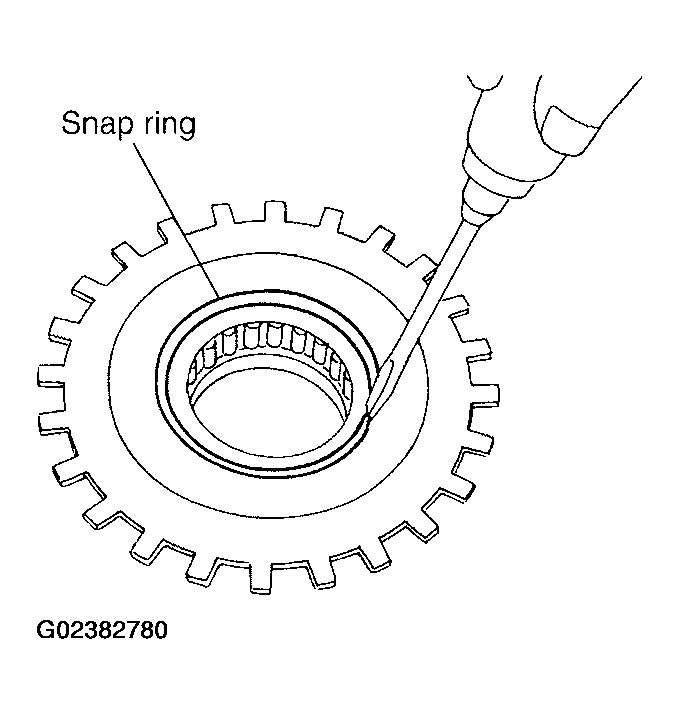

  Fig 6: Removing Snap Ring From Rear Sun Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Remove 1st one-way clutch from rear sun gear.

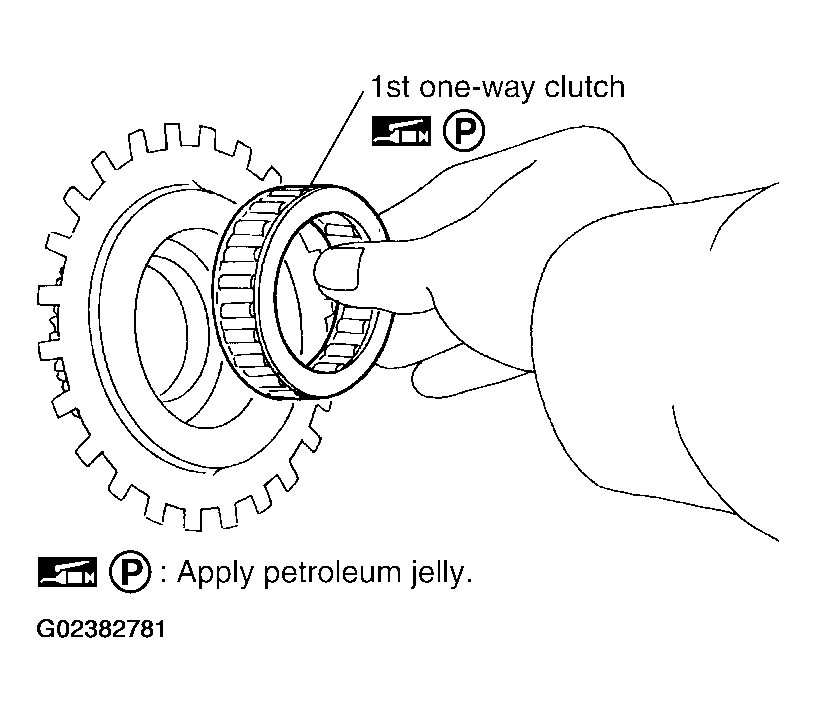

  Fig 7: Removing 1st One-Way Clutch From Rear Sun Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
Remove seal rings from mid sun gear.

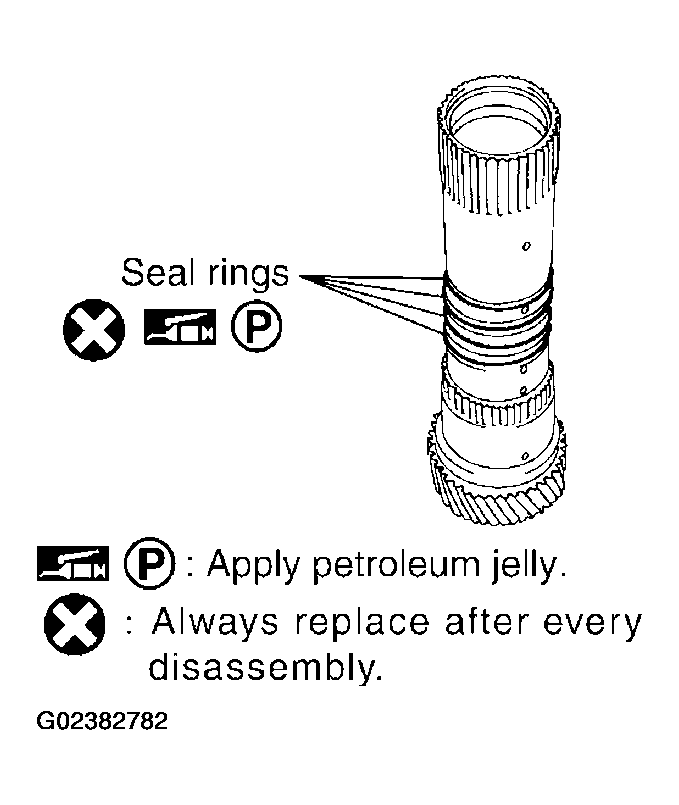

Fig 8: Removing Seal Rings From Mid Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
