Mid Sun Gear, Rear Sun Gear, High and Low Reverse Clutch Hub: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install new seal rings to mid sun gear.
CAUTION:
- Do not reuse seal rings.
- Apply petroleum jelly to seal rings.

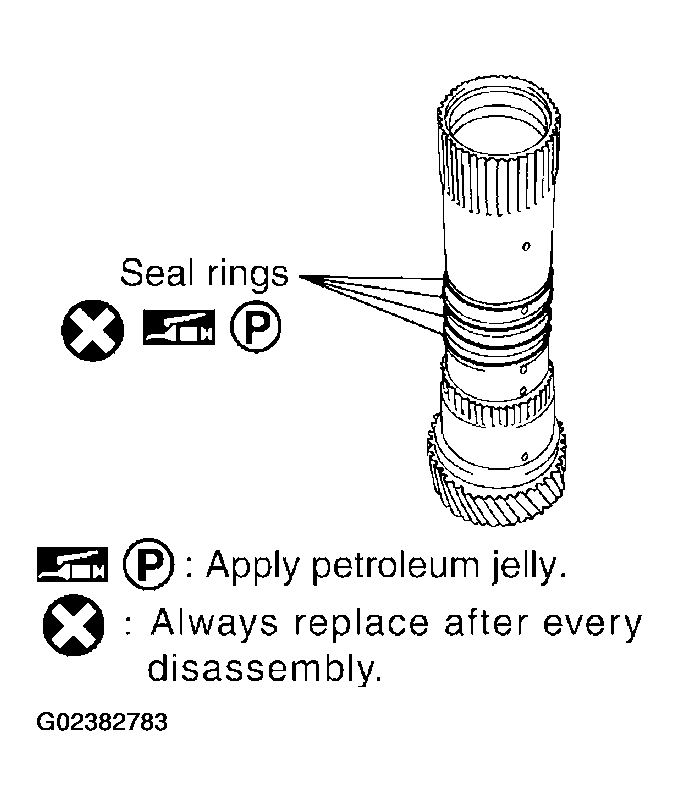

Fig 1: Installing Seal Rings To Mid Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install 1st one-way clutch to rear sun gear.
CAUTION: Apply petroleum jelly to 1st one-way clutch.

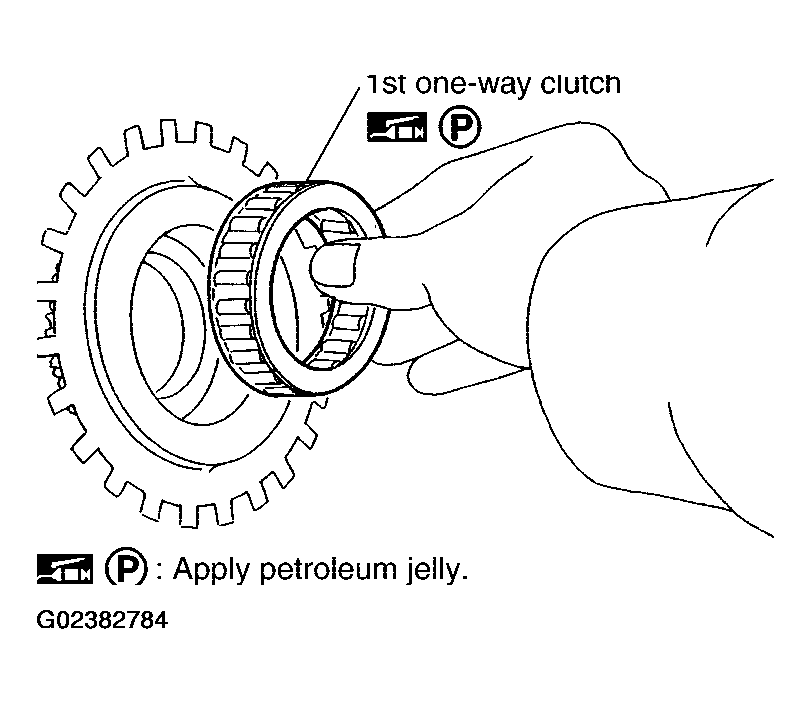

Fig 2: Installing 1st One-Way Clutch To Rear Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to rear sun gear, using suitable tool.

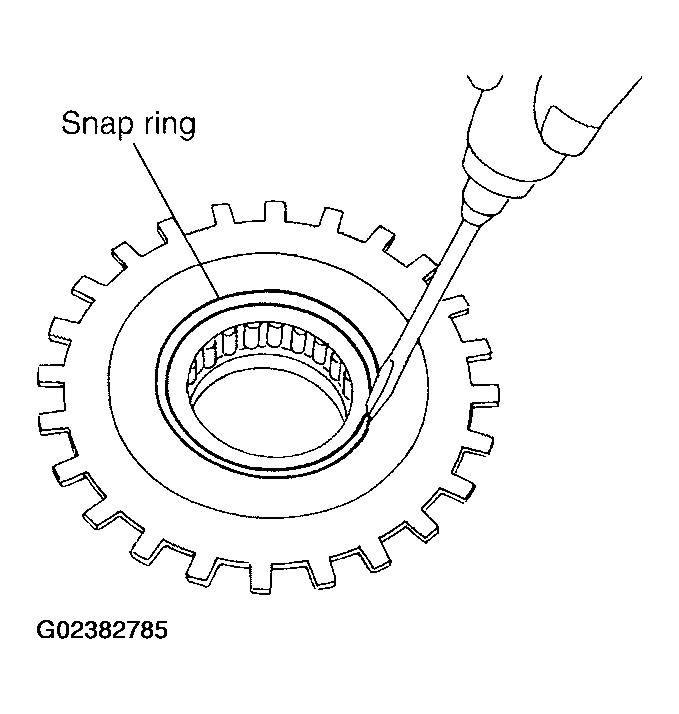

Fig 3: Installing Snap Ring To Rear Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
Install rear sun gear assembly to mid sun gear assembly.

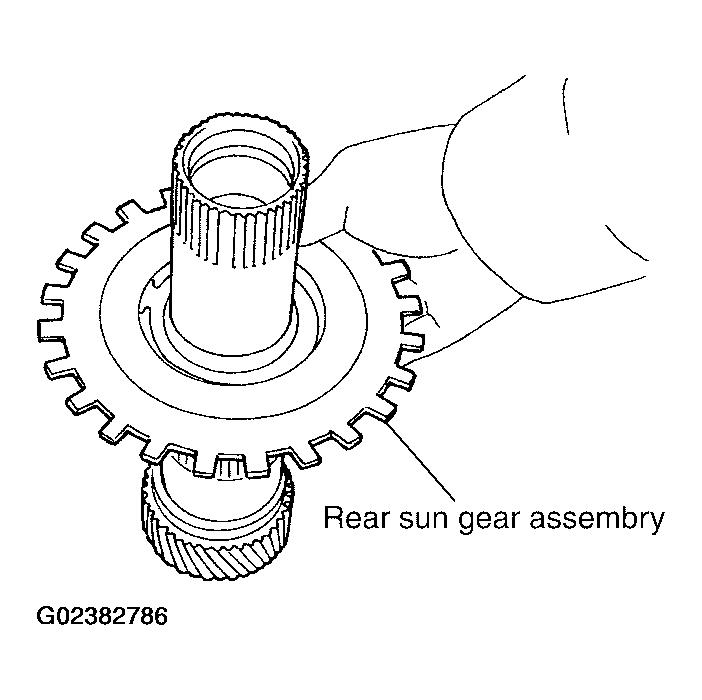

Fig 4: Installing Rear Sun Gear Assembly To Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing to high and low reverse clutch hub.
CAUTION:
- Take care with the direction of needle bearing. Refer to "LOCATION OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".
- Apply petroleum jelly to needle bearing.

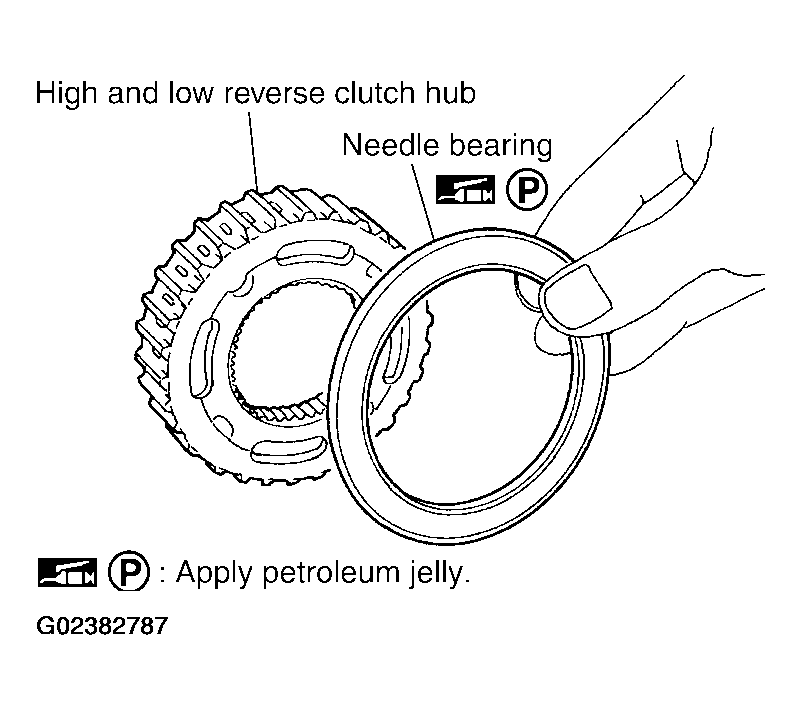

Fig 5: Installing Needle Bearing To High & Low Reverse Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
Install high and low reverse clutch hub to mid sun gear assembly.

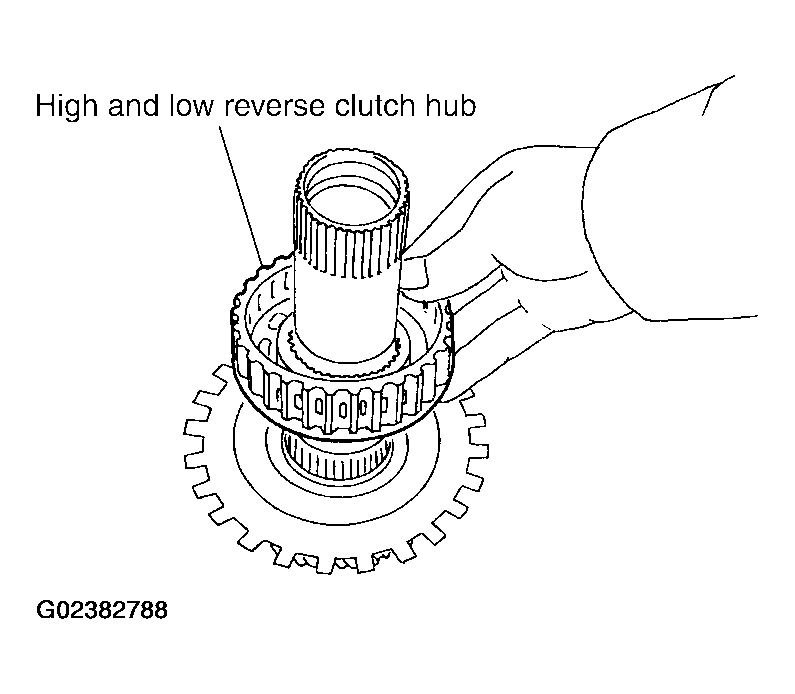

Fig 6: Installing High & Low Reverse Clutch Hub To Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring to mid sun gear assembly, using suitable tool.
CAUTION: Do not expand snap ring excessively.

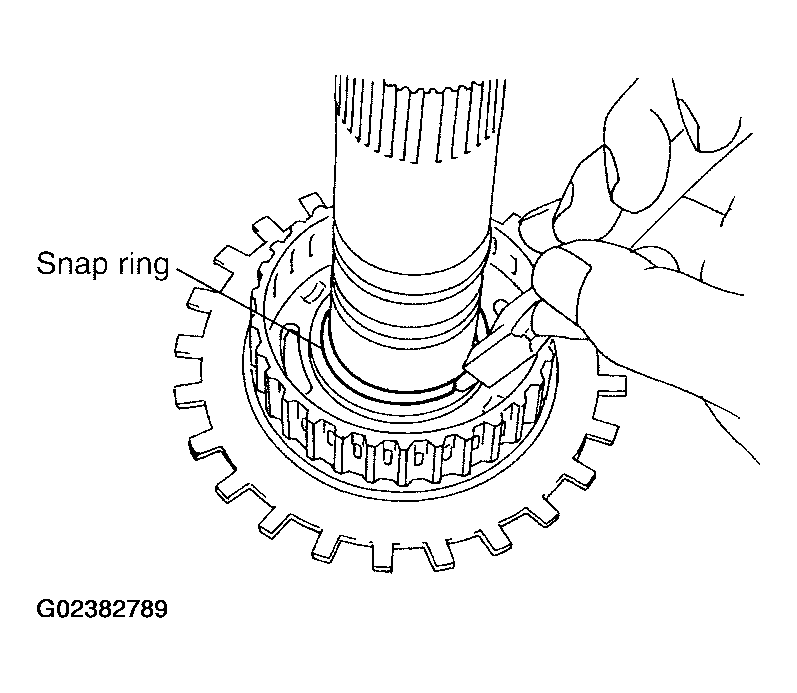

Fig 7: Installing Snap Ring To Mid Sun Gear Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Check operation of 1st one-way clutch.
1. Hold mid sun gear and turn rear sun gear.
2. Check 1st one-way clutch for correct locking and unlocking directions.
CAUTION: If not as shown in illustration, check installation direction of 1st one-way clutch.

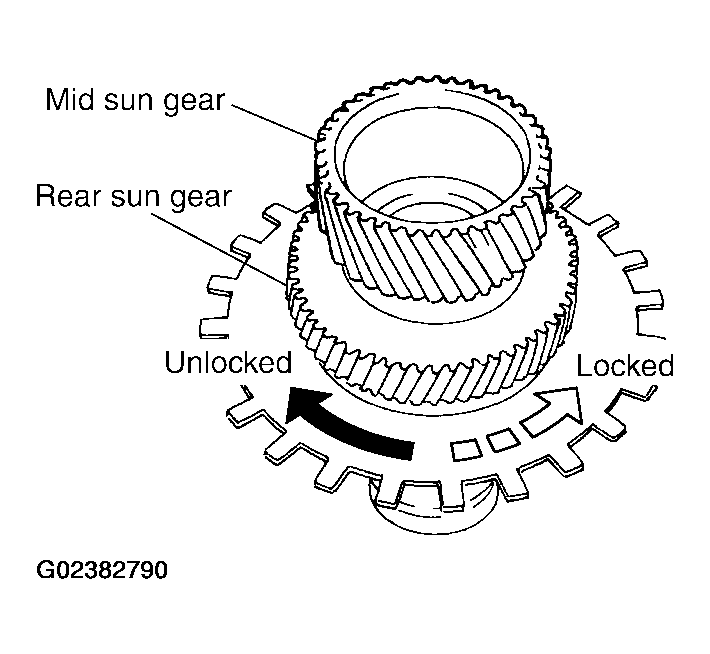

Fig 8: Checking Operation Of 1st One-Way Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
Install needle bearing and bearing races to high and low reverse clutch hub.
CAUTION:
- Apply petroleum jelly to needle bearing and bearing races.
- Take care with order of bearing races.

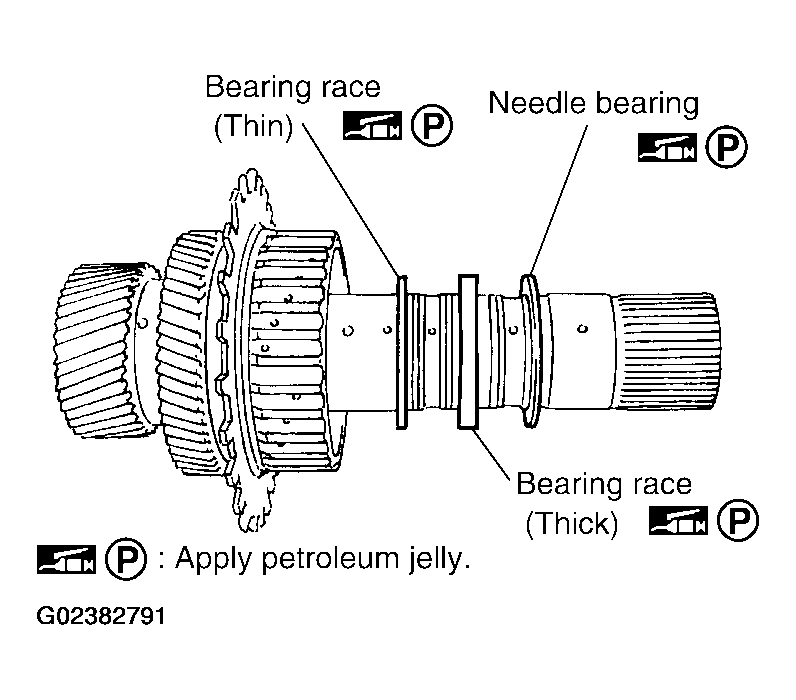

Fig 9: Installing Needle Bearing, Bearing Race To High & Low Reverse Clutch Hub
Courtesy of NISSAN MOTOR CO., U.S.A.
