High and Low Reverse Clutch: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Remove bearing race from high and low reverse clutch drum.

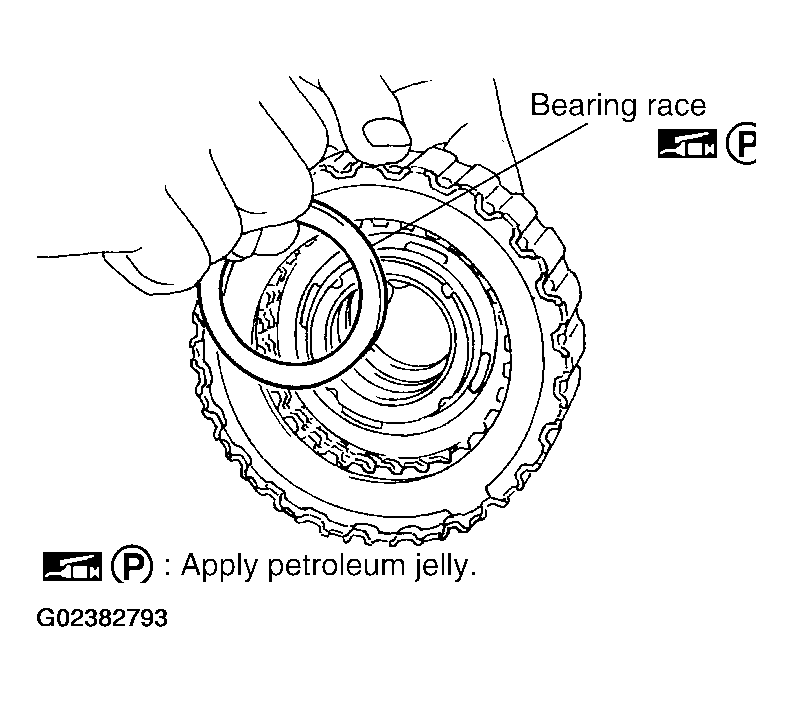

Fig 1: Removing Bearing Race From High & Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove snap ring from high and low reverse clutch drum, using flat-bladed screwdriver.
Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.

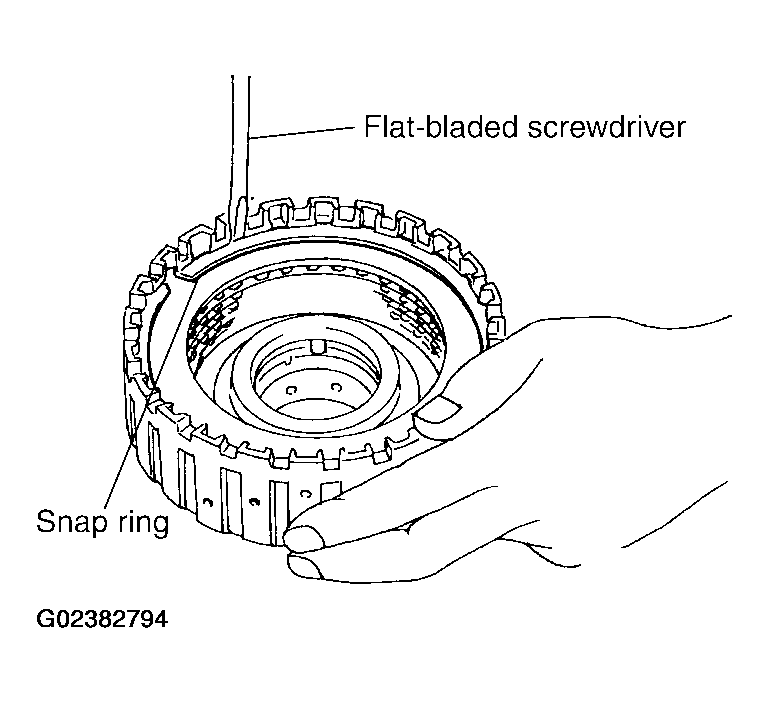

Fig 2: Removing Snap Ring From High & Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
