High and Low Reverse Clutch: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
CAUTION: Take care with the order of plates.

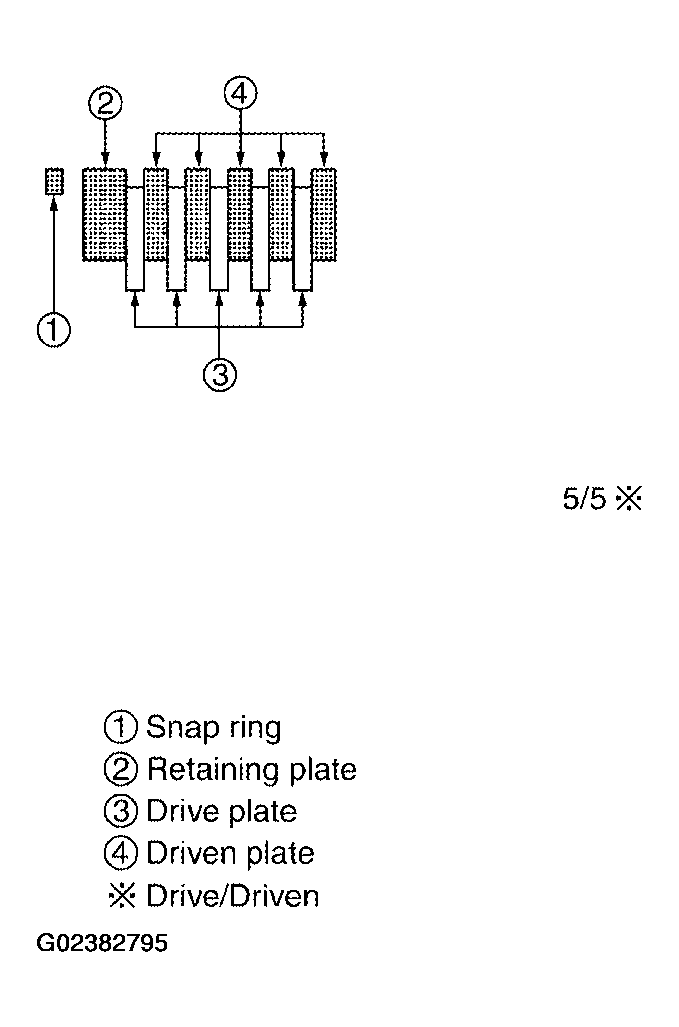

Fig 1: Installing Drive Plates, Driven Plates & Retaining Plate In High And Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install snap ring in high and low reverse clutch drum, using flatbladed screwdriver.

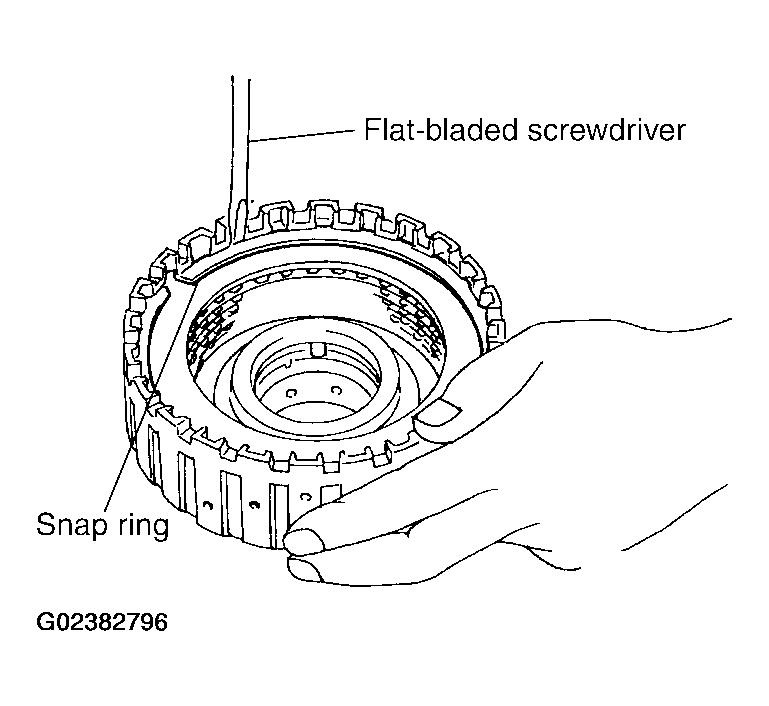

Fig 2: Installing Snap Ring In High & Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
Install bearing race to high and low reverse clutch drum.
CAUTION: Apply petroleum jelly to bearing race.

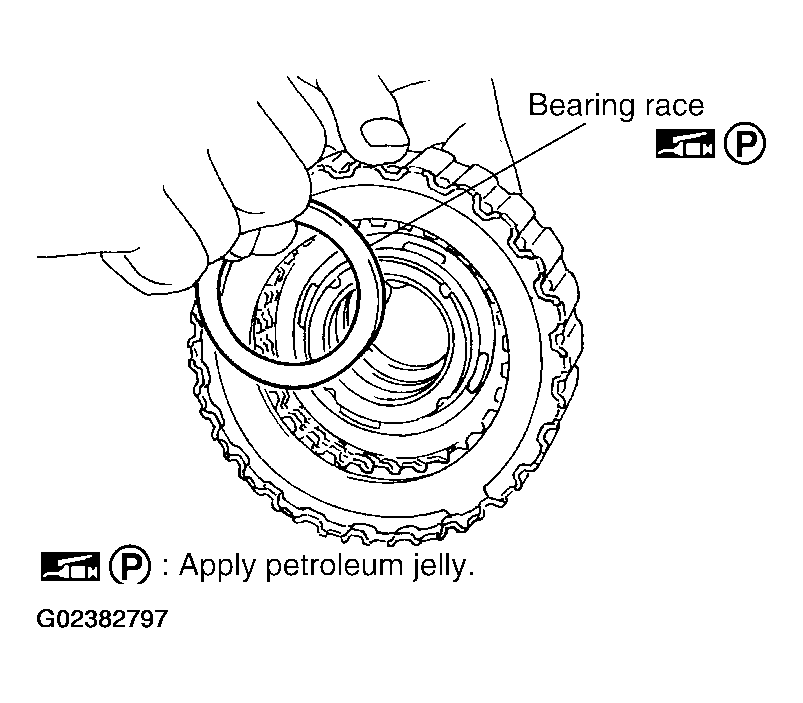

Fig 3: Installing Bearing Race To High & Low Reverse Clutch Drum
Courtesy of NISSAN MOTOR CO., U.S.A.
