Front Sun Gear, 3rd One-Way Clutch: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

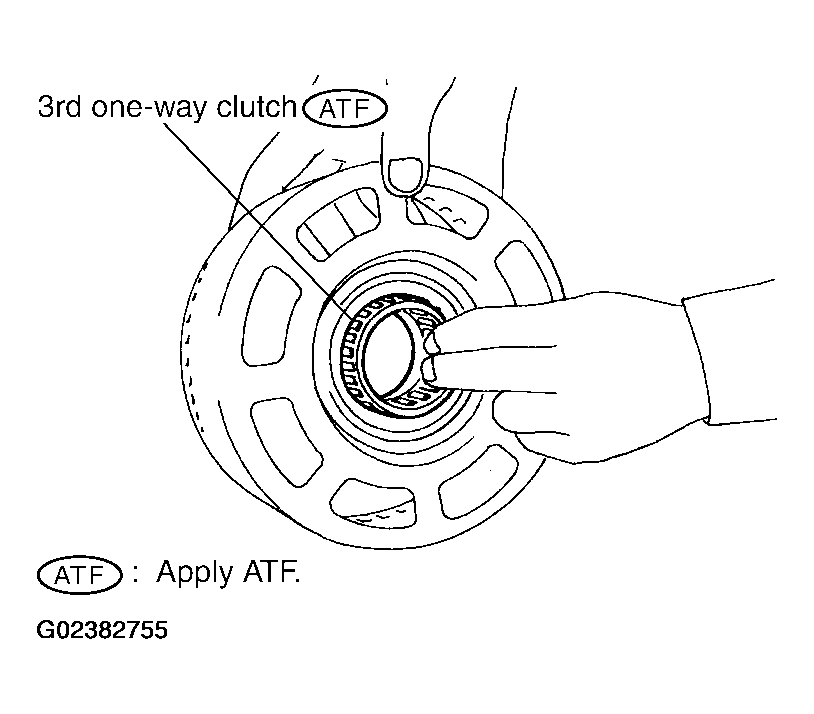

Install 3rd one-way clutch in front sun gear.
CAUTION: Apply ATF to 3rd one-way clutch.

Fig 1: Installing 3rd One-Way Clutch In Front Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

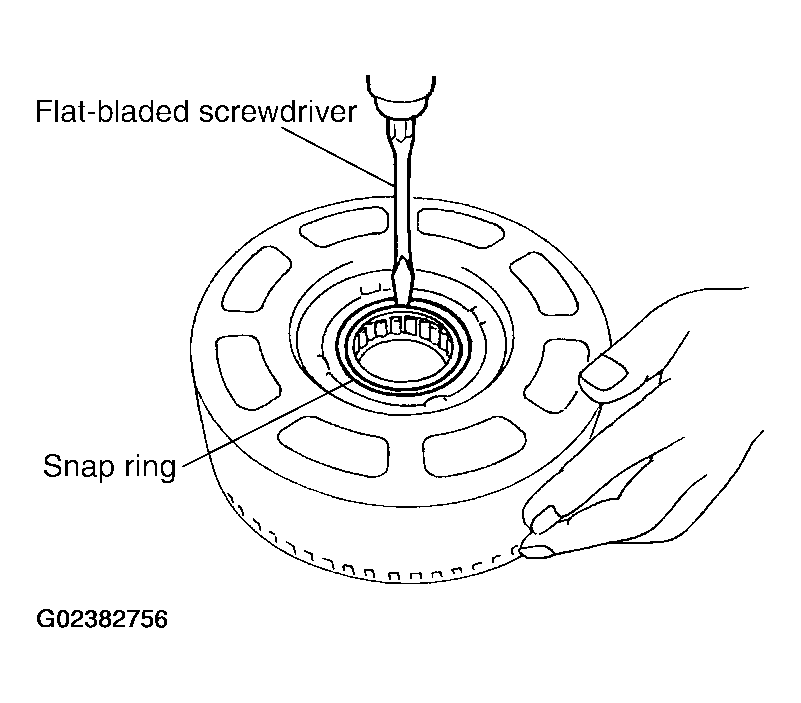

Using a flat-bladed screwdriver, install snap ring in front sun gear.

Fig 2: Installing Snap Ring In Front Sun Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

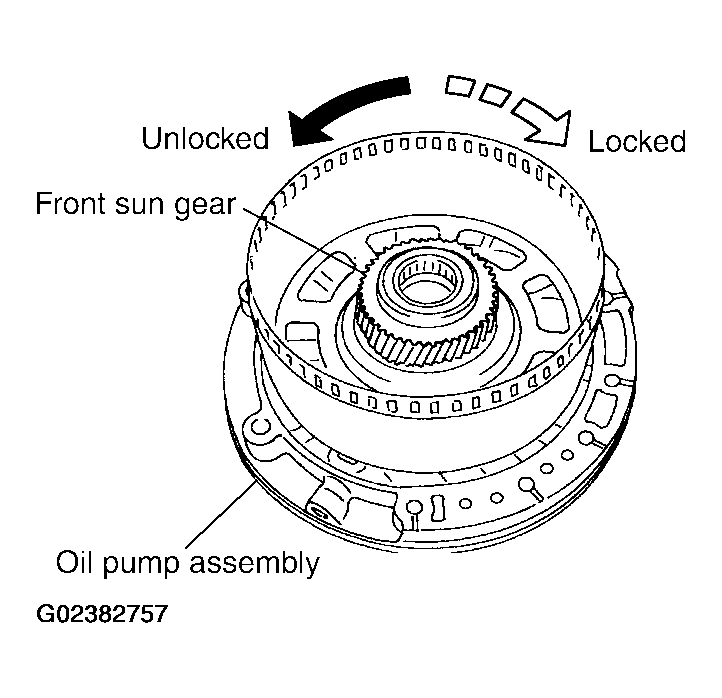

Check operation of 3rd one-way clutch.
1. Hold oil pump assembly and turn front sun gear.
2. Check 3rd one-way clutch for correct locking and unlocking directions.
  CAUTION: If not as shown in illustration, check installation direction of 3rd one-way clutch.
Fig 3: Checking Operation Of 3rd One-Way Clutch
Courtesy of NISSAN MOTOR CO., U.S.A.
