Front Carrier, Input Clutch, Rear Internal Gear: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Install input clutch.
1. Install drive plates, driven plates and retaining plate in input clutch drum.
  CAUTION: Take care with order of plates.

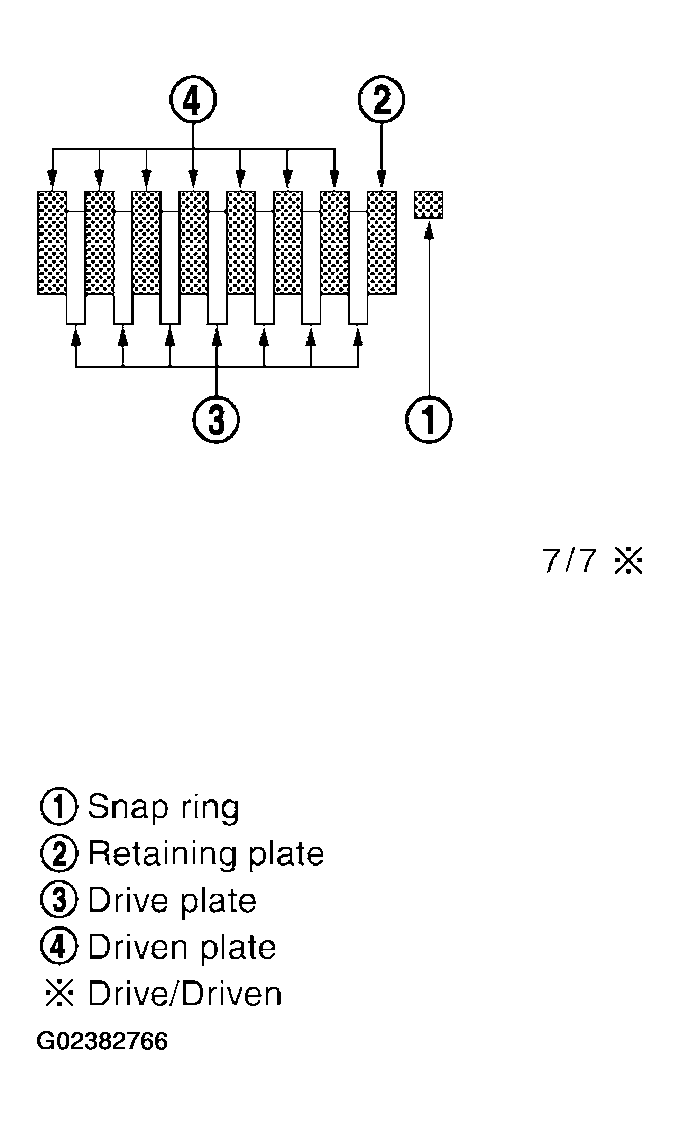

  Fig 1: Installing Drive Plates, Driven Plates & Retaining Plate In Input Clutch Drum
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install snap ring in input clutch drum, using flat-bladed screwdriver.

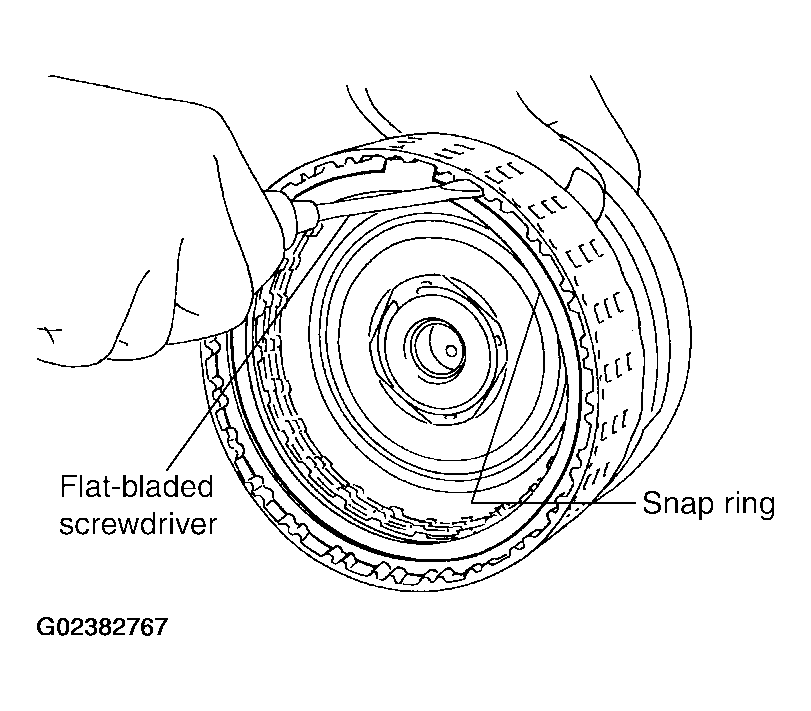

  Fig 2: Installing Snap Ring In Input Clutch Drum
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install needle bearing in input clutch assembly.
  CAUTION: Apply petroleum jelly to needle bearing.

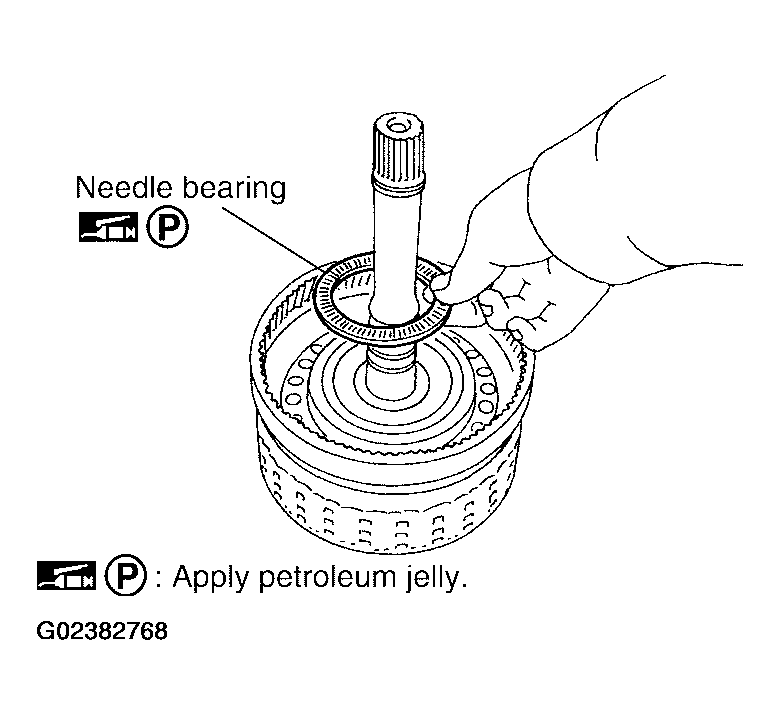

  Fig 3: Installing Needle Bearing In Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install new O-ring and seal rings in input clutch assembly.
  CAUTION:
  - Do not reuse O-ring and seal rings.
  - Apply ATF to O-ring.
  - Apply petroleum jelly to seal rings.

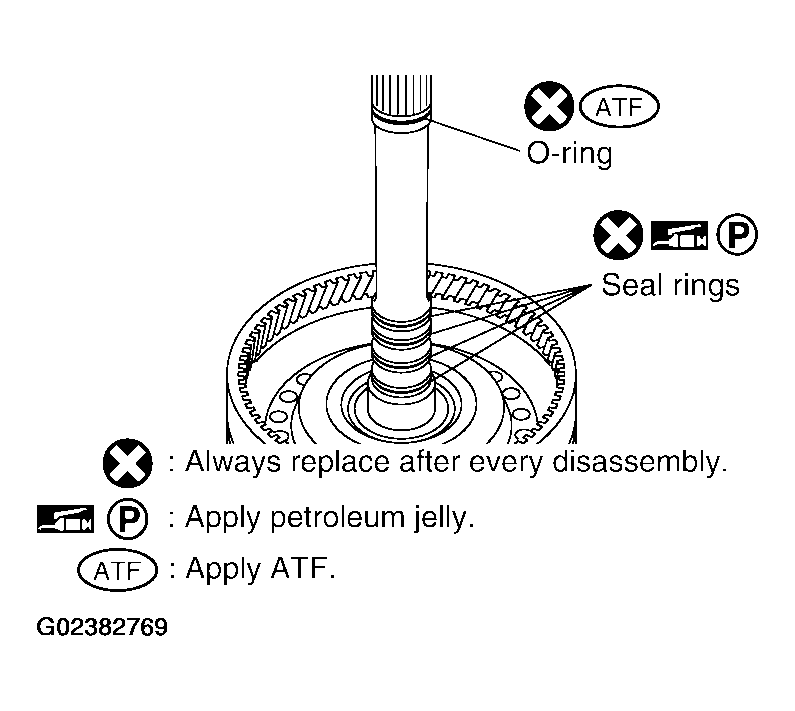

  Fig 4: Installing New O-Ring & Seal Rings In Input Clutch Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
Install front carrier assembly.
1. Install snap ring to front carrier assembly.
  CAUTION: Do not expand snap ring excessively.

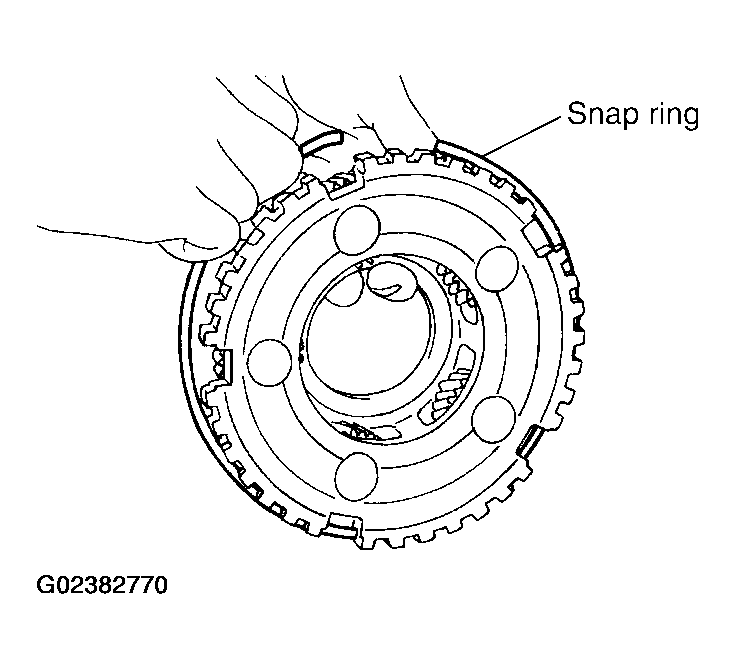

  Fig 5: Installing Snap Ring To Front Carrier Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install needle bearing in front carrier assembly.
  CAUTION:
  - Take care with the direction of needle bearing. Refer to "LOCATIONS OF ADJUSTING SHIMS, NEEDLE BEARINGS, THRUST WASHERS AND SNAP RINGS ".
  - Apply petroleum jelly to needle bearing.

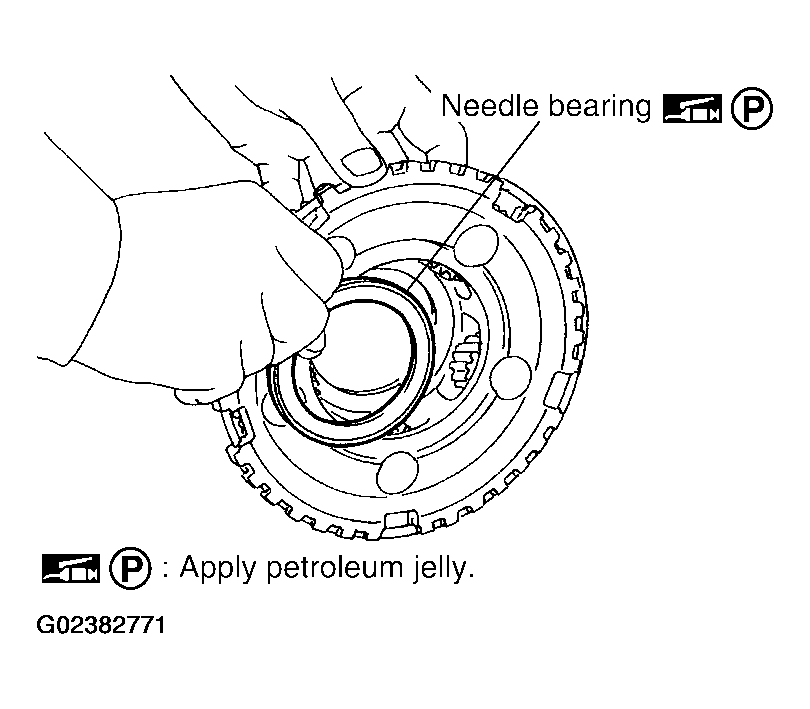

  Fig 6: Installing Needle Bearing In Front Carrier Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Install bearing race in front carrier assembly.
  CAUTION: Apply petroleum jelly to bearing race.

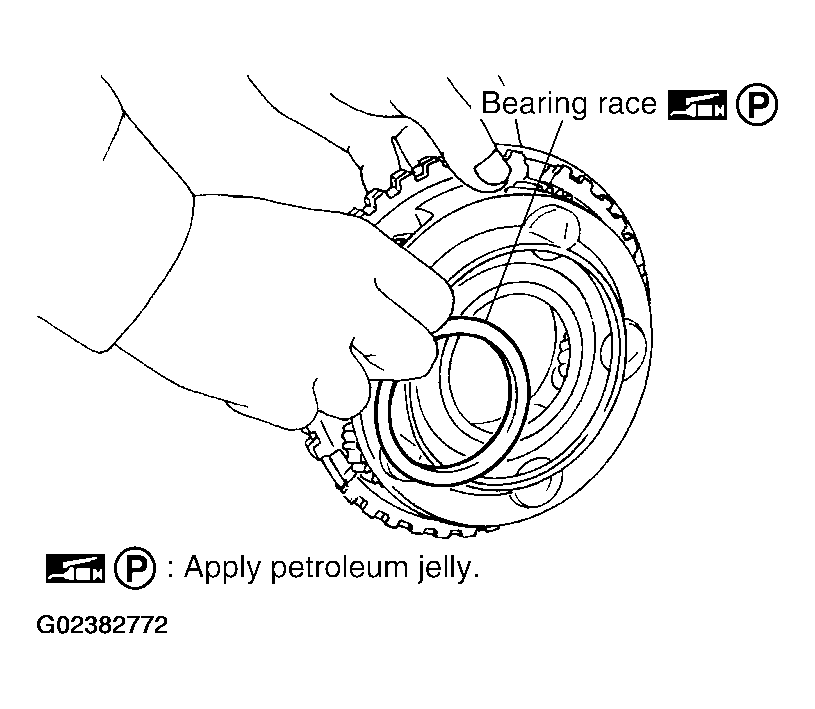

  Fig 7: Installing Bearing Race In Front Carrier Assembly
  Courtesy of NISSAN MOTOR CO., U.S.A.

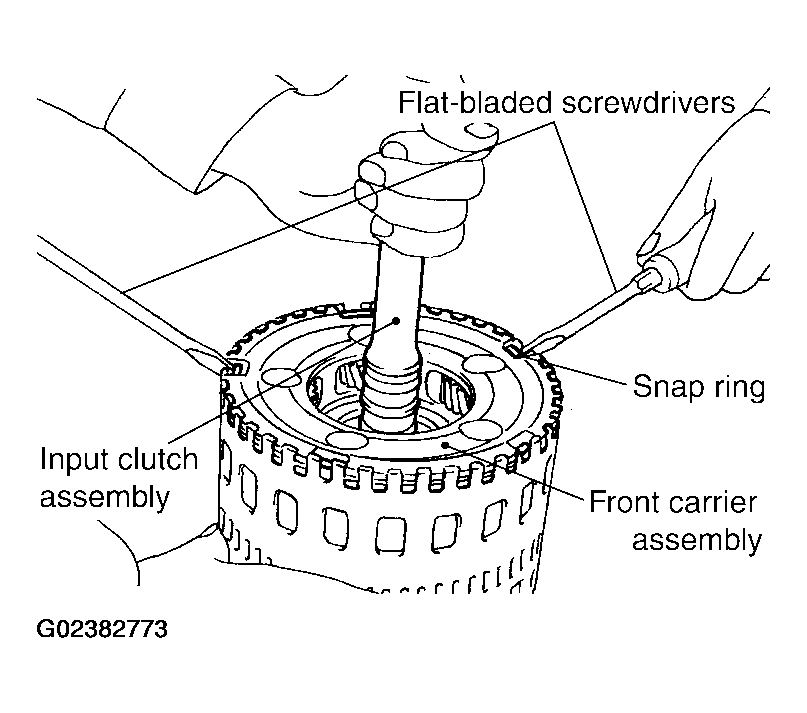

4. Install front carrier assembly to input clutch assembly.
Compress snap ring using 2 flat-bladed screwdrivers.
Install front carrier assembly and input clutch assembly to rear internal gear.

Fig 8: Installing Front Carrier Assembly & Input Clutch Assembly To Rear Internal Gear
Courtesy of NISSAN MOTOR CO., U.S.A.
