Direct Clutch: Disassembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove snap rings from direct clutch drum, using flat-bladed screwdriver.
  2. Remove drive plates, driven plates and retaining plate from direct clutch drum.

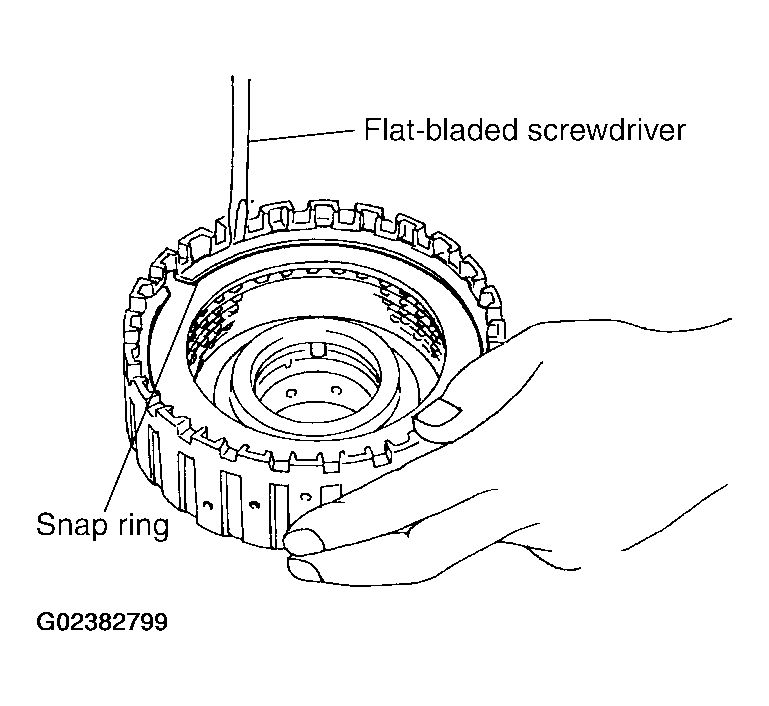

Fig 1: Removing Snap Ring From Direct Clutch Drum
G02382799Courtesy of NISSAN MOTOR CO., U.S.A.
