Direct Clutch: Assembly

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install drive plates, driven plates and retaining plate in direct clutch drum.
    CAUTION: Take care with the order of plates.

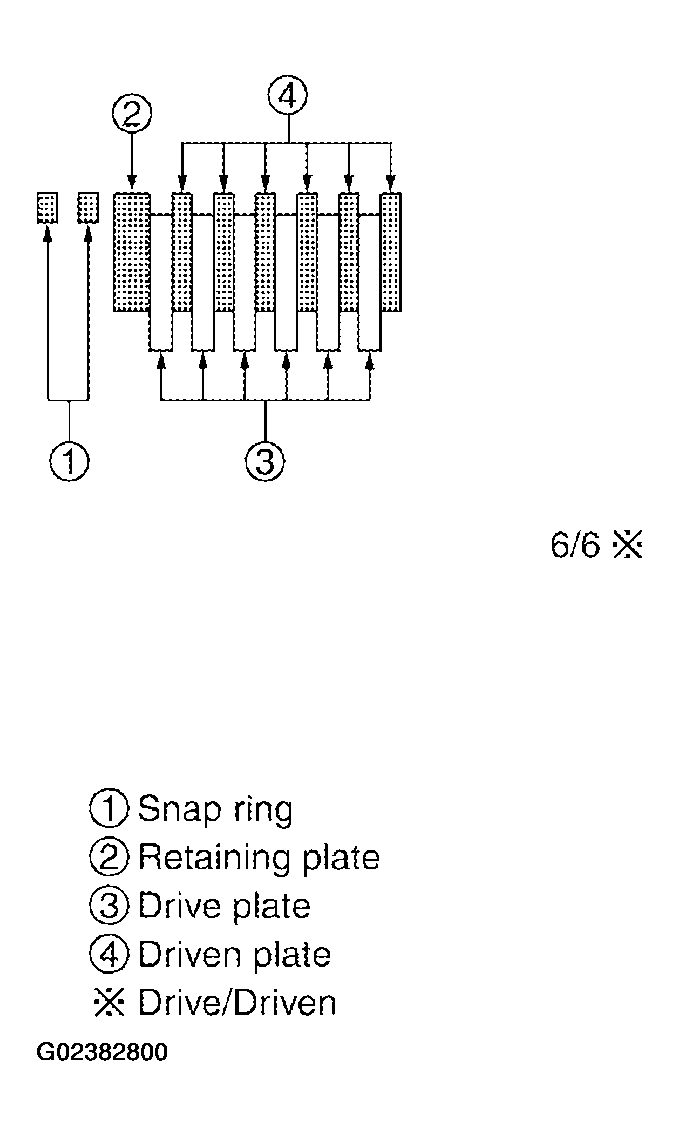

    Fig 1: Installing Drive Plates, Driven Plates & Retaining Plate In Direct Clutch Drum
    G02382800Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install snap rings in direct clutch drum, using flat-bladed screwdriver.

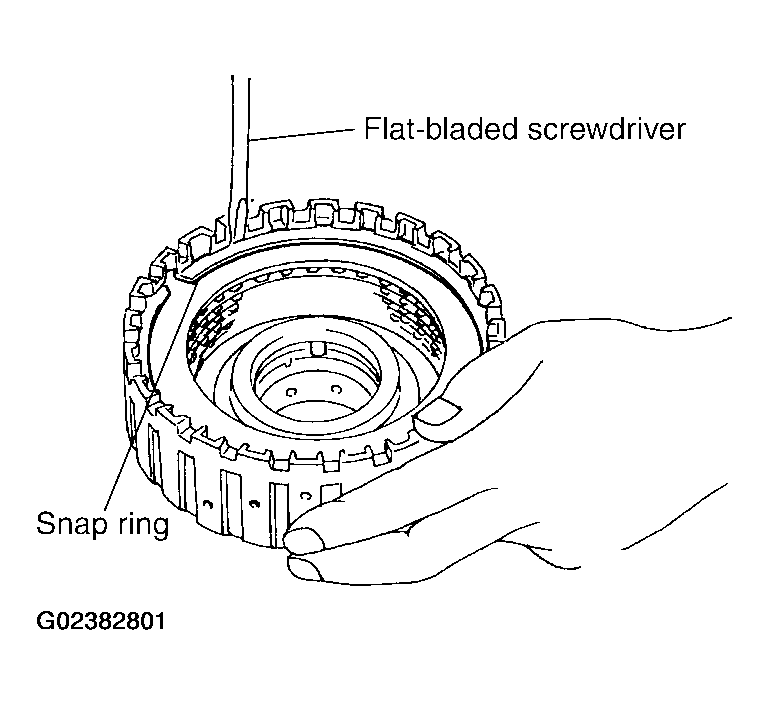

Fig 2: Installing Snap Rings In Direct Clutch Drum
G02382801Courtesy of NISSAN MOTOR CO., U.S.A.
