Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear propeller shaft. Refer to "REMOVAL - REAR DRIVE SHAFT ".
  2. Remove transfer from transmission (4WD models). Refer to "REMOVAL - TRANSFER ".
  3. Remove rear oil seal using a flat-bladed screwdriver or suitable tool.
    CAUTION: Be careful not to scratch rear extension assembly (2WD models) or adapter case assembly (4WD models).

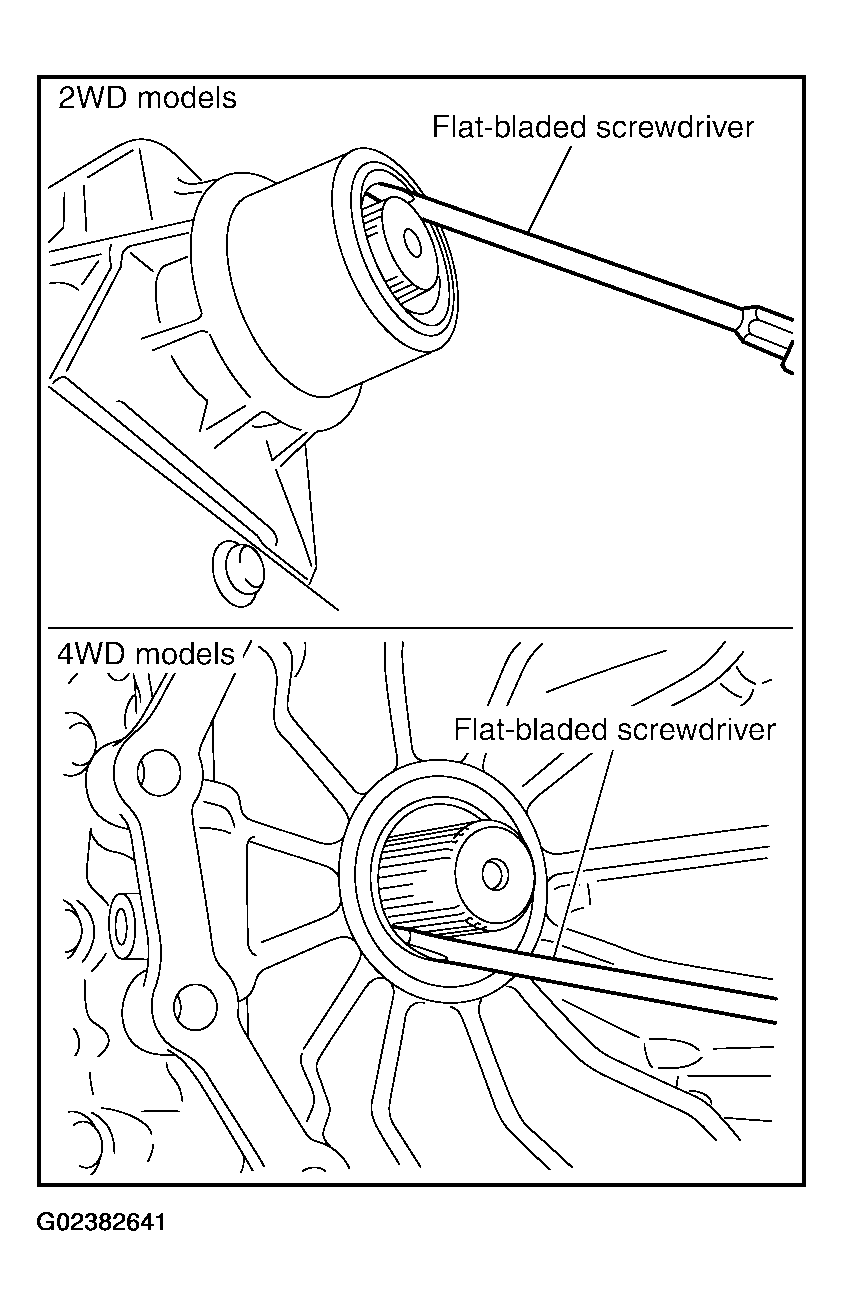

    Fig 1: Removing Rear Oil Seal (2WD & 4WD Models)
    G02382641Courtesy of NISSAN MOTOR CO., U.S.A.
