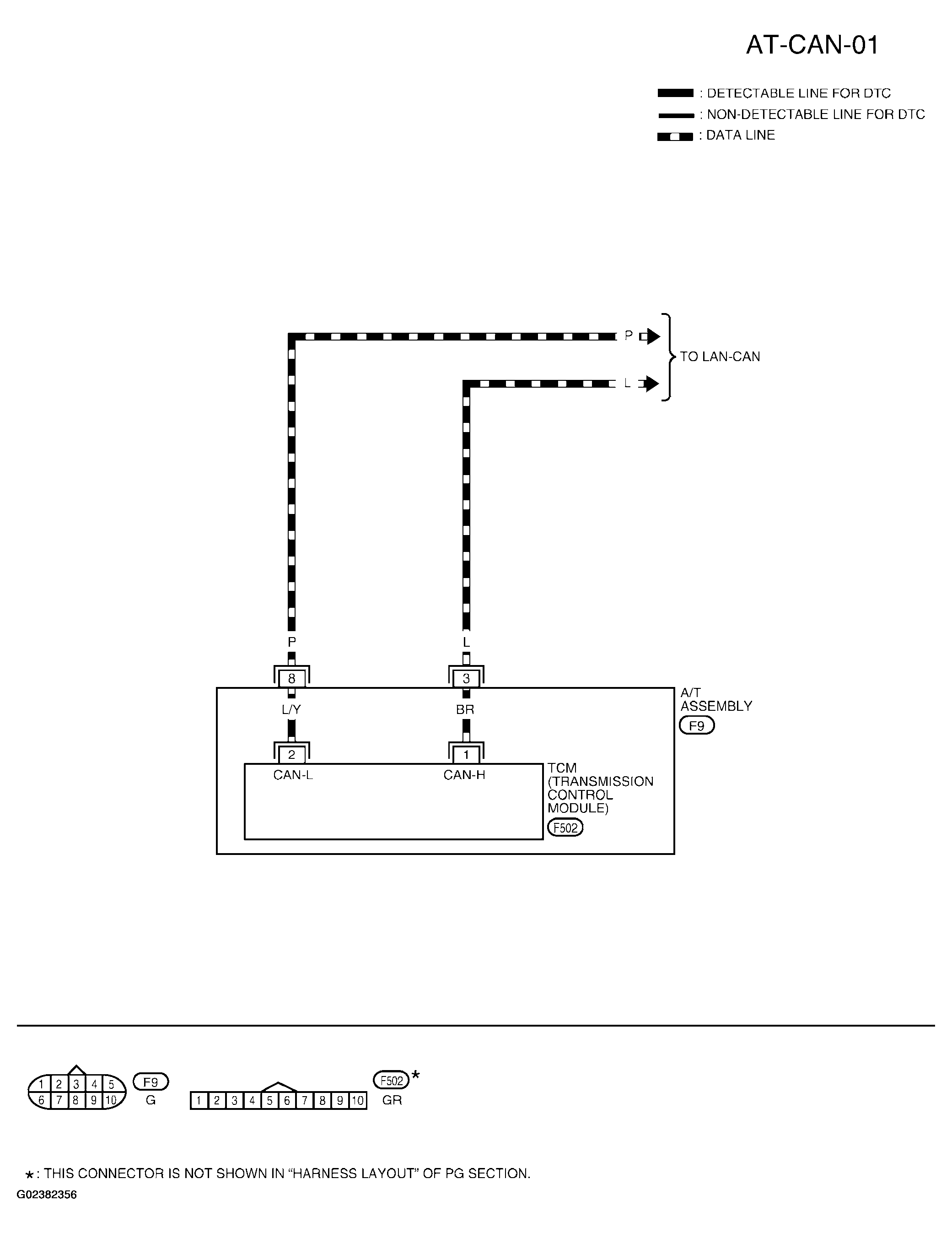

Wiring Diagram - AT - CAN
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.
*: THIS CONNECTOR IS NOT SHOWN IN "HARNESS LAYOUT" OF PG SECTION.
TCM terminals and data are reference value. Measured between each terminal and ground.
TCM TERMINALS AND DATA REFERENCE VALUE TABLE
| Terminal |
Wire color |
Item |
Condition |
Data (Approx.) |
| 3 |
L |
CAN-H |
- |
- |
| 8 |
P |
CAN-L |
- |
- |
