With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  3. Start engine and wait for at least 6 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

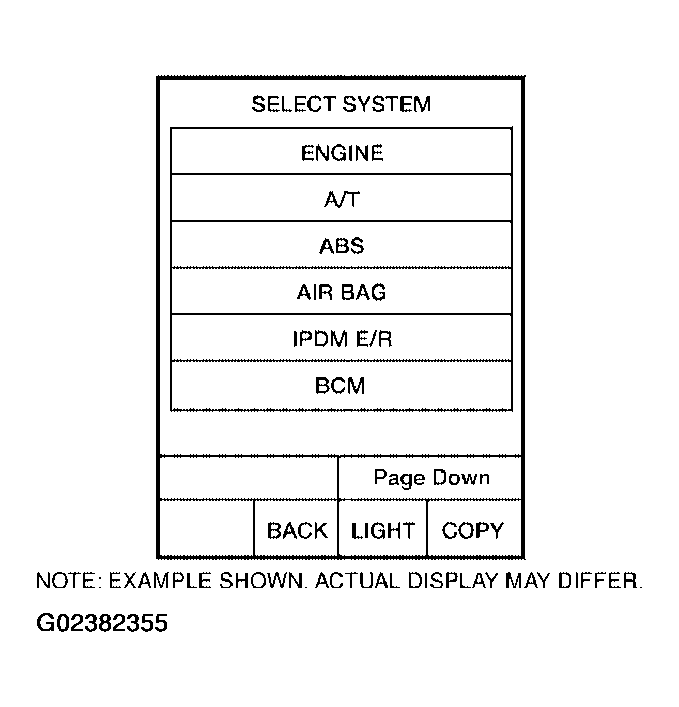

    Fig 1: Display SELECT SYSTEM Screen
    G02382355Courtesy of NISSAN MOTOR CO., U.S.A.
