Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK INPUT SIGNAL

    With CONSULT-II

    1. Start engine.
    2. Select "ECU INPUT SIGNALS" or "MAIN SIGNALS" in "DATA MONITOR" mode for "A/T" With CONSULT-II.
    3. Drive vehicle in the "D" position (1st --> 2nd gear), and confirm the ON/OFF actuation of the "ATF PRES SW 5".

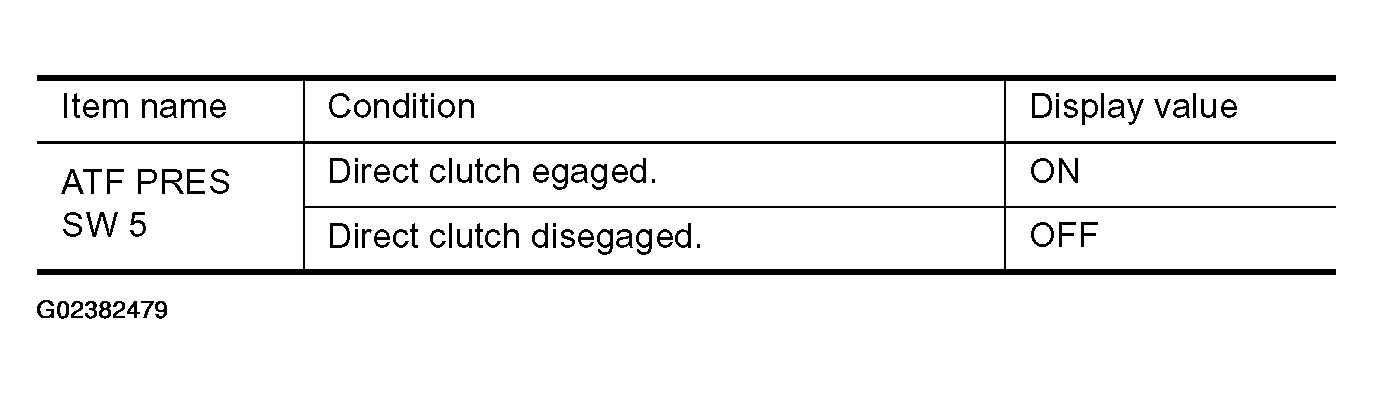

    Fig 1: ATF Pres SW 5 Display Value Chart
    G02382479Courtesy of NISSAN MOTOR CO., U.S.A.

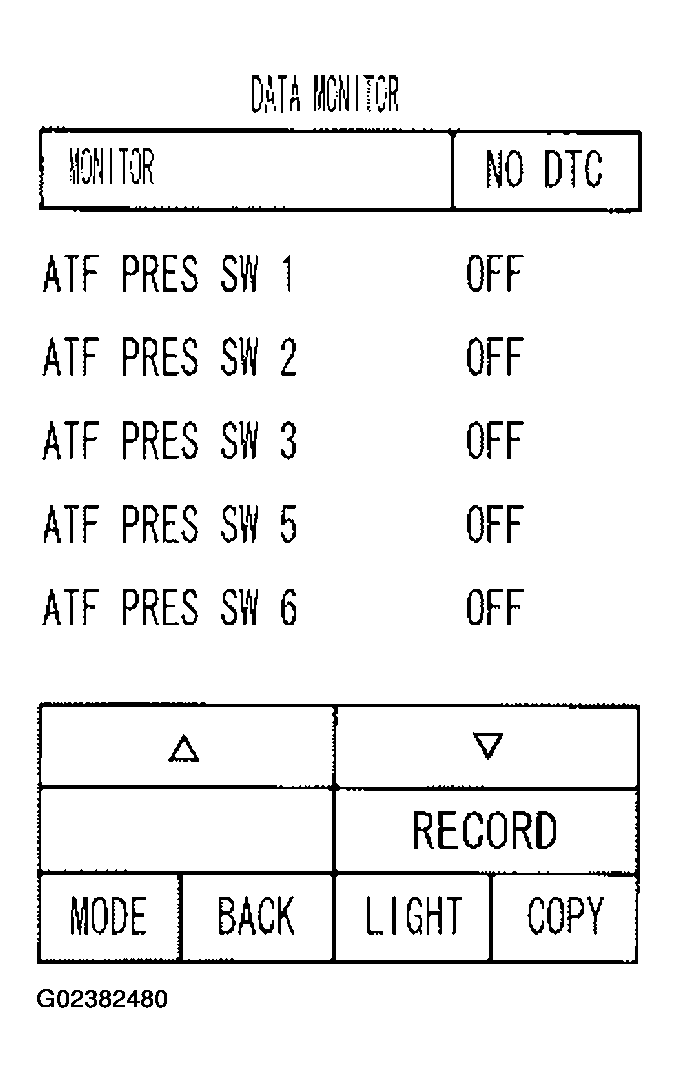

    Fig 2: Consult II DATA MONITOR Screen
    G02382480Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  4.
    2. NG: GO TO 2.
  2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

    Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace damaged parts.
  3. DETECT MALFUNCTIONING ITEM

    Check the following items:

    • The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
    2. NG: Repair or replace damaged parts.
  4. CHECK DTC

    Perform "DTC Confirmation Procedure".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO 2.
