Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INPUT SIGNALS
With CONSULT-II
1. Start the engine.
2. Select "SELECTION FROM MENU" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Drive vehicle in the "1" or "2" position ("1₁ " or "2² " gear), and confirm the ON/OFF actuation of the "ATF PRES SW 2" and "ON OFF SOL".

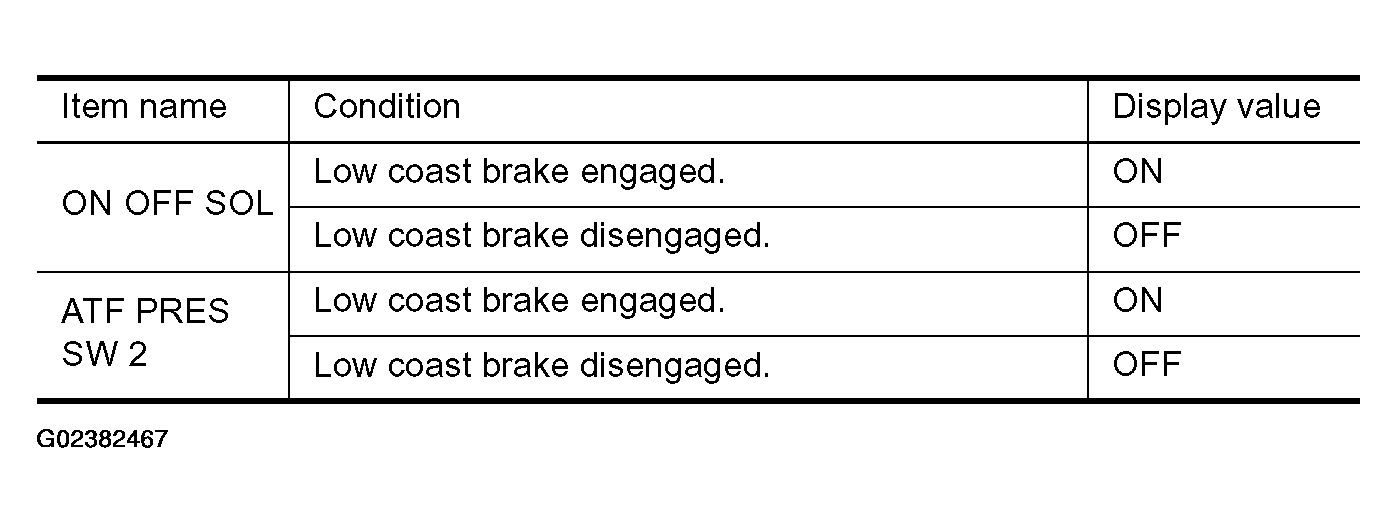

Fig 1: ON/OFF Solenoid & ATF Pres SW 2 Display Value Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

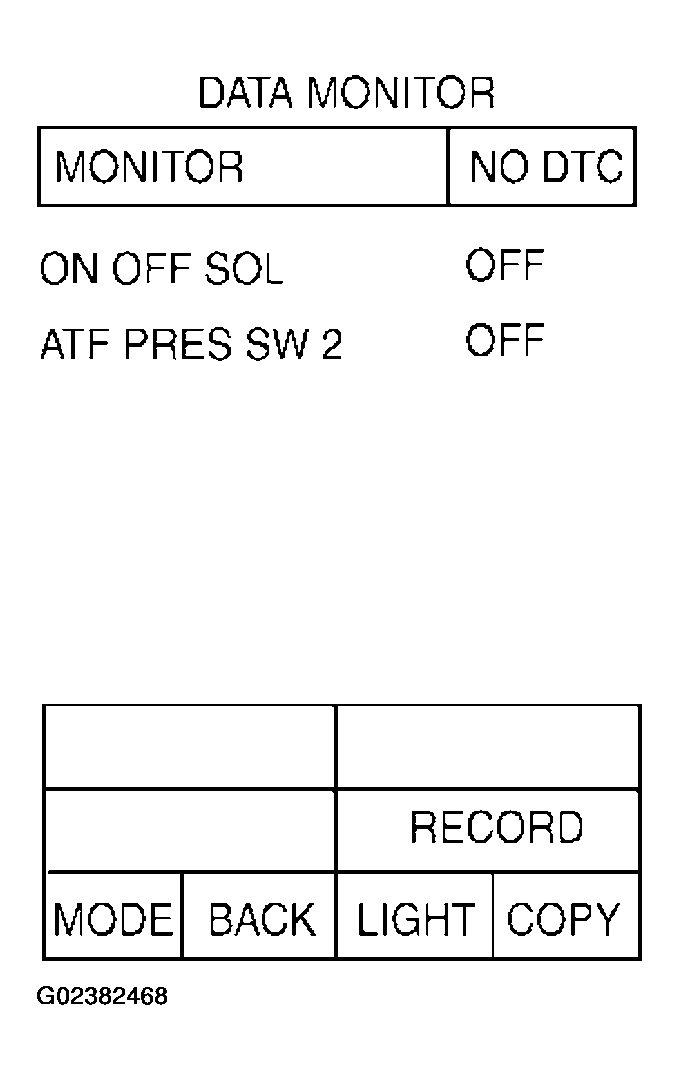

Fig 2: Display Data MONITOR MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: GO TO 4.
2. NG: GO TO 2.
CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

OK or NG
1. OK: GO TO 3.
2. NG: Repair or replace damaged parts.
DETECT MALFUNCTIONING ITEM
Check the following items:
- The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. NG: Repair or replace damaged parts.
CHECK DTC
Perform "DTC Confirmation Procedure".
- Refer to "DTC CONFIRMATION PROCEDURE ".
OK or NG
1. OK: INSPECTION END
2. NG: GO TO 2.
