With Consult-II
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch "ON". (Do not start engine.)

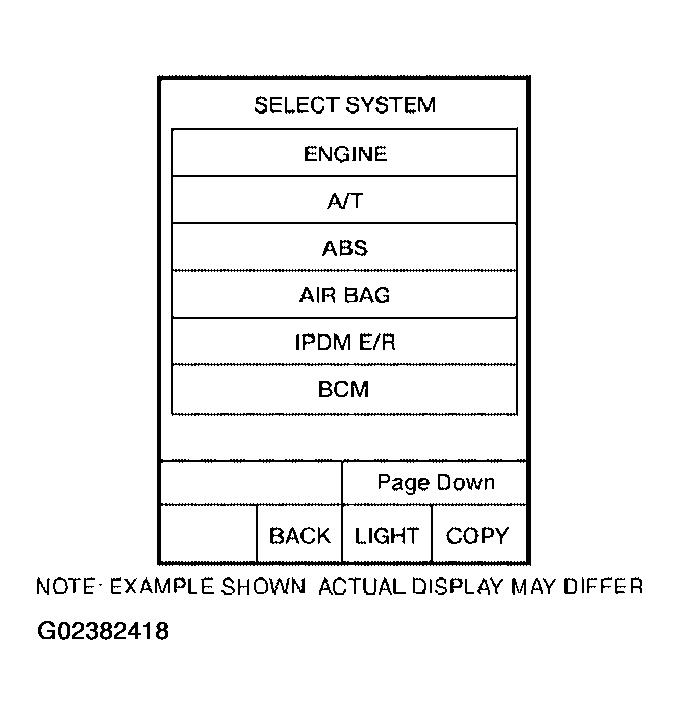

- Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
- Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 40 km/h (25 MPH) or more
ENGINE SPEED: 1,500 RPM or more
ACCELE POS: 0.5/8 or more
Selector lever: "D" position
Gear position (Turbine revolution sensor 1): 4th or 5th position
Gear position (Turbine revolution sensor 2): All position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.
- If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
