Diagnostic Procedure

WITH CONSULT-II

1. Start engine.
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out the value of "ATF TEMP SE 1".
   ATF TEMP SE 1 DISPLAY VALUE TABLE



   Item name	Condition °C (°F)	Display value (Approx.)
   ATF TEMP SE 1	0 (32) - 20 (68) - 80 (176)	2.2 - 1.8 - 0.6 V

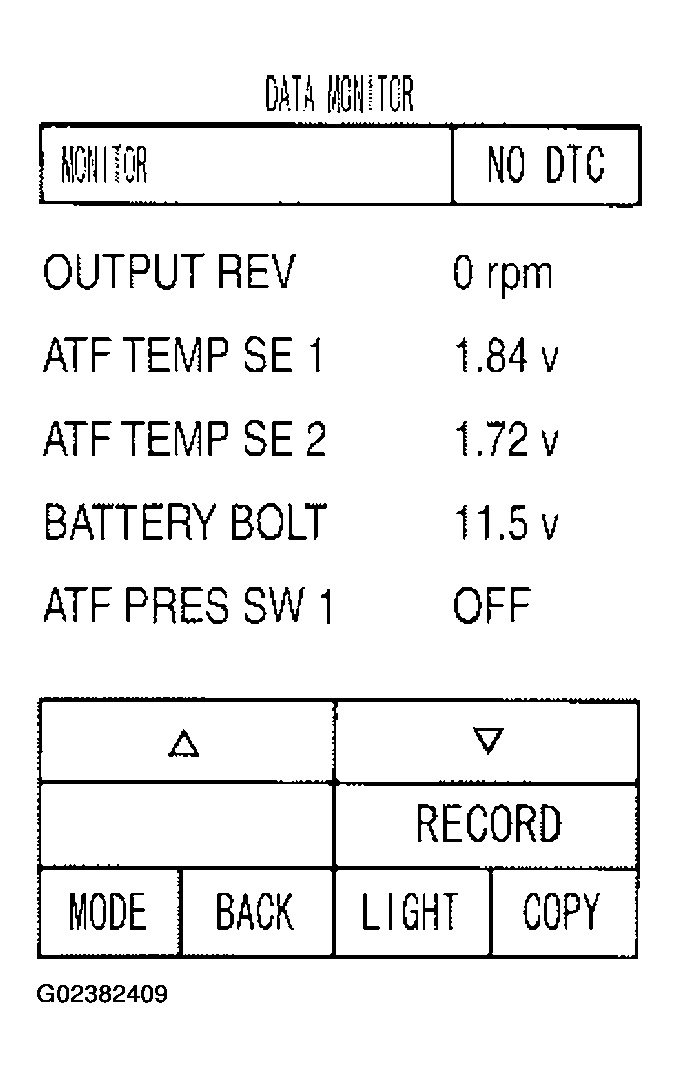

   Fig 1: Display DATA MONITOR Mode Screen (A/T Fluid Temperature Sensor 1 Signal)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: GO TO  3.

WITH CONSULT-II

1. Start engine.
2. Select "ECU INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out the value of "ATF TEMP SE 2".
   ATF TEMP SE 2 DISPLAY VALUE TABLE



   Item name	Condition °C (°F)	Display value (Approx.)
   ATF TEMP SE 1	0 (32) - 20 (68) - 80 (176)	2.2 - 1.7 - 0.45 V

   Fig 2: Display DATA MONITOR Mode Screen (A/T Fluid Temperature Sensor 2 Signal)

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO  8.
2. NG: GO TO  5.

Check A/T fluid temperature sensor 1. Refer to "A/T FLUID TEMPERATURE SENSOR 1 ".

OK or NG

1. OK: GO TO 4.
2. NG: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".

1. Disconnect park/neutral position switch connector and TCM connector.
2. Check continuity between park/neutral position switch connector terminals and TCM connector terminals.

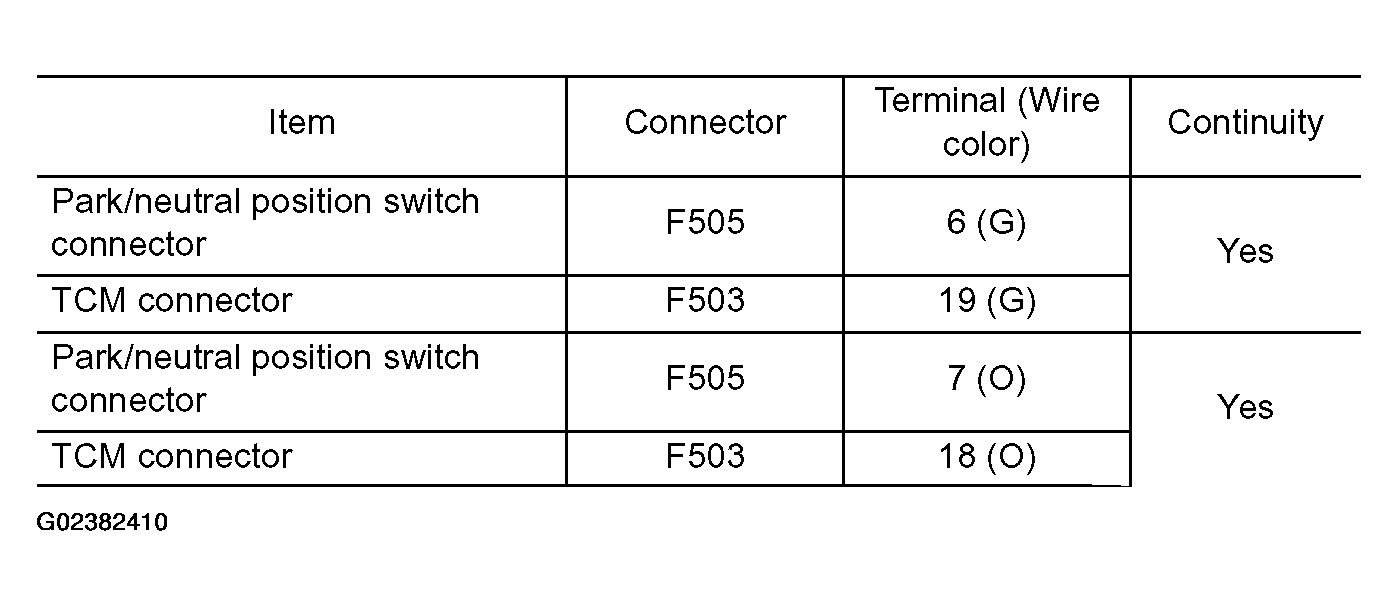

   Fig 3: Park/Neutral Position Switch Connector Terminals And TCM Connector Terminals Continuity Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

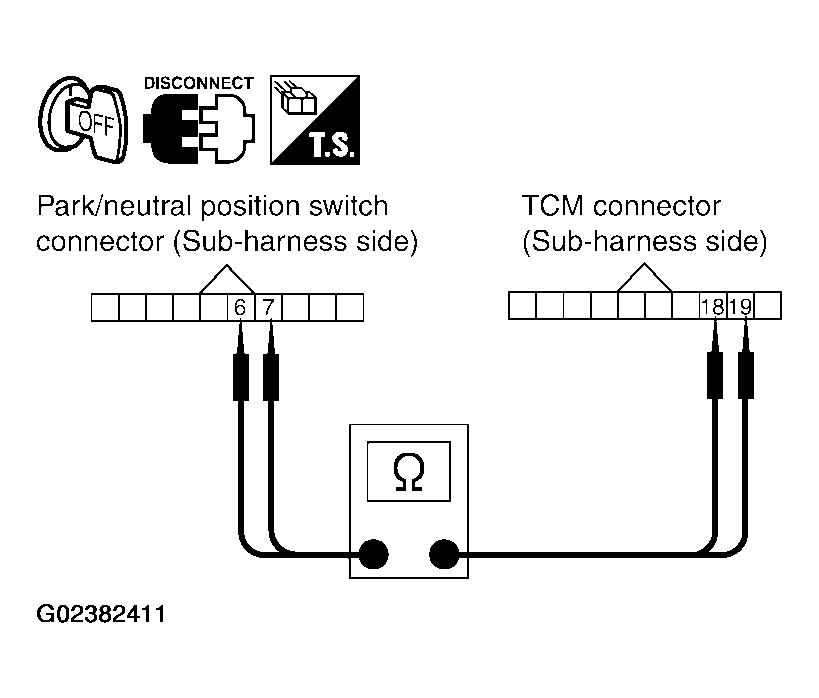

   Fig 4: Checking Continuity Between Park/Neutral Position Switch Connector Terminals & TCM Connector Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. If OK, check harness for short to ground and short to power.

OK or NG

1. OK: GO TO  7.
2. NG: Replace open circuit or short to ground and short to power in harness or connectors.

Check A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 ".

OK or NG

1. OK: GO TO 6.
2. NG: Replace the A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".

1. Disconnect A/T fluid temperature sensor 2 connector and TCM connector.
2. Check continuity between A/T fluid temperature sensor 2 connector terminals and TCM connector terminals.

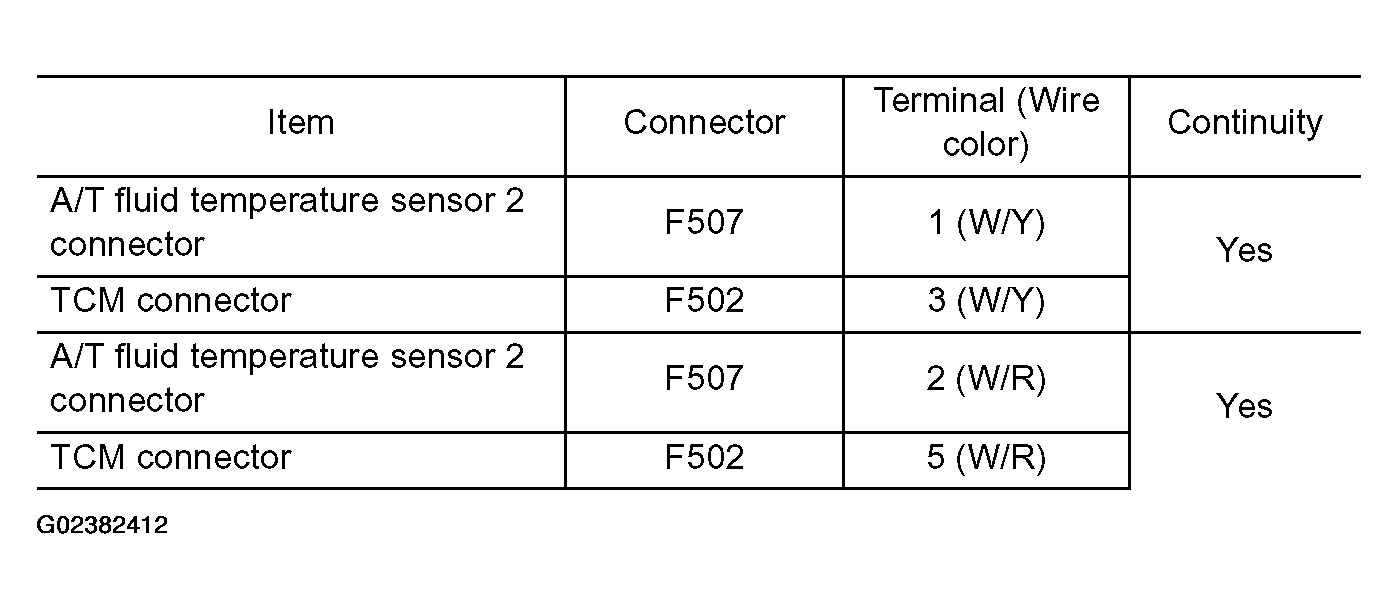

   Fig 5: A/T Fluid Temperature Sensor 2 Connector Terminals & TCM Connector Terminals Continuity Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.
   Fig 6: Checking Continuity Between A/T Fluid Temperature Sensor 2 Connector Terminals & TCM Connector Terminals

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. If OK, check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 7.
2. NG: Replace open circuit or short to ground and short to power in harness or connectors.

1. Check TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".
2. Reinstall any part removed.

OK or NG

1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. NG: Repair or replace damaged parts.

Perform "DTC Confirmation Procedure".

• Refer to "DTC CONFIRMATION PROCEDURE ".

OK or NG

1. OK: INSPECTION END
2. NG: GO TO  1.
