With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
  2. Engine start and wait at least 5 second.
  3. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

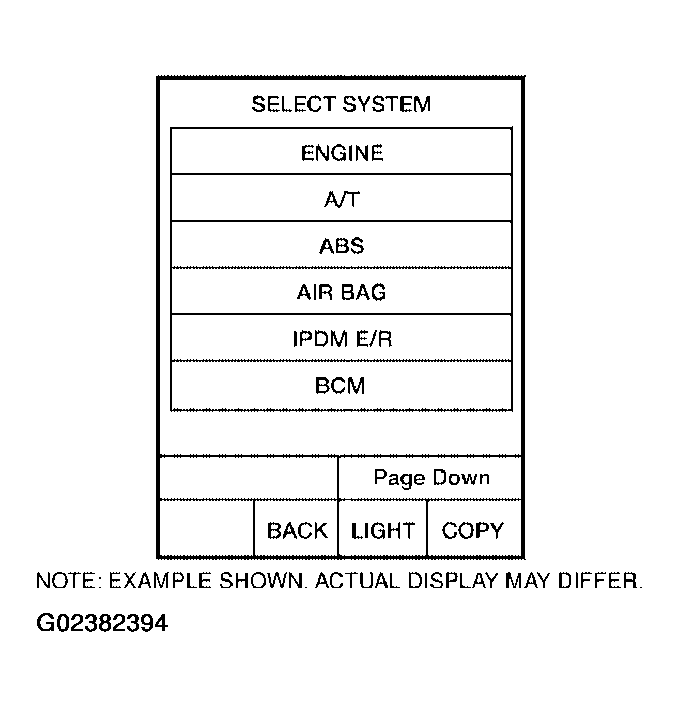

    Fig 1: Consult II SELECT SYSTEM Screen
    G02382394Courtesy of NISSAN MOTOR CO., U.S.A.
