With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON" and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

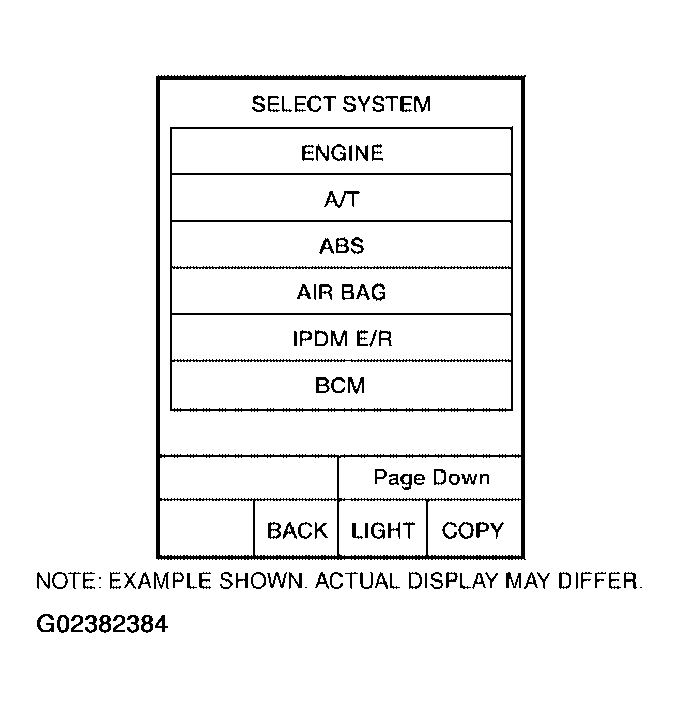

    Fig 1: Consult II SELECT SYSTEM Screen
    G02382384Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine and maintain the following conditions for at least 10 consecutive seconds.

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    ACCELE POSI: More than 1/8

    Selector lever: "D" position

  3. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
