Diagnostic Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK PNP SW CIRCUIT

    WITH CONSULT-II

    1. Turn ignition switch "ON". (Do not start engine.)
    2. Select "SELECTION FROM MENU" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
    3. Check if correct selector lever position (N/P, R or D) is displayed as selector lever is moved into each position.

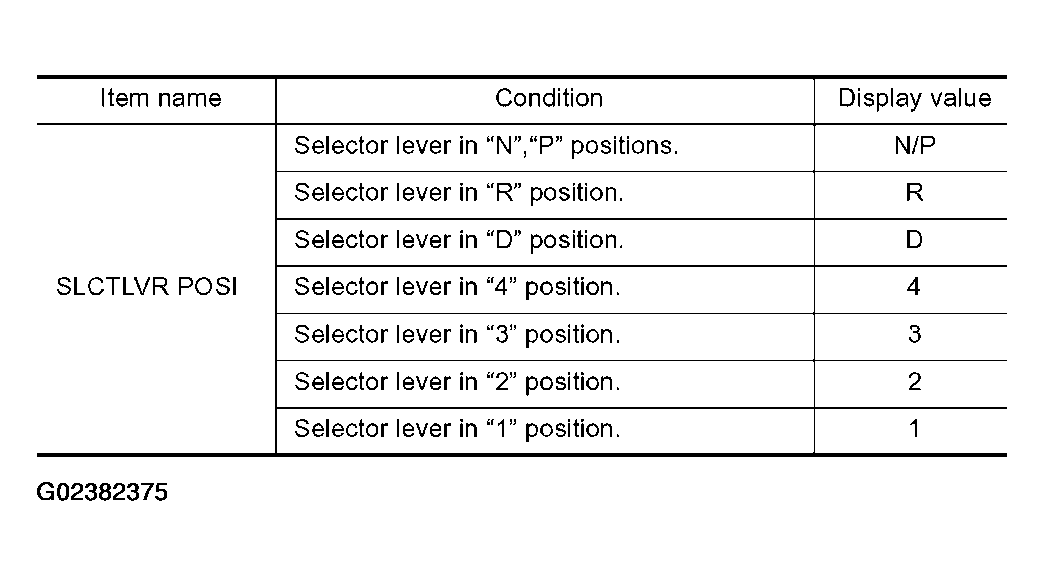

      Fig 1: Selector Lever Condition - Display Value Chart
      G02382375Courtesy of NISSAN MOTOR CO., U.S.A.

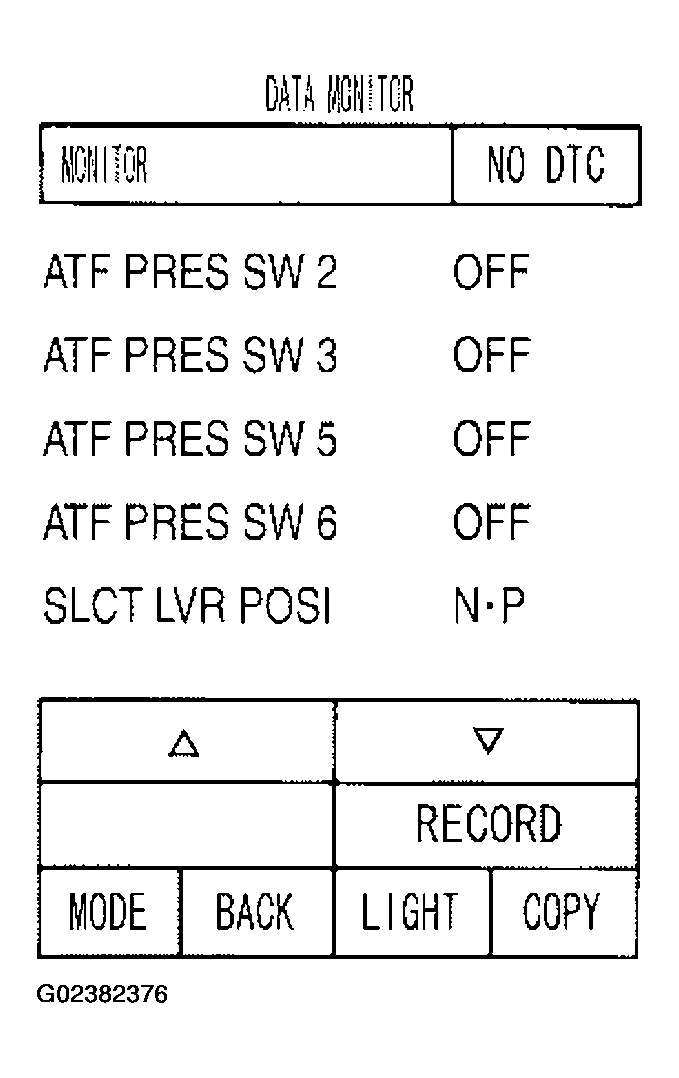

      Fig 2: Display DATA MONITOR Mode Screen
      G02382376Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO  5.
    2. NG: GO TO 2.
  2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

    Perform TCM power supply and ground circuit. Refer to "MAIN POWER SUPPLY AND GROUND CIRCUIT ".

    OK or NG

    1. OK: GO TO 3.
    2. NG: Repair or replace damaged parts.
  3. DETECT MALFUNCTIONING ITEM

    Check the following items:

    • A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

    OK or NG

    1. OK: GO TO 4.
    2. NG: Repair or replace damaged parts.
  4. CHECK SUB-HARNESS
    1. Remove control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
    2. Disconnect park/neutral position switch connector and TCM connector.
    3. Check continuity between park/neutral position switch connector terminals and TCM connector terminals.

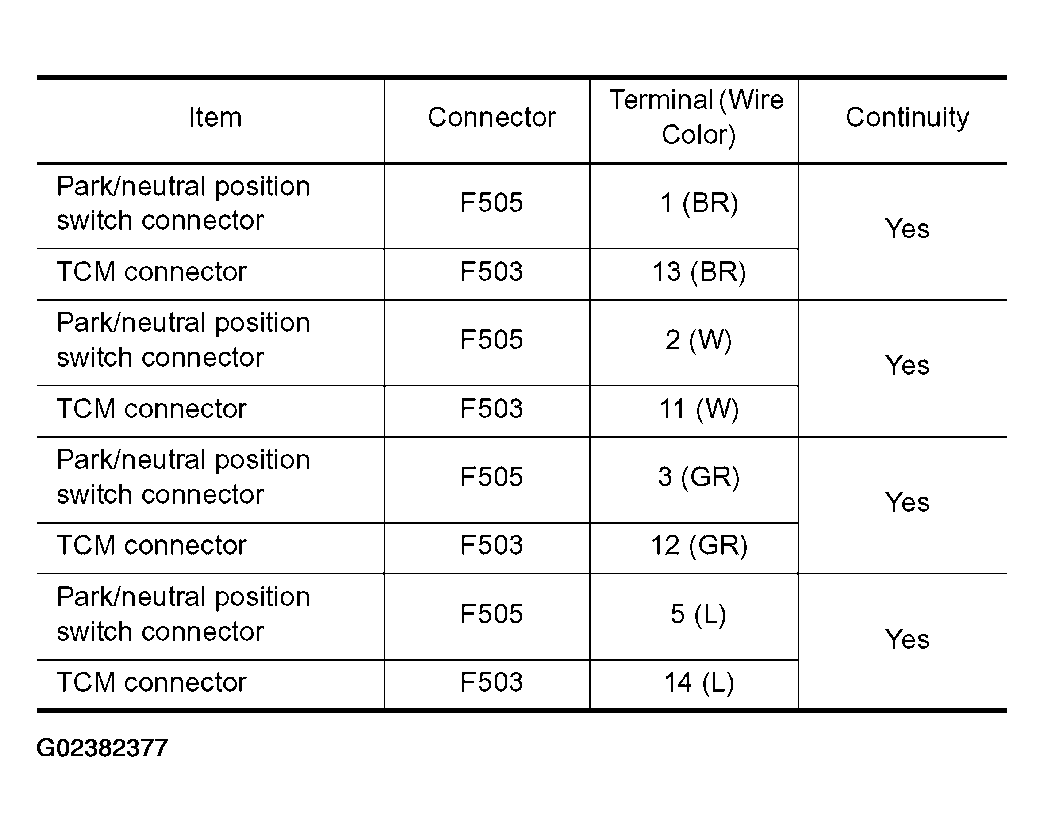

      Fig 3: Park/Neutral Position Switch Connector Terminals & TCM Connector Terminals Continuity Chart
      G02382377Courtesy of NISSAN MOTOR CO., U.S.A.

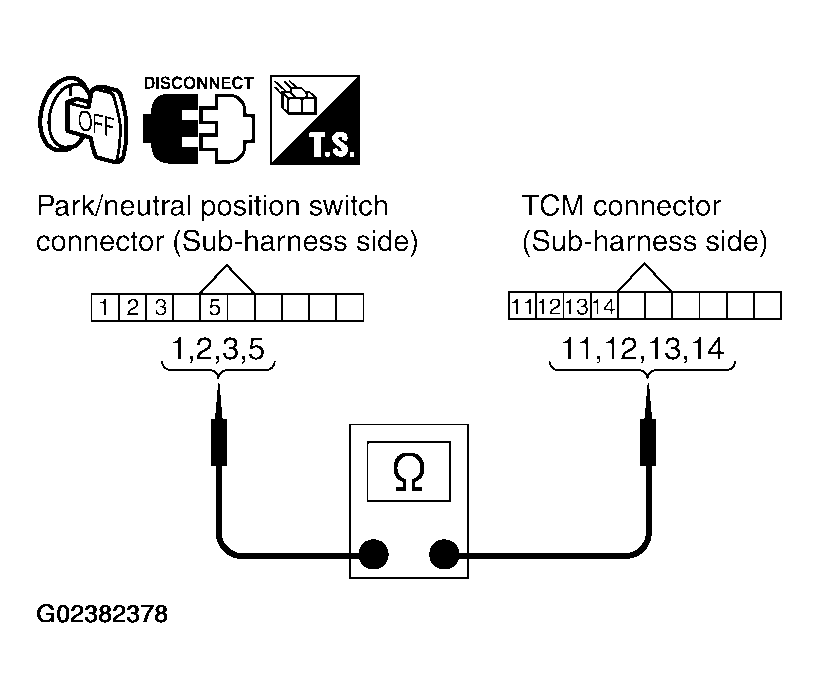

      Fig 4: Checking Continuity Between Park/Neutral Position Switch Connector Terminals & TCM Connector Terminals
      G02382378Courtesy of NISSAN MOTOR CO., U.S.A.
    4. If OK, check harness for short to ground and short to power.
    5. Reinstall any part removed.

    OK or NG

    1. OK: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
    2. NG: Replace open circuit or short to ground and short to power in harness or connectors.
  5. CHECK DTC

    Perform "DTC Confirmation Procedure".

    OK or NG

    1. OK: INSPECTION END
    2. NG: GO TO  2.
