Wiring Diagram - AT - STSIG

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

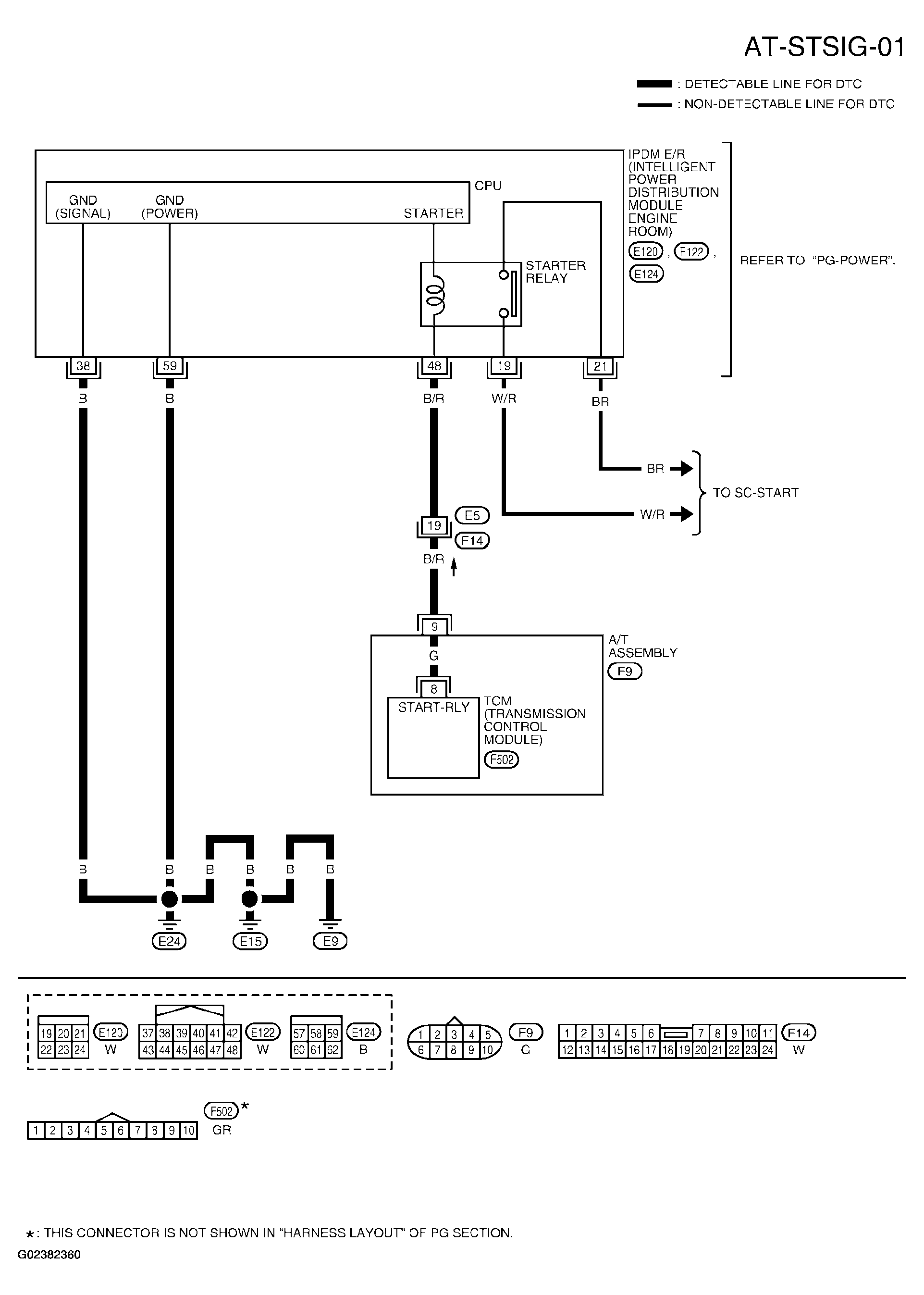

Fig 1: Wiring Diagram - AT-STSIG-01

Courtesy of NISSAN MOTOR CO., U.S.A.

*: THIS CONNECTOR IS NOT SHOWN IN "HARNESS LAYOUT" OF P

TCM terminals and data are reference value. Measured between each terminal and ground.

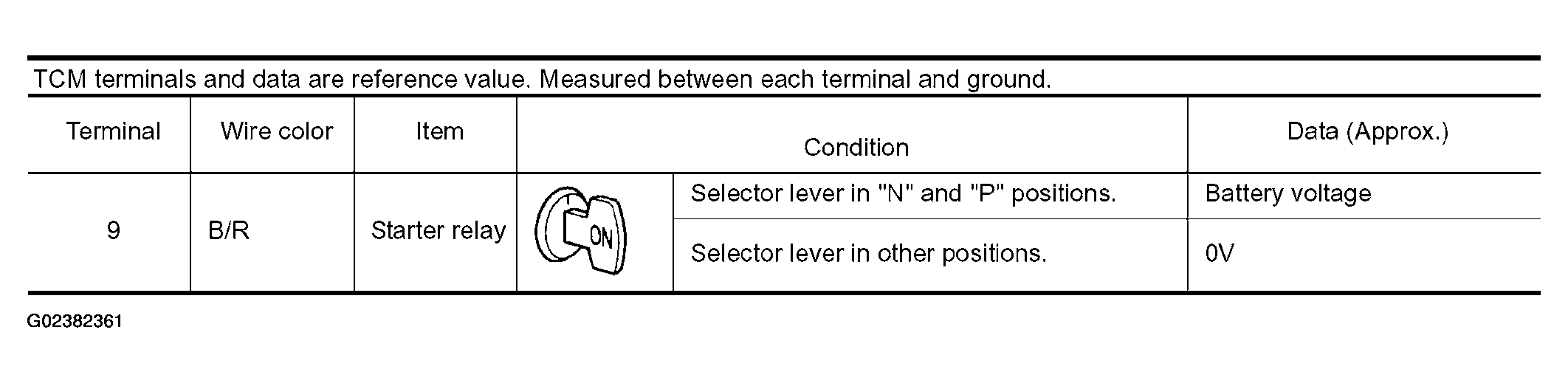

Fig 2: TCM Terminals Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
