Removal and Installation

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

4X2

Refer to the figure below for air breather hose removal and installation procedure.

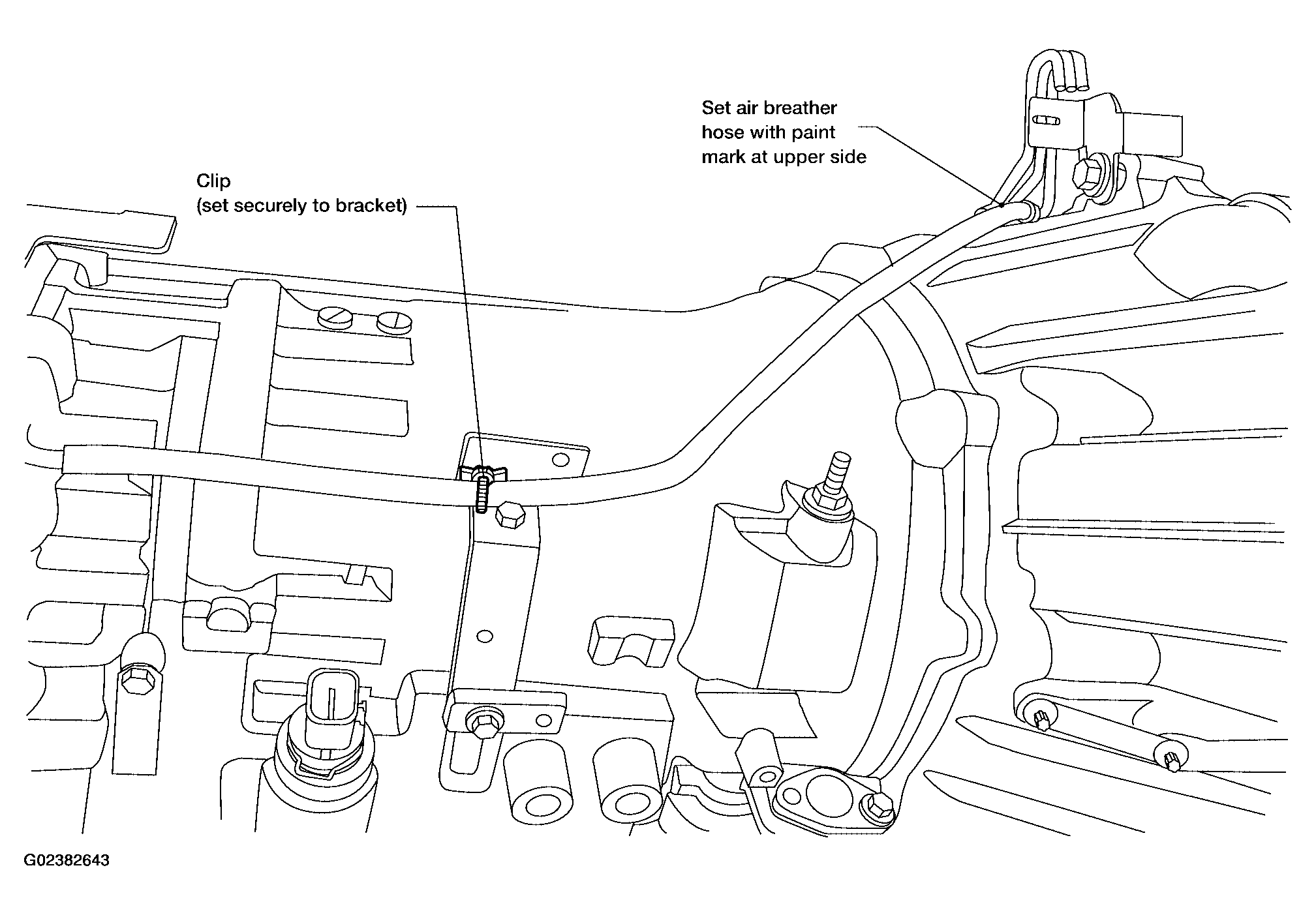

Fig 1: Removing/Installing Air Breather Hose (4X2)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

When installing an air breather hose, be careful not to be crushed or blocked by folding or bending the hose.
When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend portion.

4X4

Refer to the figure below for air breather hose removal and installation procedure.

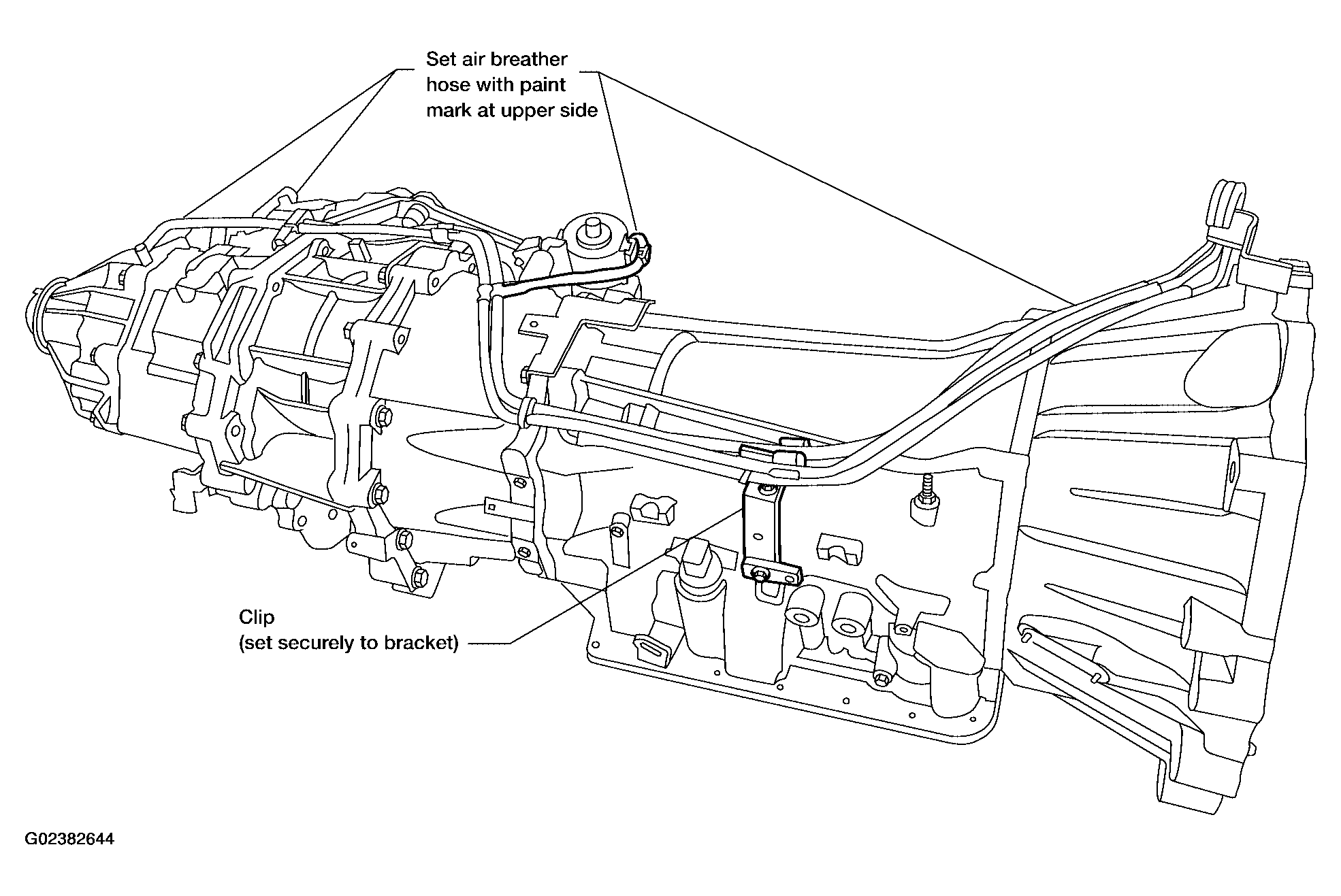

Fig 2: Removing/Installing Air Breather Hose (4X4)

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

When installing an air breather hose, be careful not to be crushed or blocked by folding or bending the hose.
When inserting a hose to the transmission tube, be sure to insert it fully until its end reaches the tube bend portion.
