Shift Lock Solenoid

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Check operation by applying battery voltage to the A/T device.

CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

SHIFT LOCK SOLENOID CONNECTOR TERMINALS CONNECTION TABLE

Connector No.	Terminal No.
M203	9 (Battery voltage) - 10 (Ground)

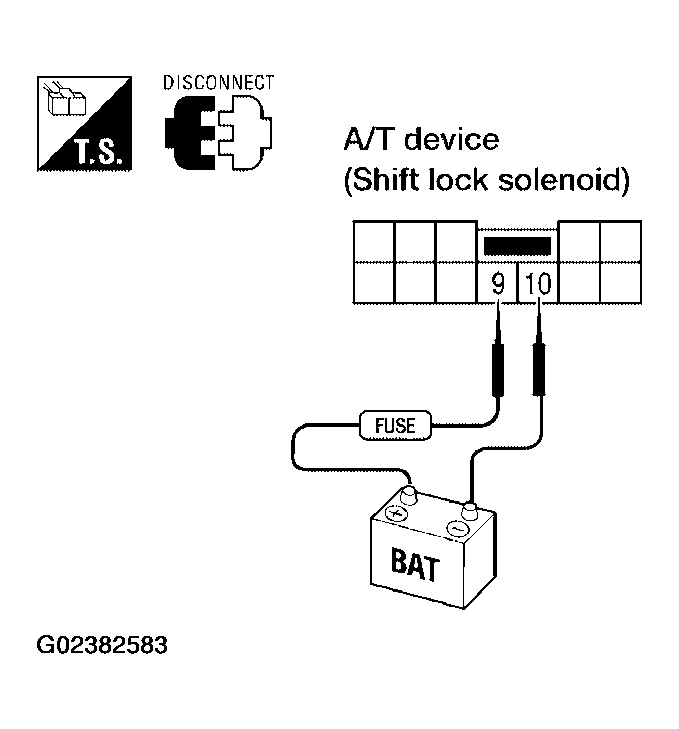

Fig 1: Checking Shift Lock Solenoid Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
