Detention Switch

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

For key:

Check continuity between terminals 5 and 6 of the A/T device.

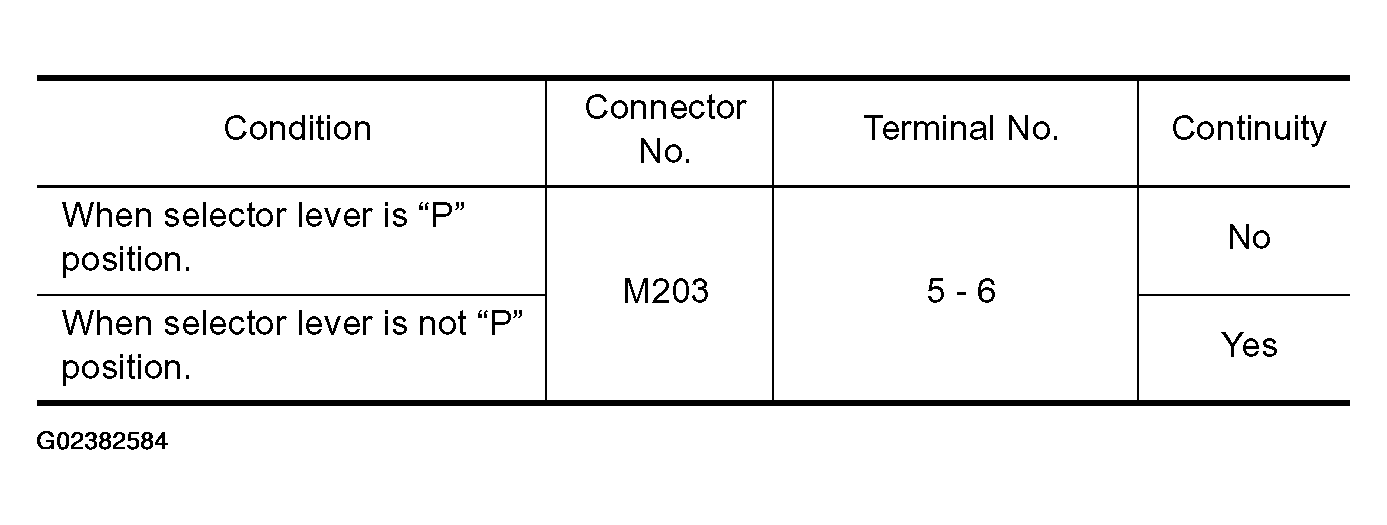

Fig 1: A/T Device Harness Connector Terminals Continuity Chart (For Key)
Courtesy of NISSAN MOTOR CO., U.S.A.

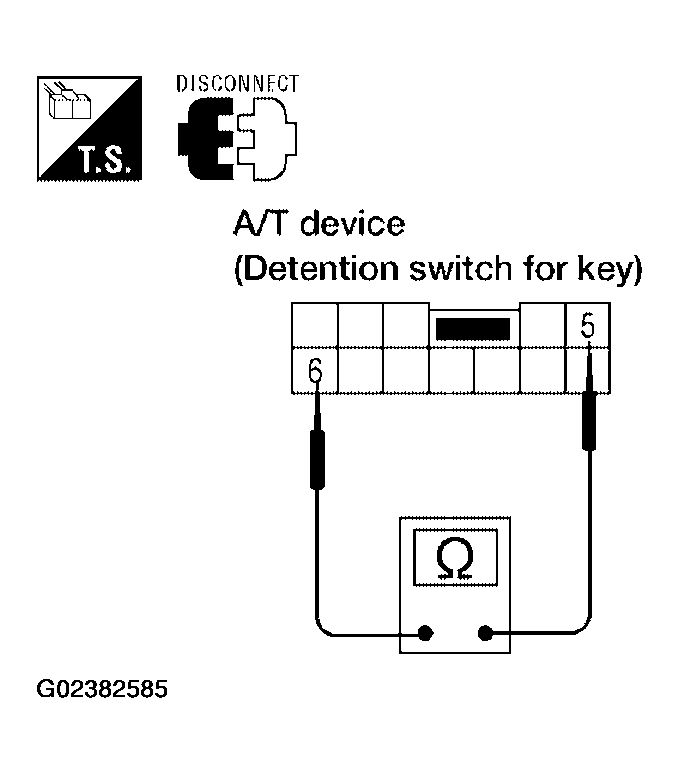

Fig 2: Checking Continuity Between Terminals Of A/T Device Harness Connector Terminals 5 & 6 (For Key)
Courtesy of NISSAN MOTOR CO., U.S.A.

For shift:

Check continuity between terminals 3 and 4 of the A/T device.

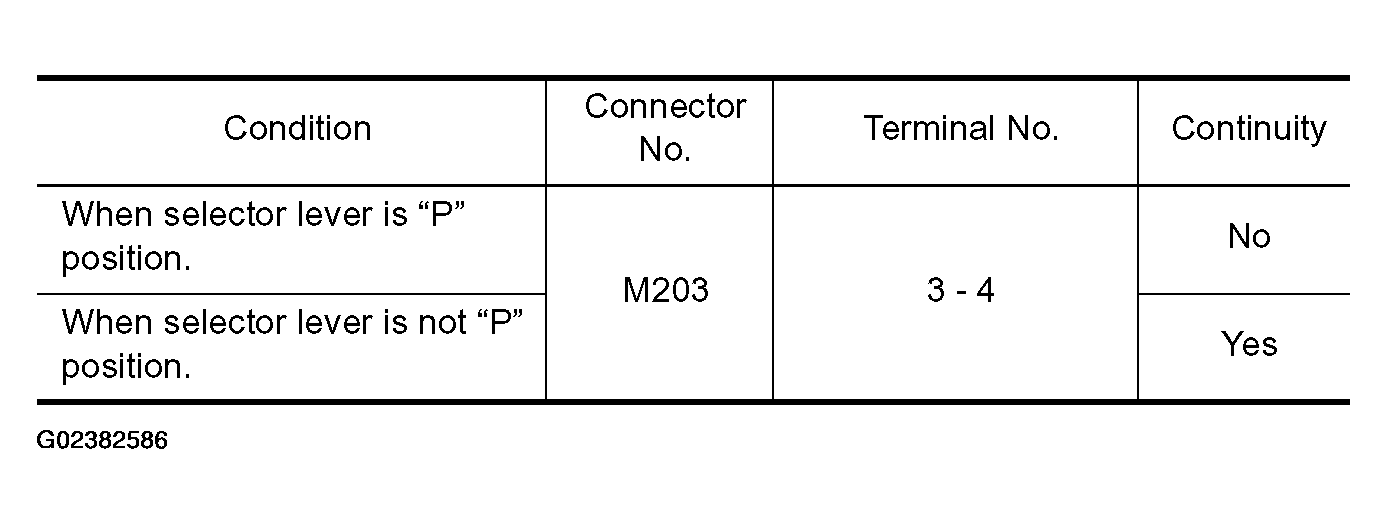

Fig 1: A/T Device Terminals Continuity Chart (For Shift)
Courtesy of NISSAN MOTOR CO., U.S.A.

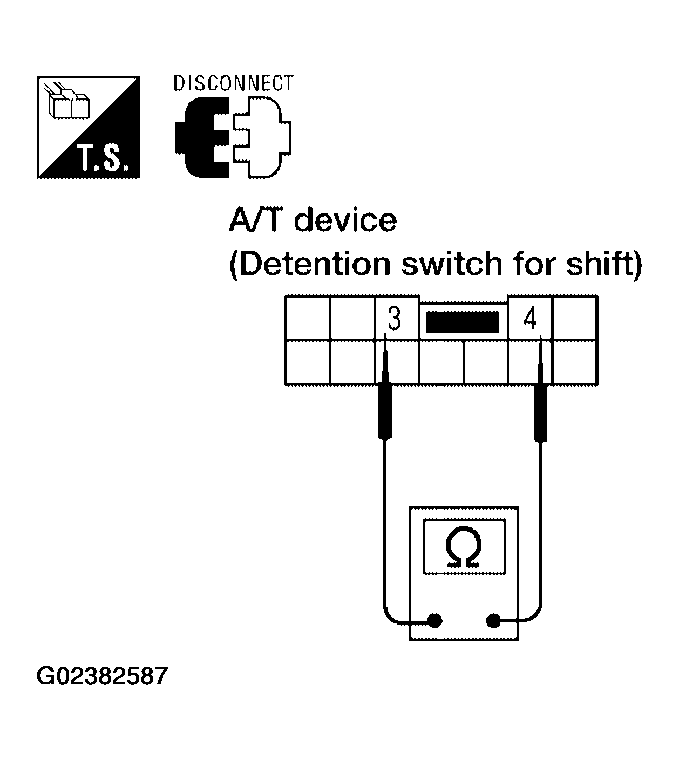

Fig 2: Checking Continuity Between Terminals 3 & 4 Of A/T Device (For Shift)
Courtesy of NISSAN MOTOR CO., U.S.A.
