A/T Fluid Cooler Inspection Procedure

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the coffee filter for debris.
  1. If small metal debris less than 1 mm (0.040 in) in size or metal powder is found in the coffee filter, this is normal. If normal debris is found, the A/T fluid cooler/radiator can be re-used and the procedure is ended.

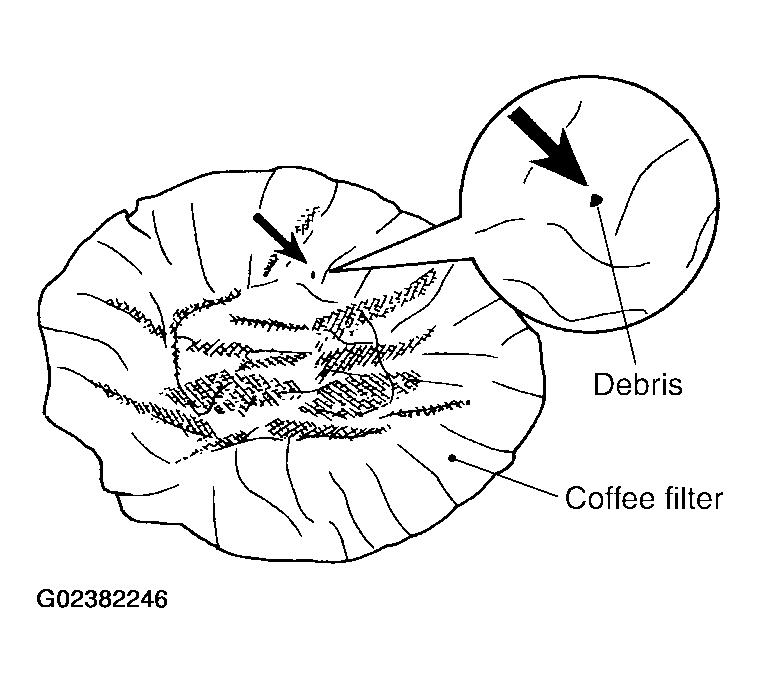

    Fig 1: Identifying Coffee Filter & Debris
    G02382246Courtesy of NISSAN MOTOR CO., U.S.A.
  2. If one or more pieces of debris are found that are over 1 mm (0.040 in) in size and/or peeled clutch facing material is found in the coffee filter, the fluid cooler is not serviceable. The A/T fluid cooler/radiator must be replaced and the inspection procedure is ended. Refer to "RADIATOR ".

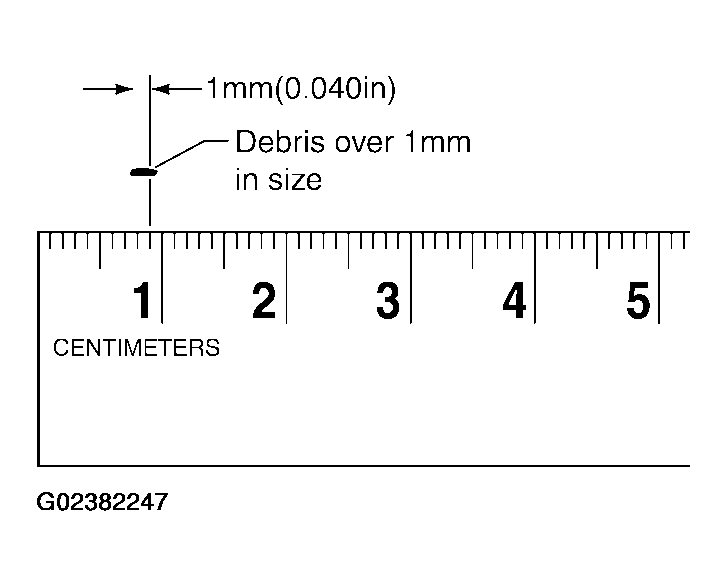

    Fig 2: Measuring Debris Size
    G02382247Courtesy of NISSAN MOTOR CO., U.S.A.
