Normal Control

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Each clutch is adjusted to the necessary pressure to match the engine drive force.

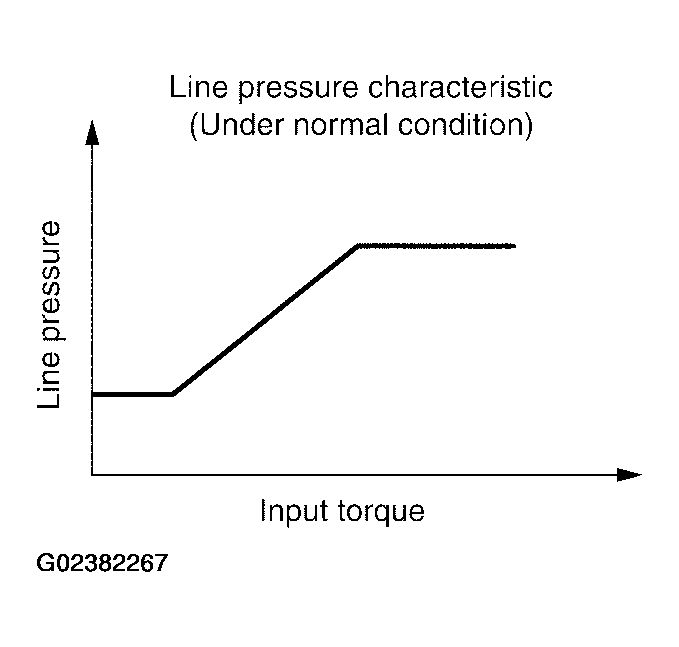

Fig 1: TCM Line Pressure Graph (Normal Control)
G02382267Courtesy of NISSAN MOTOR CO., U.S.A.
