Back-up Control (Engine Brake)

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

When the select operation is performed during driving and the transmission is shifted down, the line pressure is set according to the vehicle speed.

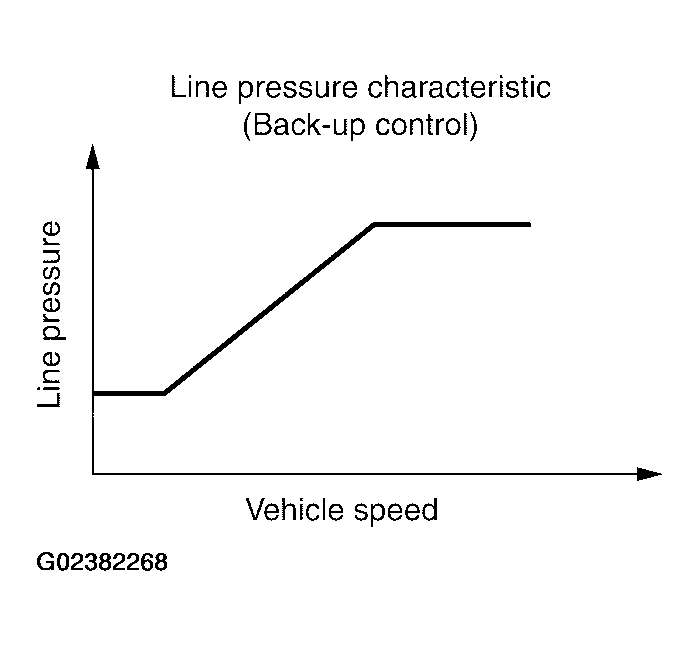

Fig 1: TCM Line Pressure Graph - Back-up Control (Engine Brake)
G02382268Courtesy of NISSAN MOTOR CO., U.S.A.
