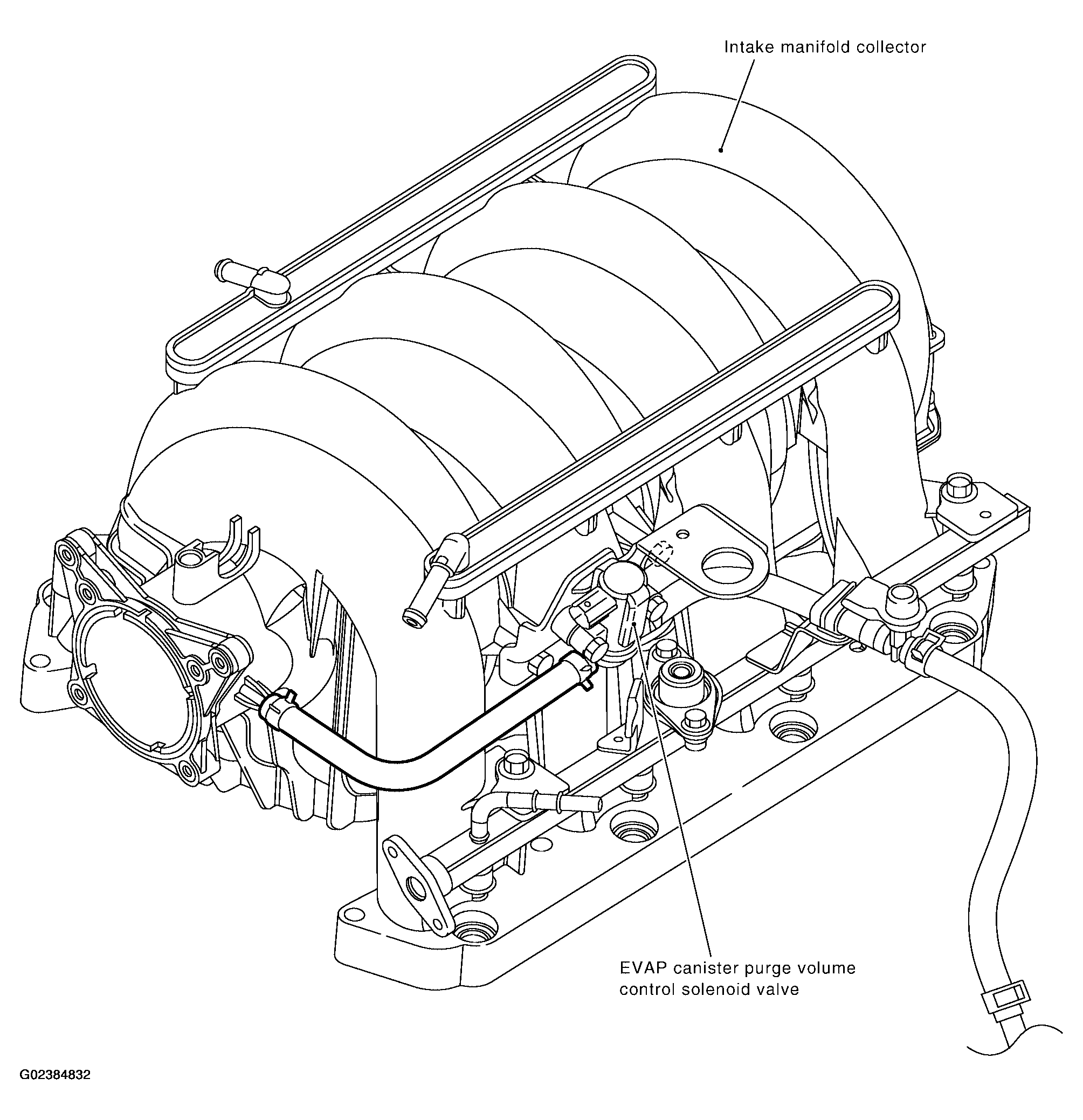

Vacuum Hose Drawing
WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
Refer to "SYSTEM DIAGRAM " for Vacuum Control System.
