Section 1203 (Engine Control System)
>>
Trouble Diagnosis
>>
CONSULT-II Function (ENGINE)
>>
Self-Diag Results Mode
>>
Freeze Frame Data and 1st Trip Freeze Frame Data
Freeze Frame Data and 1st Trip Freeze Frame Data
WARNING:
This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

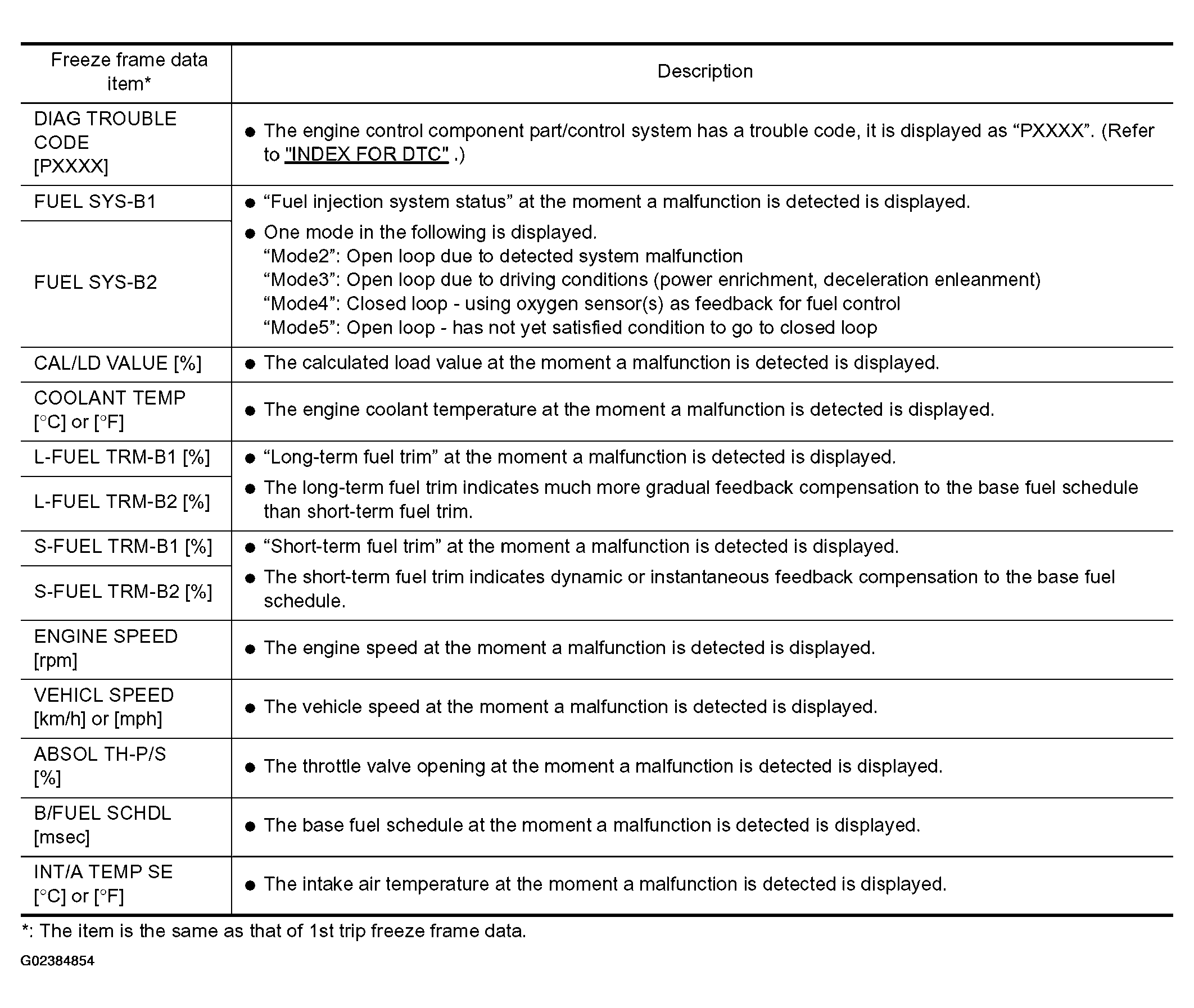

Fig 1: Freeze Frame Data & 1st Trip Freeze Frame Data
Courtesy of NISSAN MOTOR CO., U.S.A.
