Relationship Between Mil, Diagnostic Trouble Codes, 1ST Trip Diagnostic Trouble Codes And Driving Patterns Except For "Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

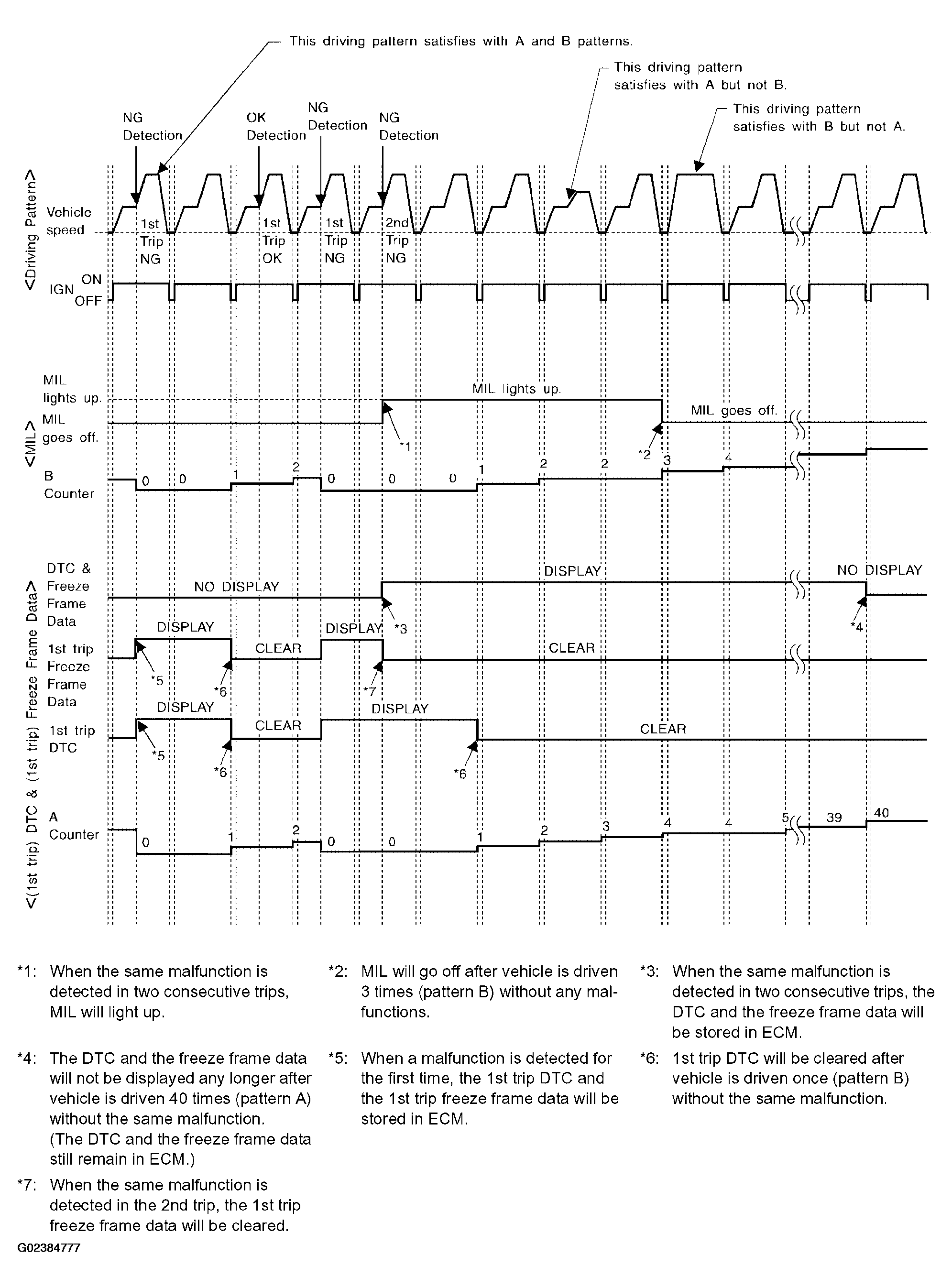

Fig 1: Relationship Graph Between MIL, DTC, 1ST Trip DTC & Driving Patterns - Except Misfire

Courtesy of NISSAN MOTOR CO., U.S.A.
