No Tools

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

A SRT code itself can not be displayed while only SRT status can be.

  1. Turn ignition switch ON and wait 20 seconds.
  2. SRT status is indicated as shown below.
    • When all SRT codes are set, MIL lights up continuously.
    • When any SRT codes are not set, MIL will flash periodically for 10 seconds.

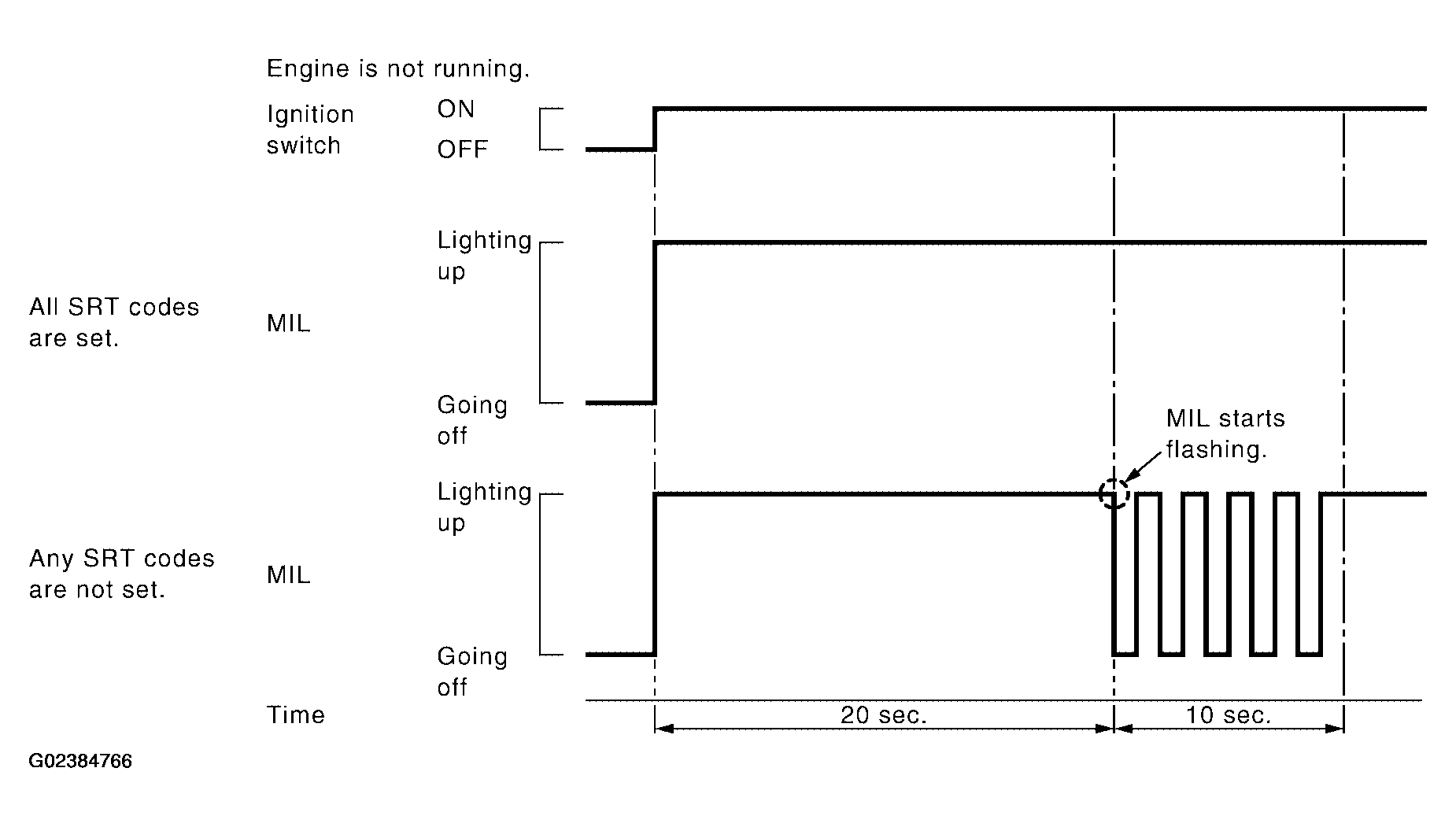

    Fig 1: Display SRT Status In DTC Confirmation Mode
    G02384766Courtesy of NISSAN MOTOR CO., U.S.A.
