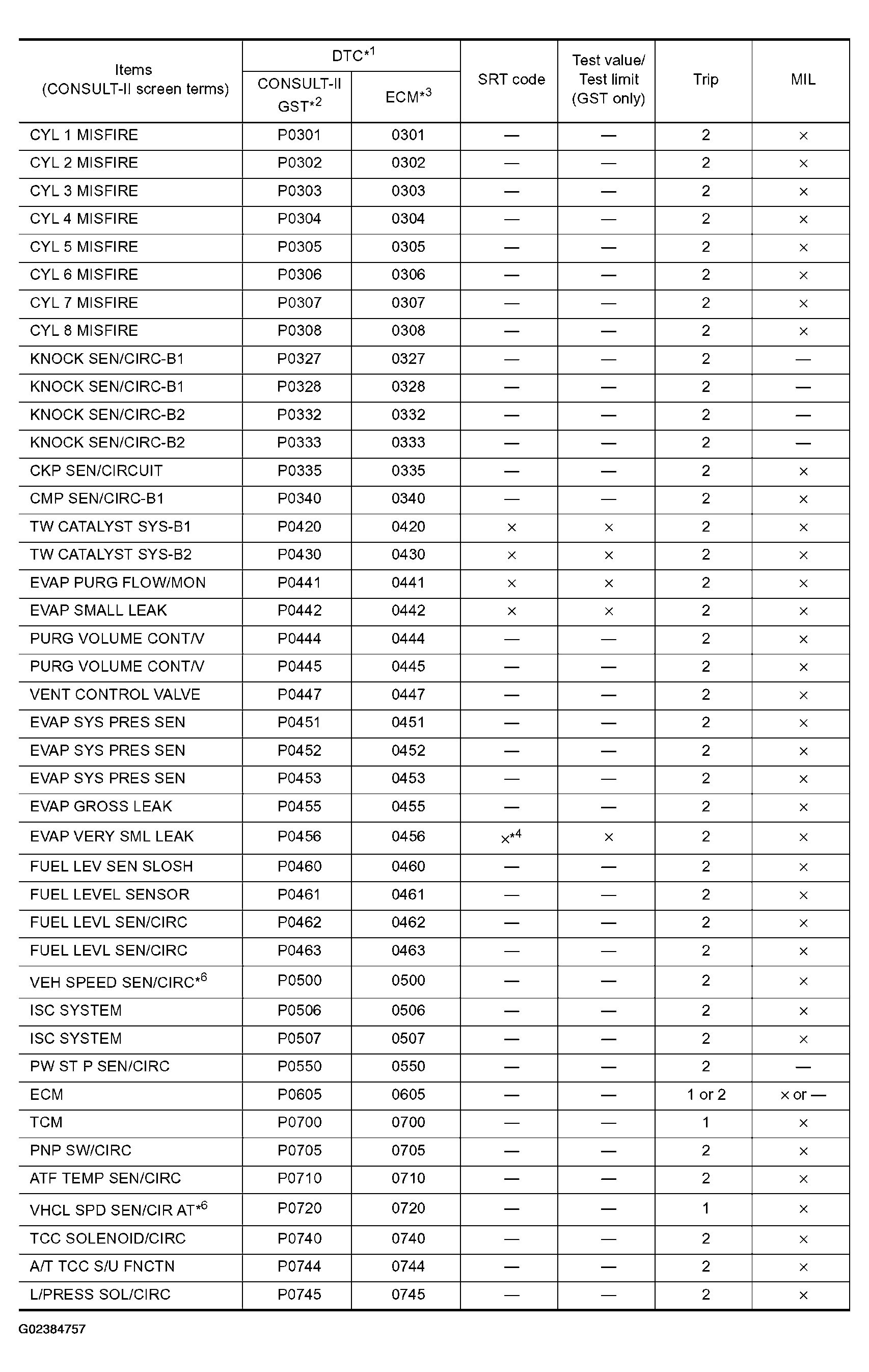

Fig 1: Emission-Related Diagnostic Information Items (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

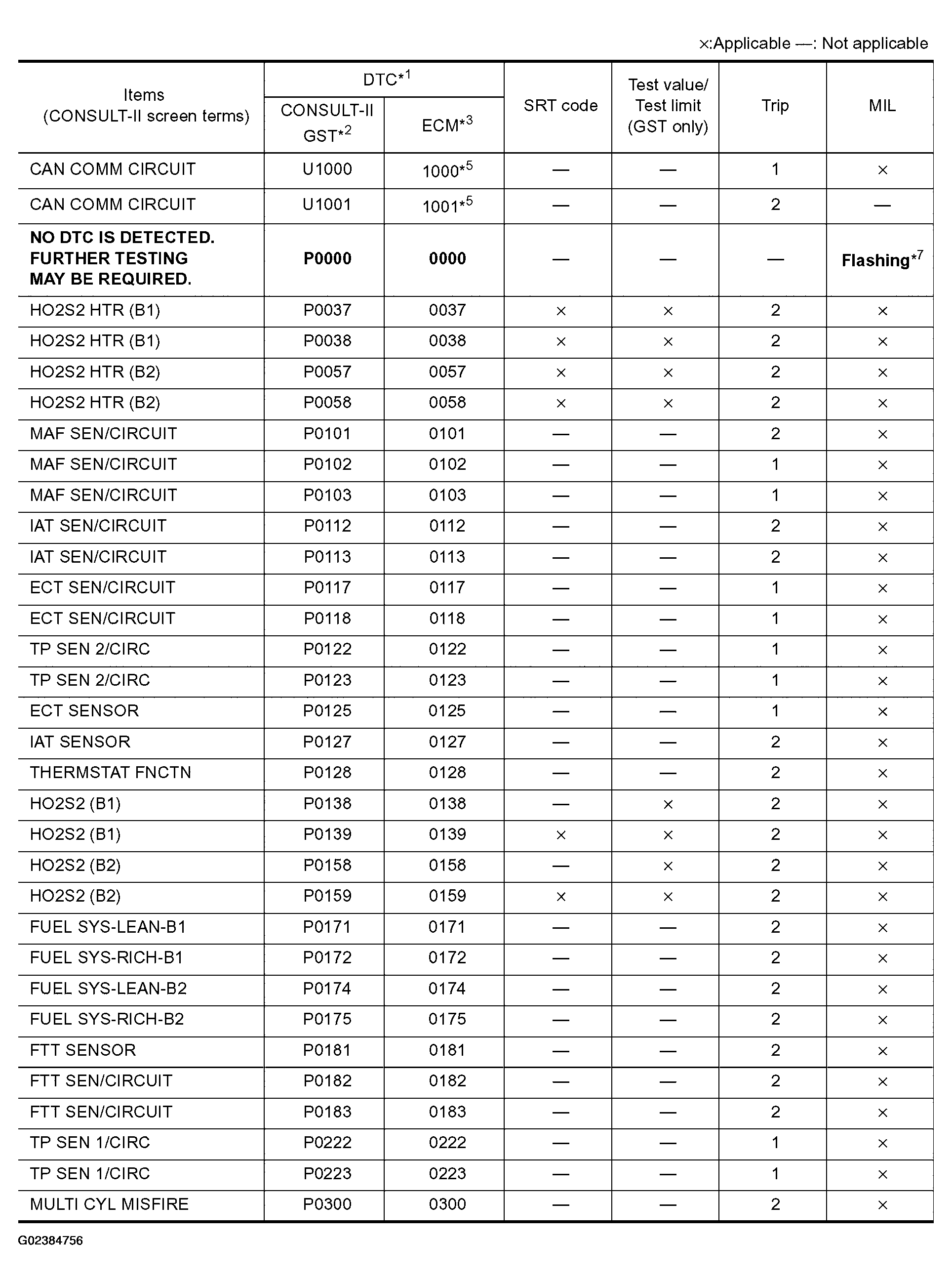

Fig 2: Emission-Related Diagnostic Information Items (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

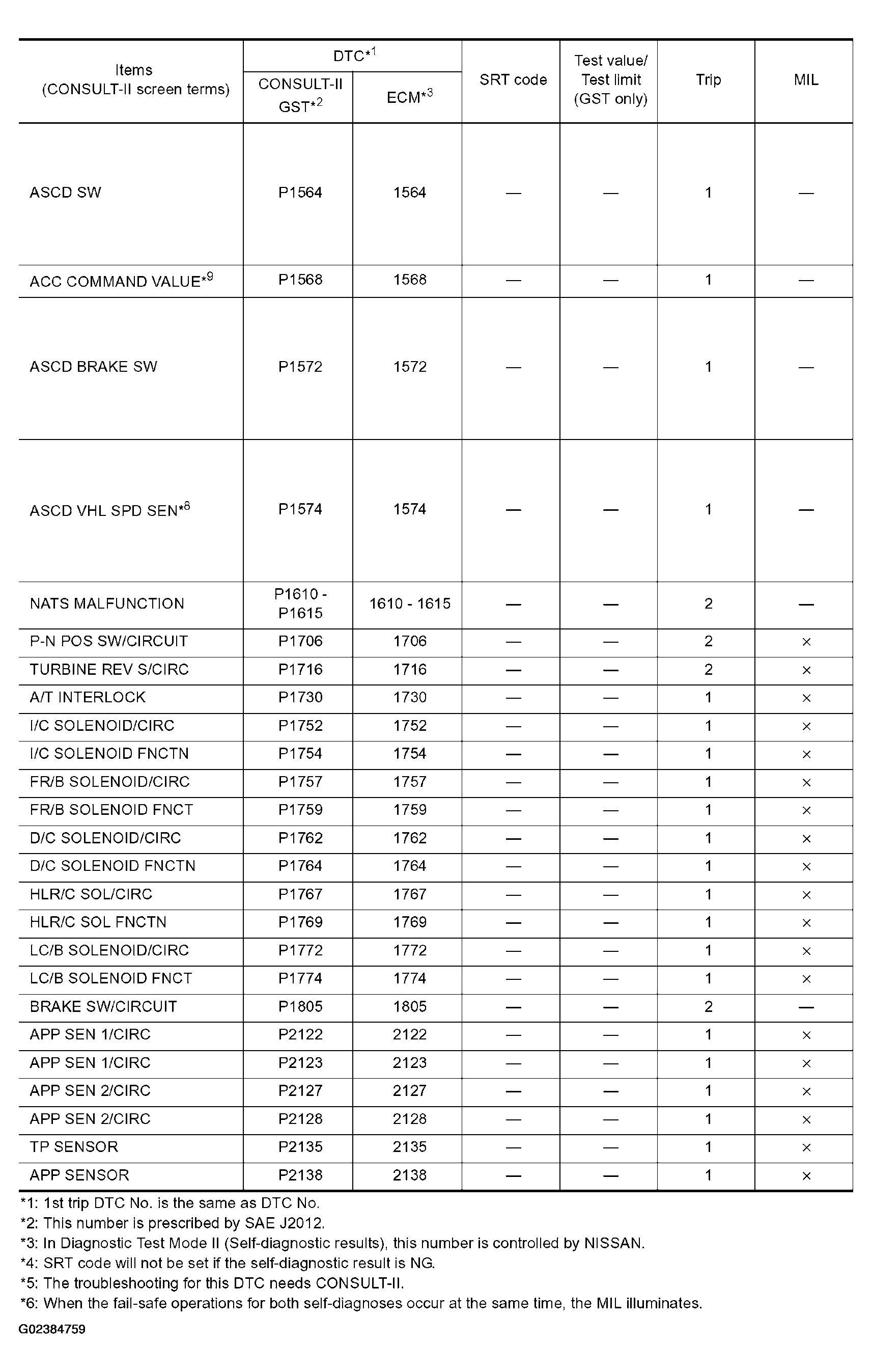

Fig 3: Emission-Related Diagnostic Information Items (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

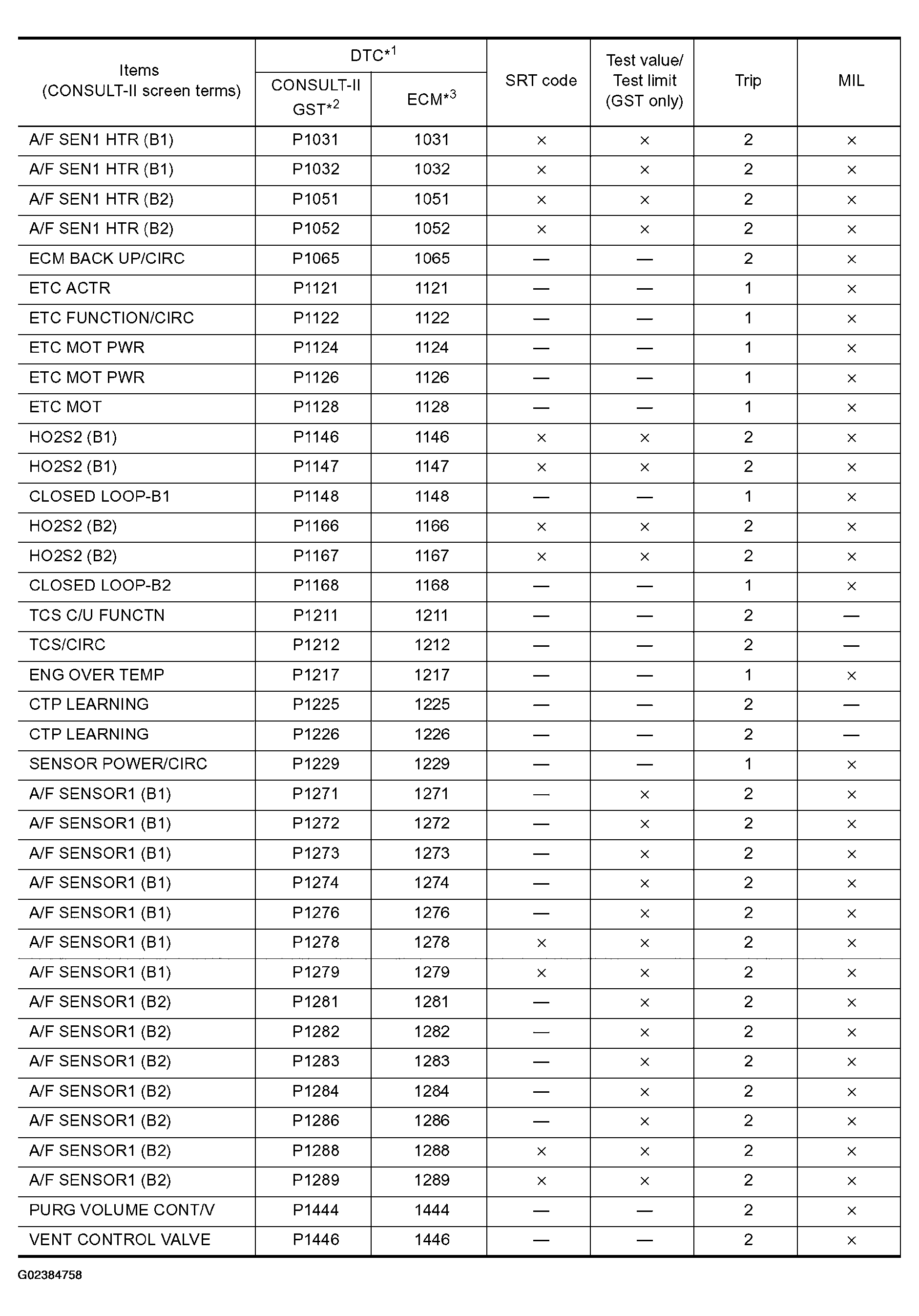

Fig 4: Emission-Related Diagnostic Information Items (4 Of 4)
