EVAP Service Port

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

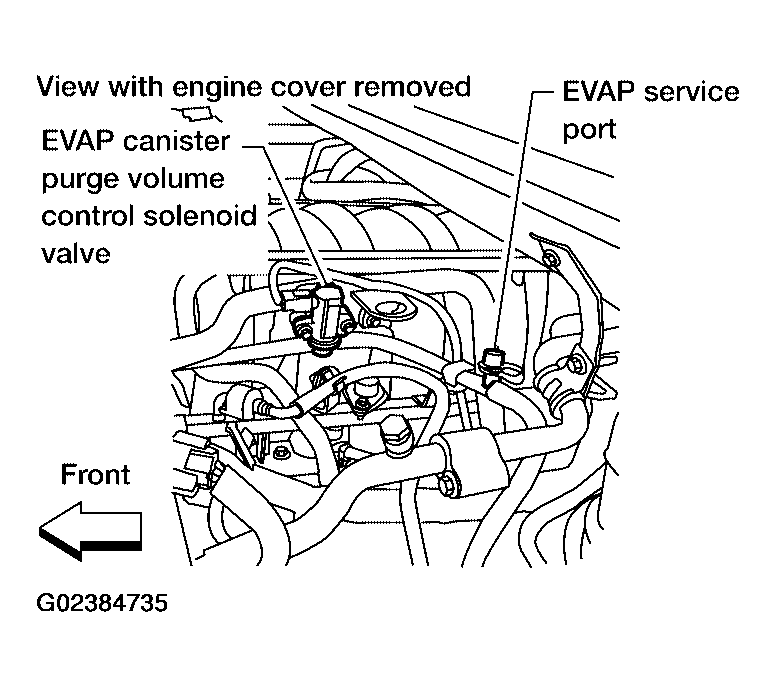

Fig 1: Checking Leakage In EVAP System
G02384735Courtesy of NISSAN MOTOR CO., U.S.A.
