With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti QX56. However, it is still accessible from the selected car via links, so may be relevant.

Start engine (VDC switch OFF).
Select "DATA MONITOR" mode with CONSULT-II.
Press MAIN switch and make sure that CRUISE lamp lights up.

Drive the vehicle for at least 5 consecutive seconds under the following conditions.

VEHICLE SPEED SPECIFICATION

VHCL SPEED SE	More than 30 km/h (19 MPH)
Selector lever	Suitable position

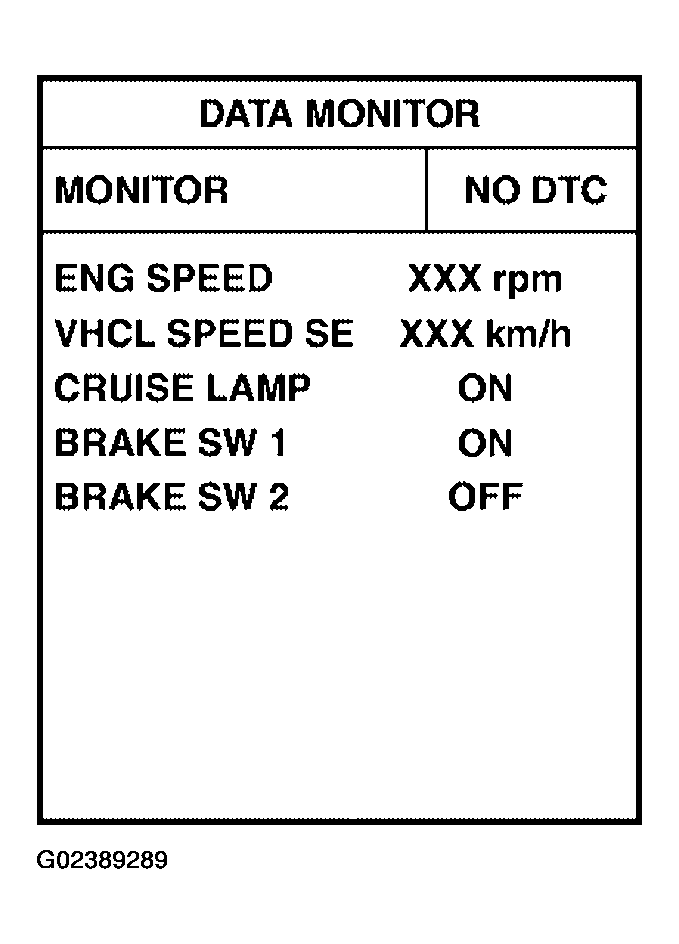

Fig 1: CONSULT-II Display - DATA MONITOR

Courtesy of NISSAN MOTOR CO., U.S.A.

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

If 1st trip DTC is not detected, go to the following step.

Drive the vehicle for at least 5 consecutive seconds under the following conditions.

VEHICLE SPEED SPECIFICATION

VHCL SPEED SE	More than 30 km/h (19 MPH)
Selector lever	Suitable position
Driving location	Depress the brake pedal for more than five seconds so as not to come off from the above-mentioned vehicle speed.

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
